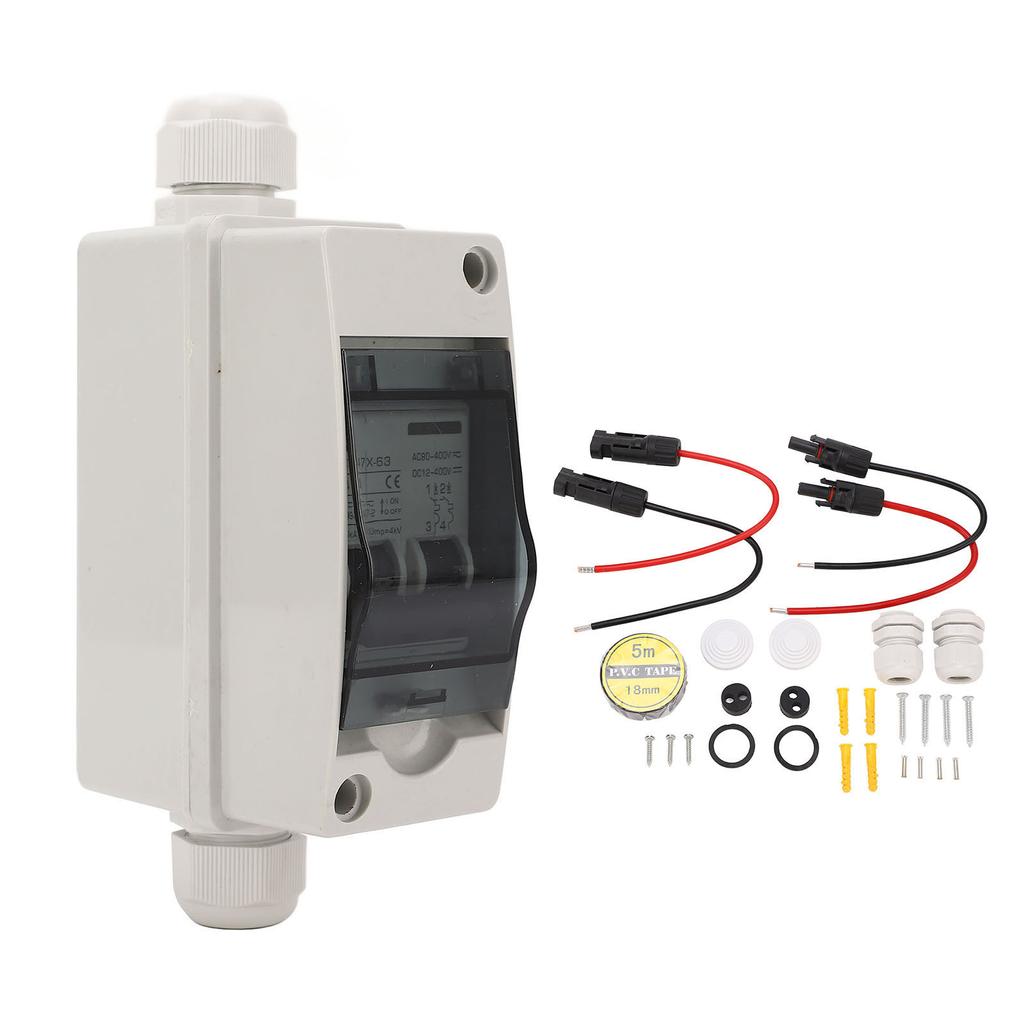

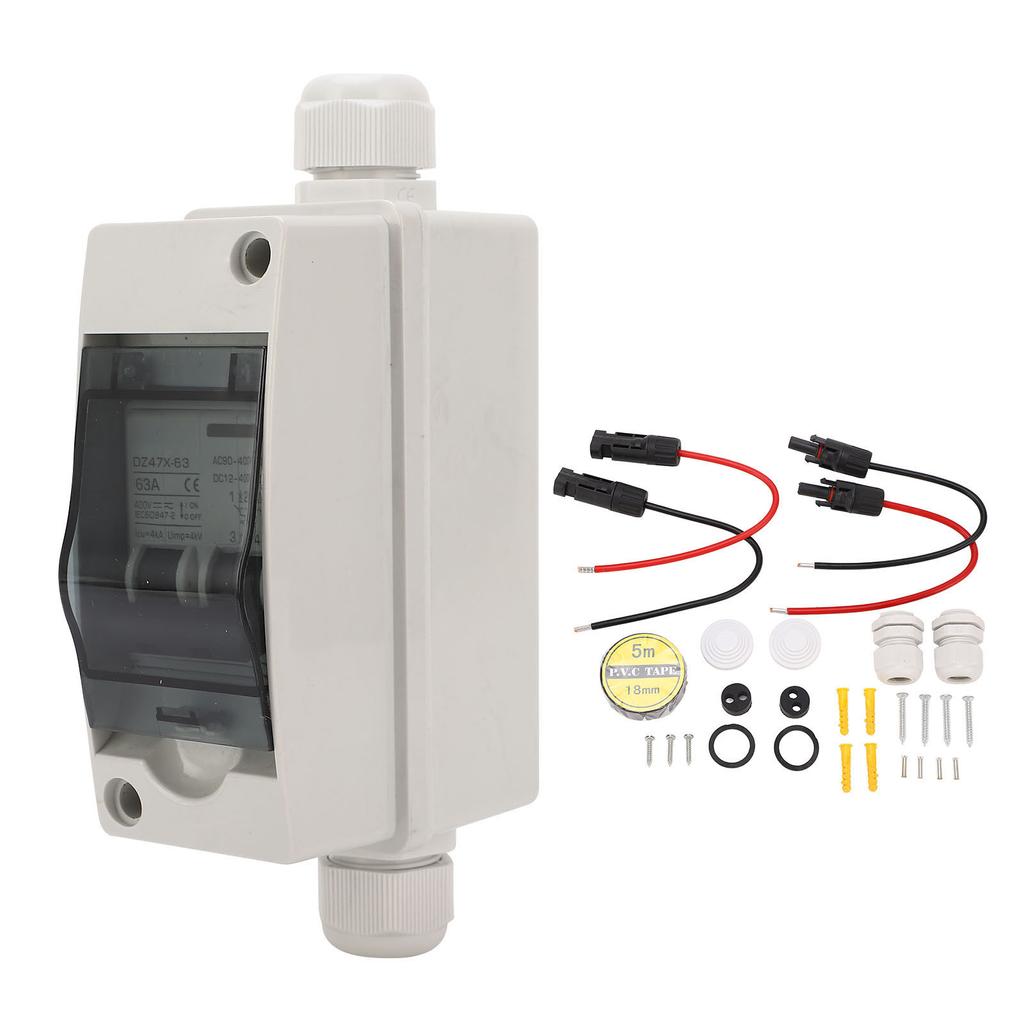

63A PV Circuit Breaker Solar Miniature Circuit Breaker with IP65 Box DC12‑400V AC90‑400V

Feature: 1. DUAL POWER SUPPLY: With a rated voltage of DC 12 to 400V AC 90 to 400V, this circuit breaker can be applied in various applications. 2. IP65 ELECTRICAL BOX: The solar disconnect switch with box is IP65 waterproof, ensuring safe outdoor use. 3. TRANSPARENT COVER: The upper cover of the box is transparent, more convenient for you to check the status of the breaker. 4. EASY CONNECTION: The kit is equipped with solar connectors, which makes the installation faster and safer, plug and play. 5. WIDE USAGE: Suitable for PV solar panel grid connected and solar off grid system, solar power generation system, PV array, RV, etc. Specification: Item Type: PV Circuit Breaker Material: Pa66 Model: DZ47X 63 Waterproof Grade: IP65 Rated Current: 63A Rated voltage: DC 12-400V AC 90-400V Icu: 4kA Uimp: 4kV Trip Curve: B (3-5 I/In) Electrical Life: 4000 times Mechanical Life: 10000 times Standard: IEC60947-2 Working Temperature: -30℃ to +70℃ Package List: 1 x PV Circuit Breaker Box (Upper and Lower Parts) 1 x Electric Tape 2 x Waterproof Cap 2 x Waterproof Connector 2 x Ring 2 x Waterproof Ring 7 x Screw 4 x Anchor 4 x Connection Terminal 4 x PV Cable
