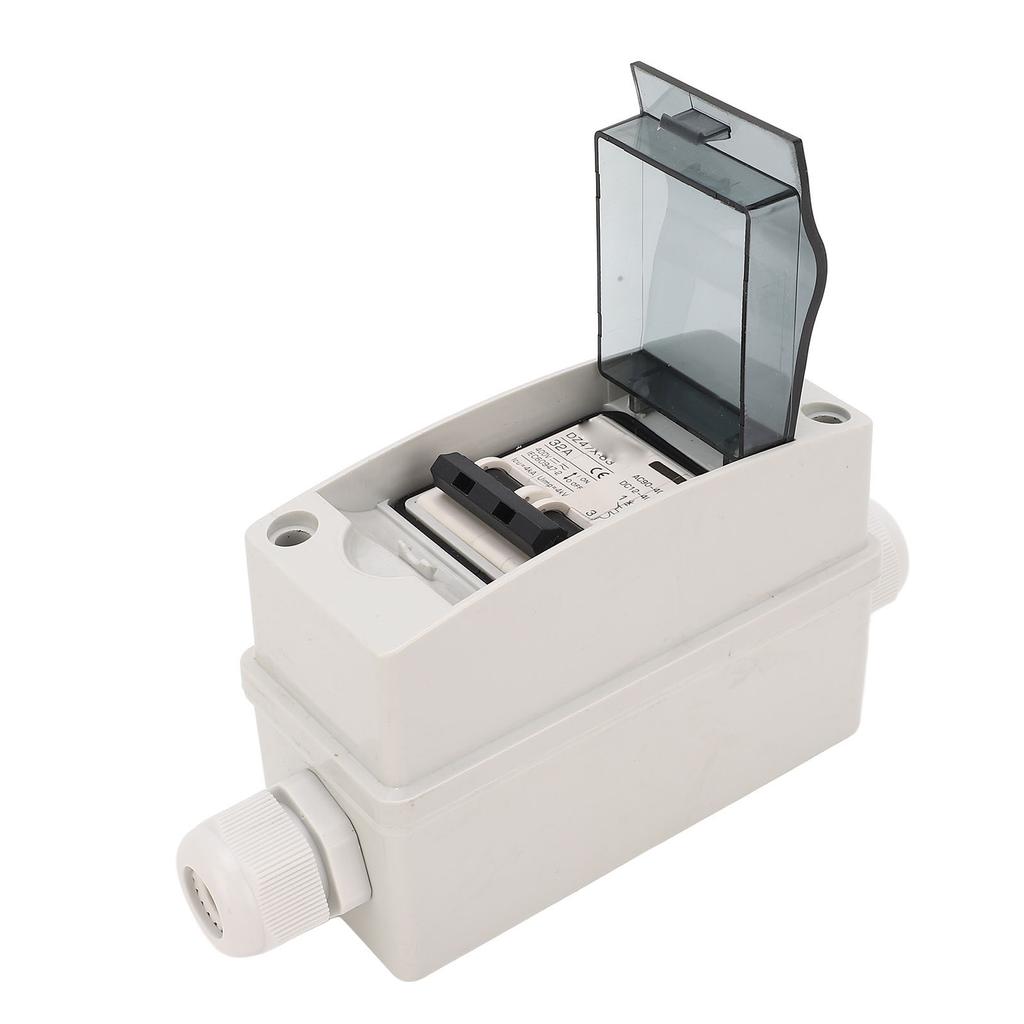

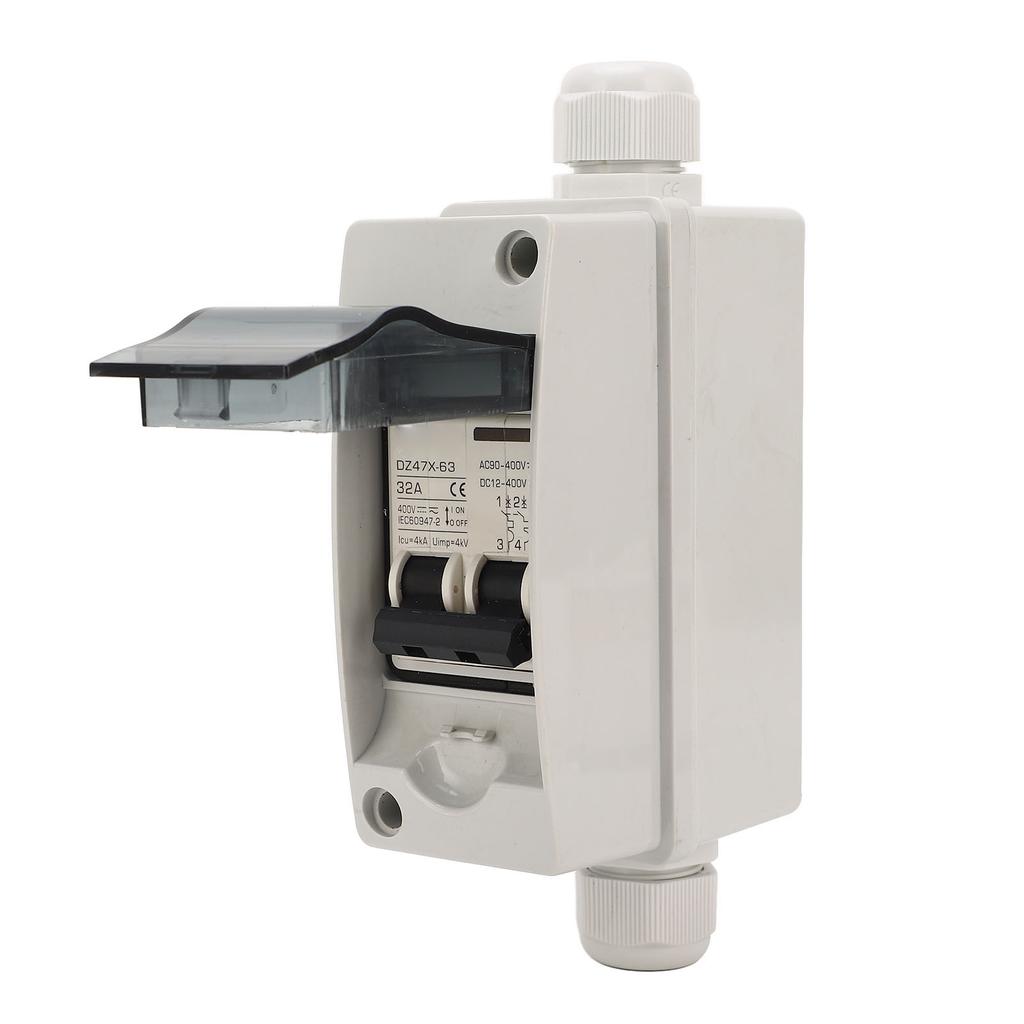

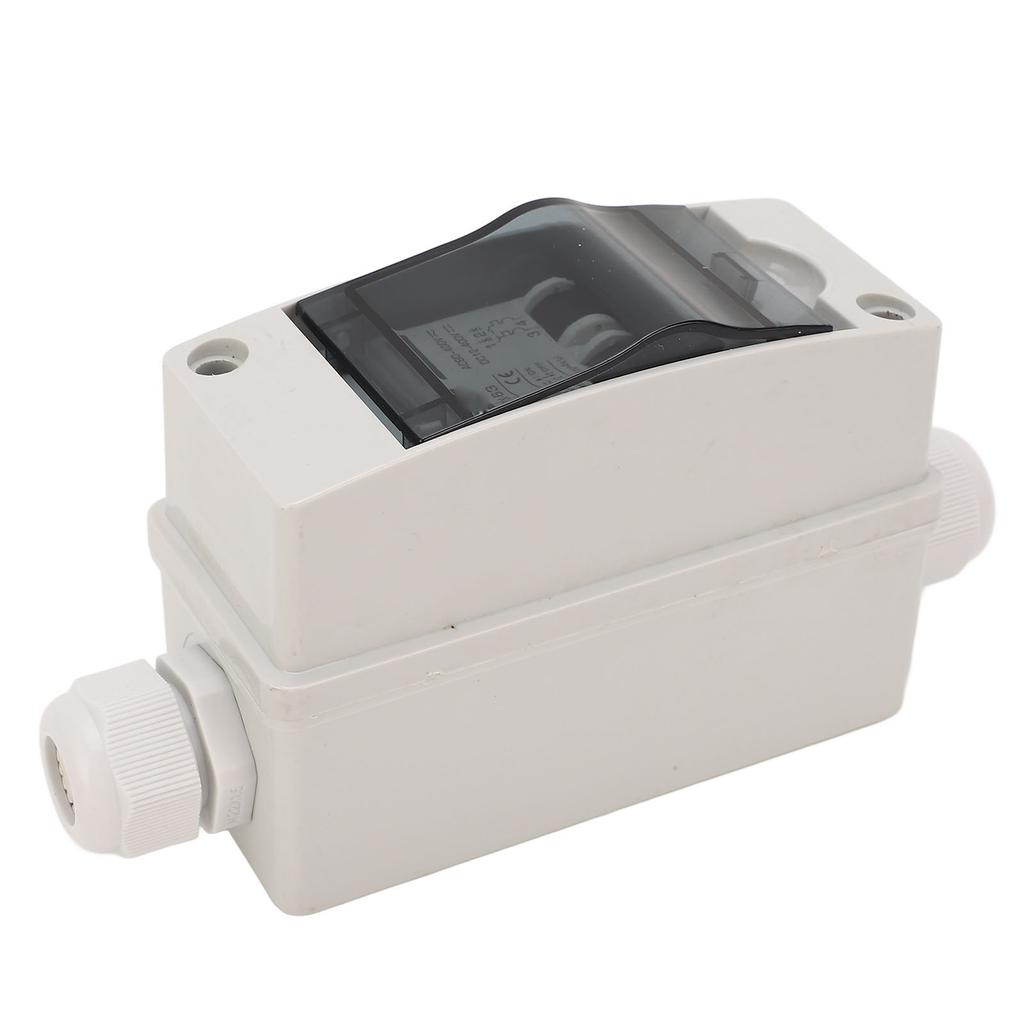

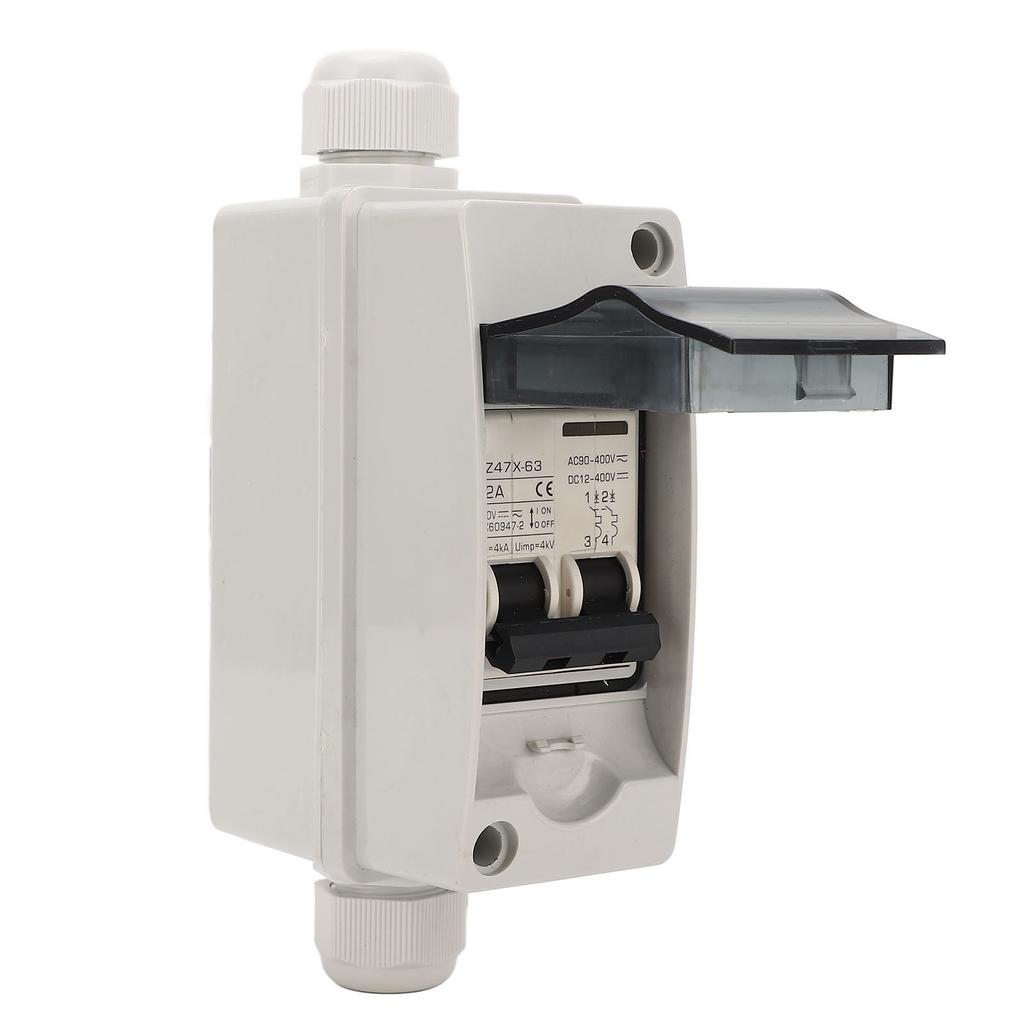

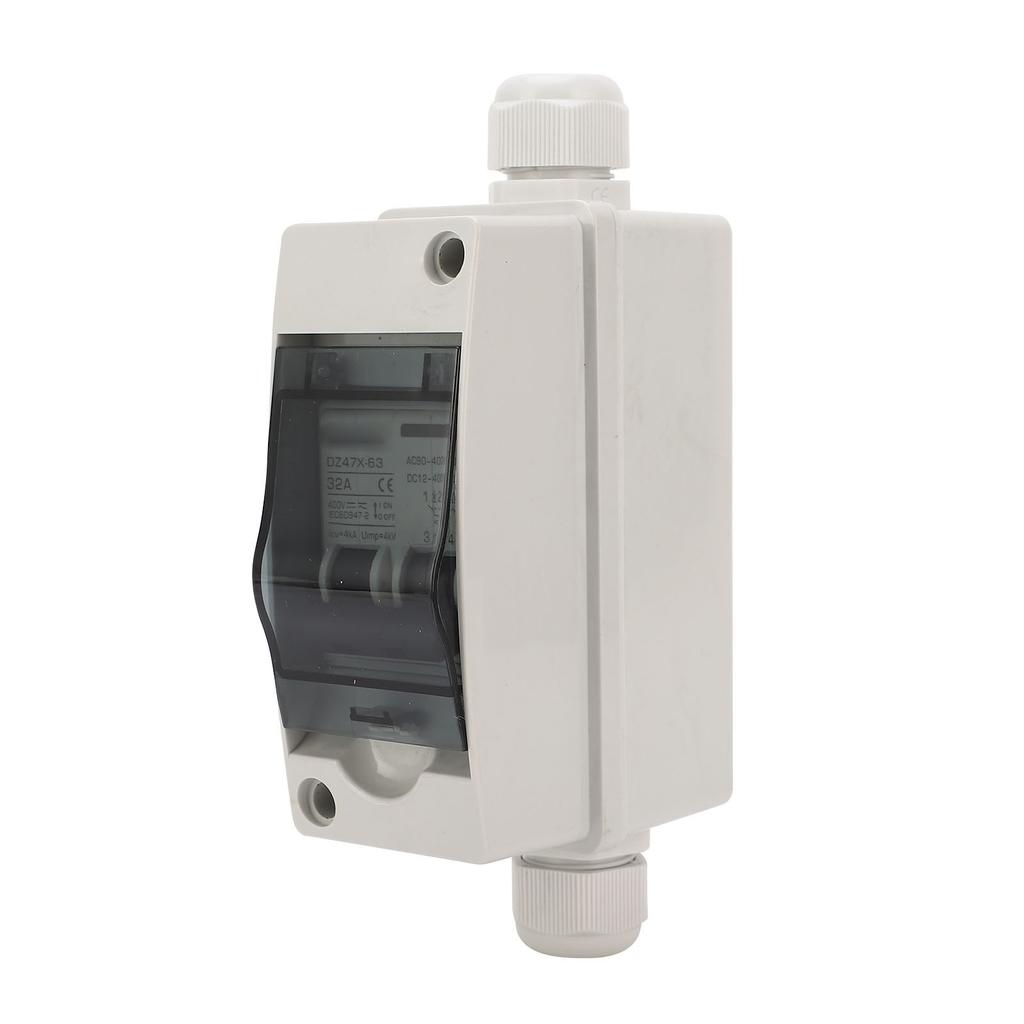

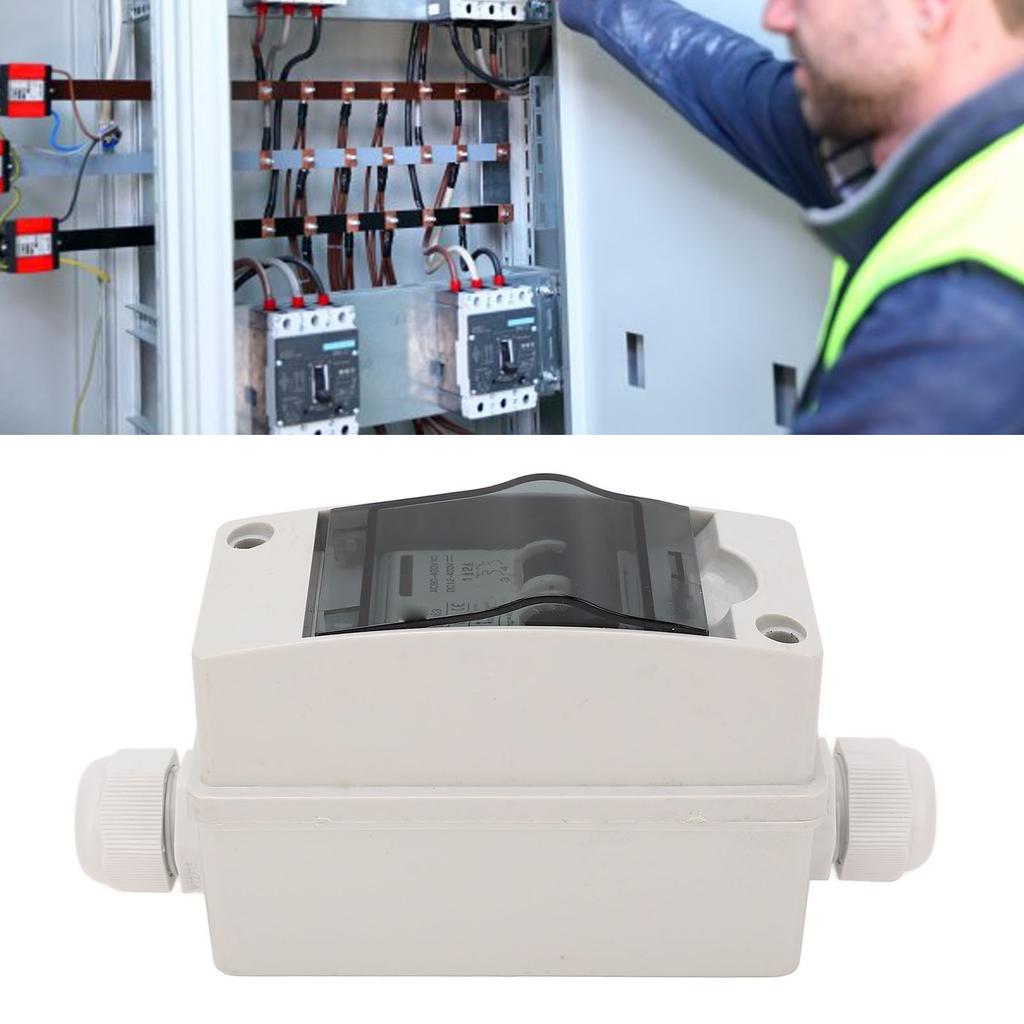

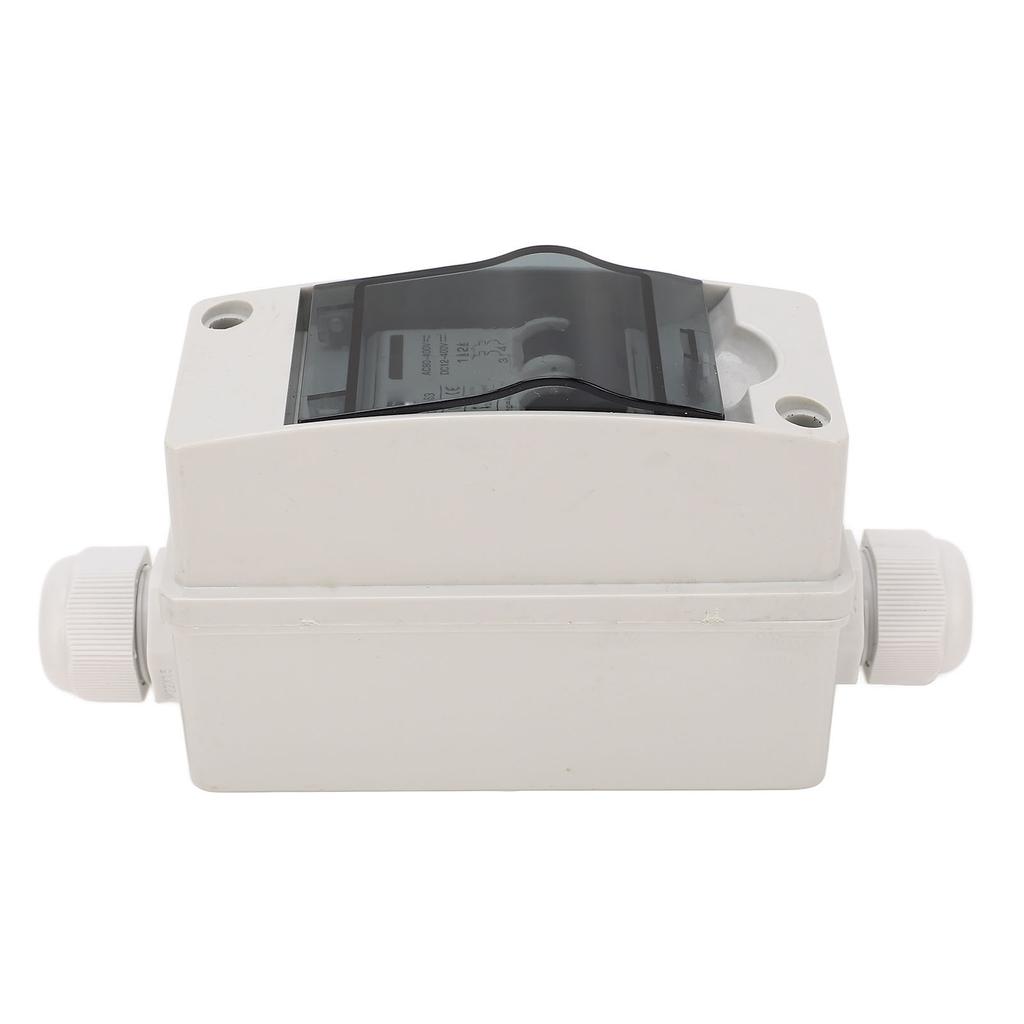

DC AC Circuit Breaker 32A Solar PV Disconnect Switch with DIN Rail Waterproof Box DC12‑400V AC90‑400

Feature: 1. WIDE VOLTAGE RANGE: 32A rated current, DC12 to 400V AC 90 to 400V rated voltage, this circuit breaker has a wide range of applications. 2. WATERPROOF BOX: This circuit breaker is designed with a waterproof box, ideal for using in outdoor environments, not afraid of rainy days. 3. TRANSPARENT COVER: The upper cover is transparent, allowing you to check the status of the circuit breaker conveniently. 4. PLUG AND PLAY: The solar disconnect switch can be connect to the solar panel quickly and safely with included solar connectors, plug and play. 5. MULTI PURPOSE: This circuit breaker is suitable for PV solar panel grid connected system and solar off grid system, solar power system, PV array, RV solar, etc. Specification: Item Type: DC Circuit Breaker Material: Pa66 Model: DZ47X 63 Waterproof Grade: IP65 Rated Current: 32A Rated voltage: DC 12-400V AC 90-400V Icu: 4kA Uimp: 4kV Trip Curve: B (3-5 I/In) Electrical Life: 4000 times Mechanical Life: 10000 times Standard: IEC60947-2 Working Temperature: -30℃ to +70℃ Package List: 1 x DC Circuit Breaker Box (Upper and Lower Parts) 1 x Electric Tape 2 x Waterproof Cap 2 x Waterproof Connector 2 x Ring 2 x Waterproof Ring 7 x Screw 4 x Anchor 4 x Connection Terminal 4 x PV Cable
