High-concerned chemical : None
Motivity Type : Other
Type : Fittings
Model Number : 220V/380V
Origin : Mainland China
Certification : CE
Feature 1 : Air Compressor Pressure Pump
Feature 2 : Air Compressor
Feature 3 : Switch Control Manifold
Feature 4 : Pressure Gauge Control Valve
Feature 5 : Pressure Pump

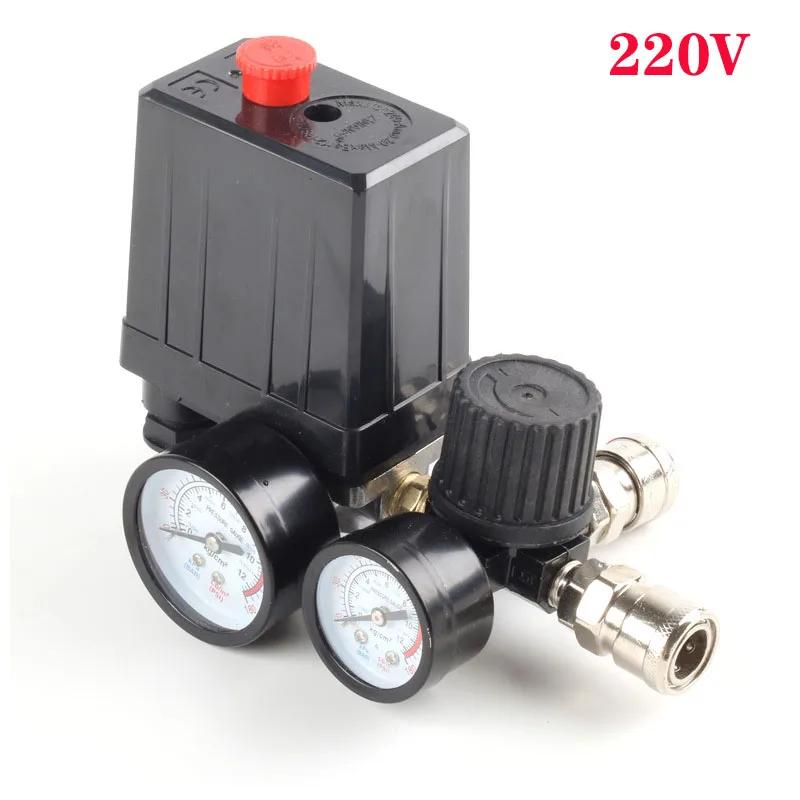

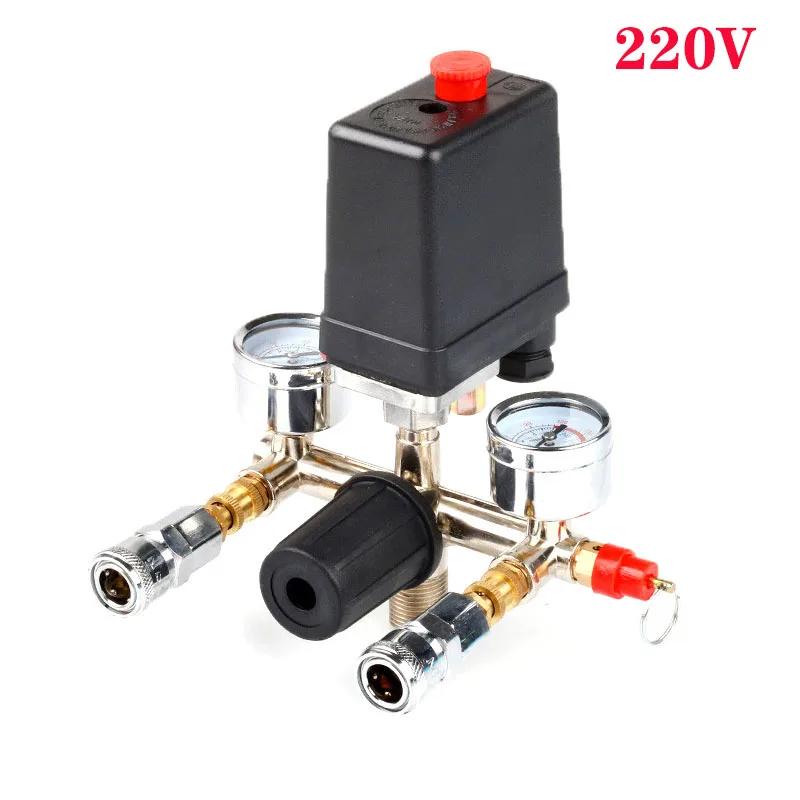

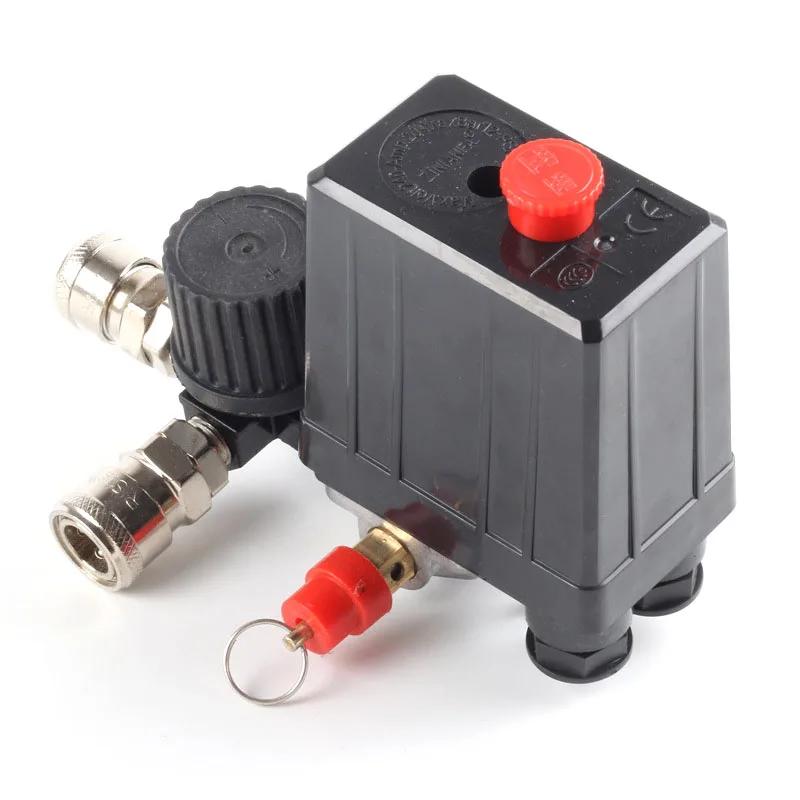

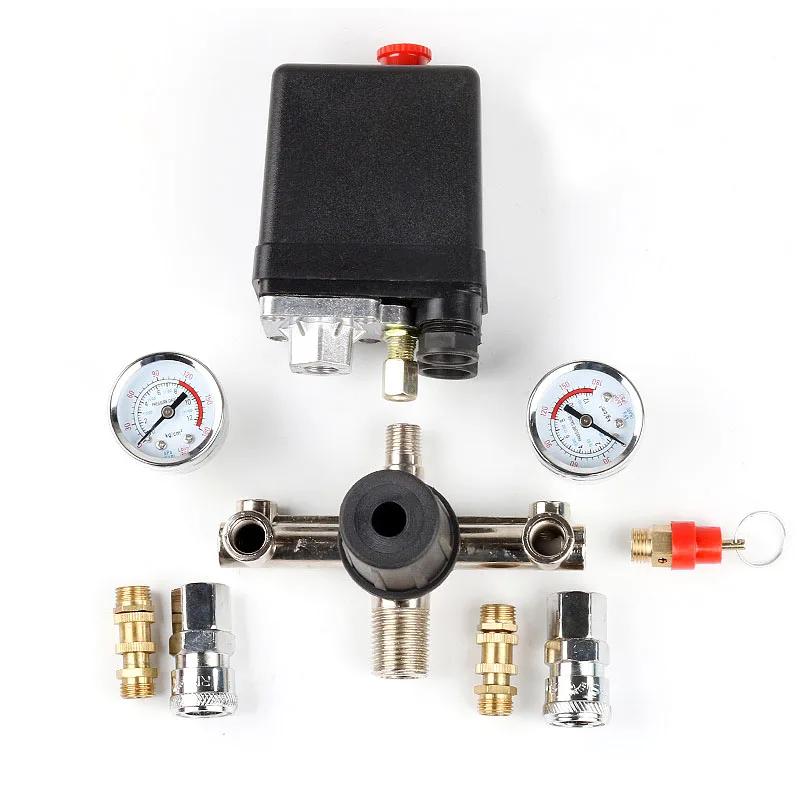

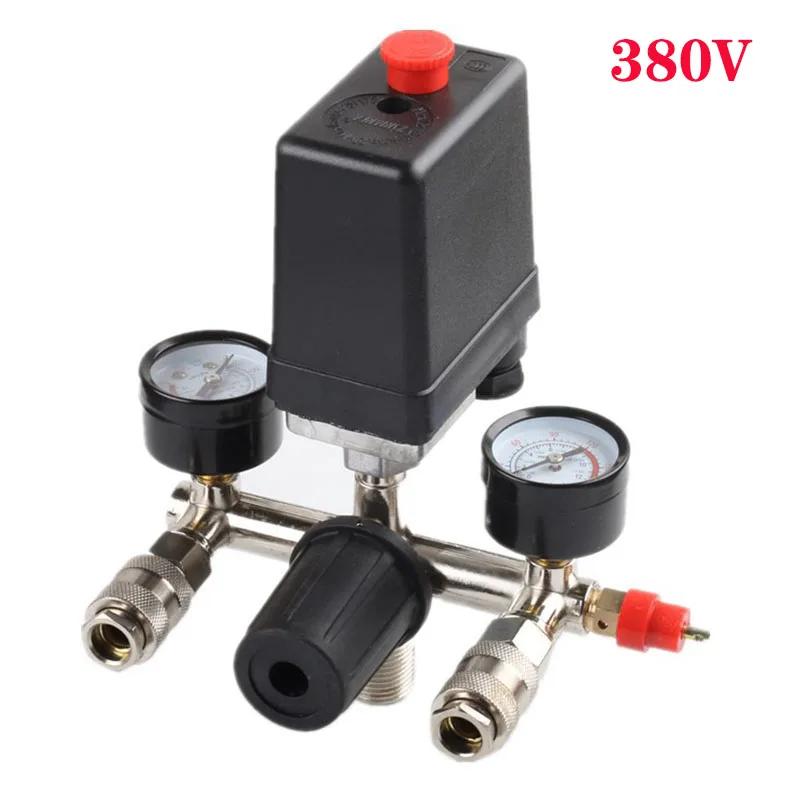

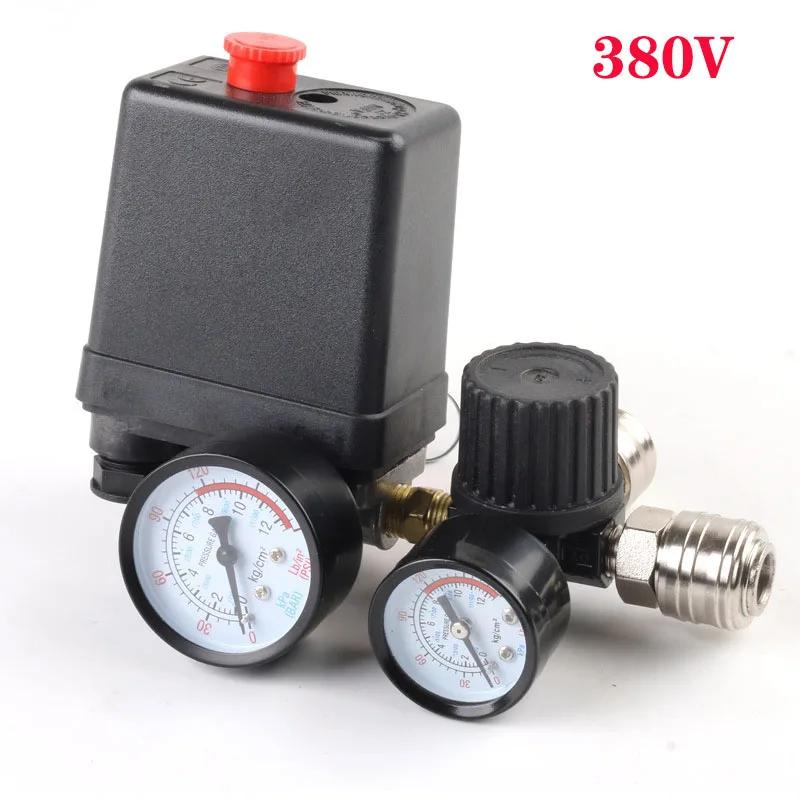

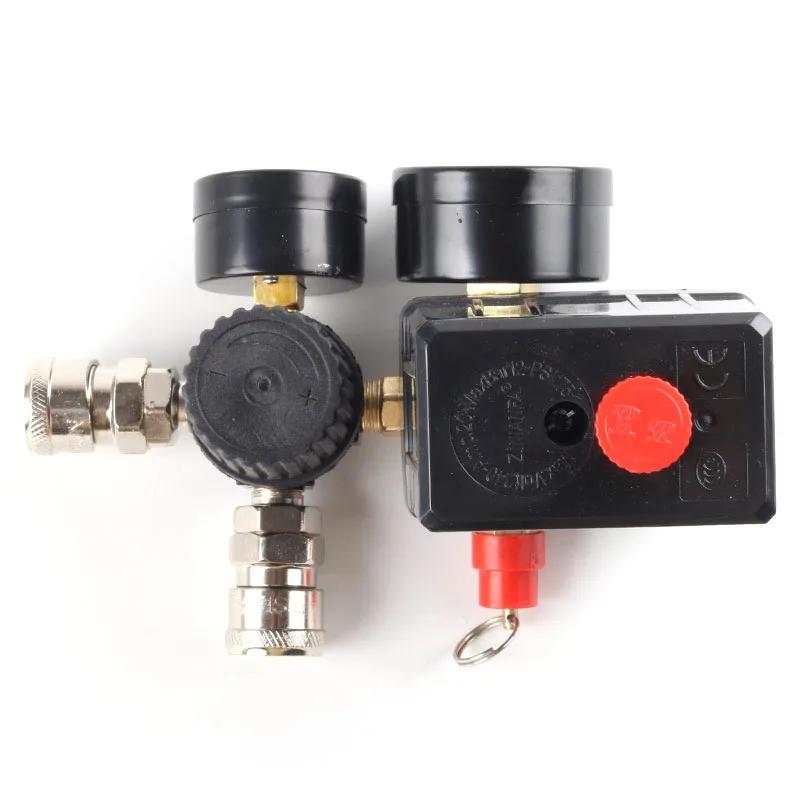

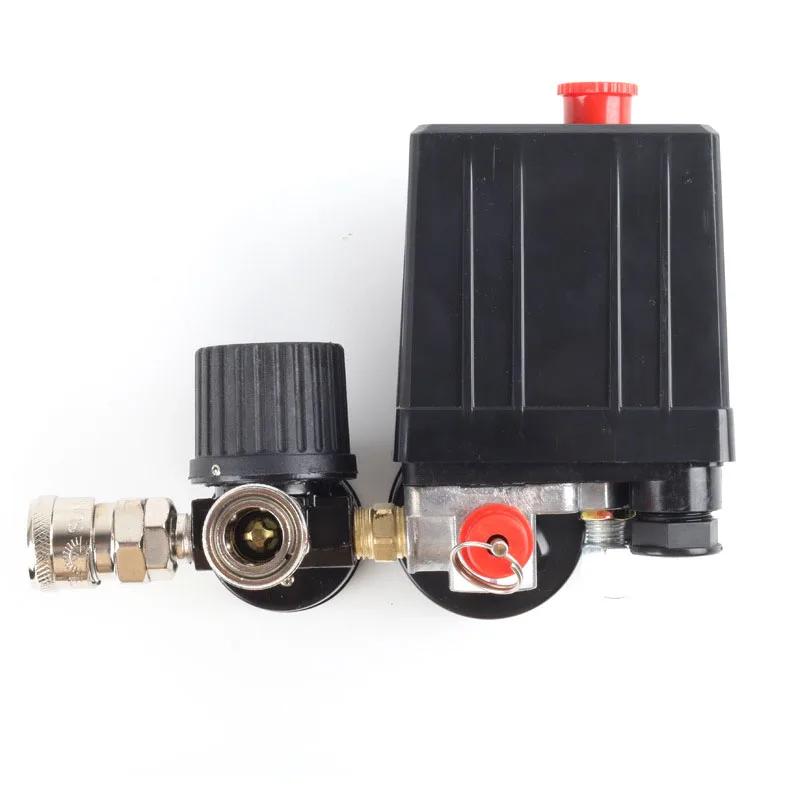

Air Compressor Pressure Switch Control Valve Regulator Gauges W/ Quick Connector
A Specifications:
Colour: As shown
Material: Plastic, Electroplating Aluminium, Iron
Voltage: 220V/380V (Optional)
Operating pressure range: 0-0.8Mpa
Maximum flow: 3000L/min
Gauges: 0-180 Psi
Pressure Switch control range: 95-125 PSI
Relief Regulator adjust Pressure Range: 30-120PSI
Inlet and Outlet Port Inner Thread: G1/4 0.4＂/11mm
Features:
1. Small size and light weight
2. Piston seal adopts V-ring, which has good sealing effect, wear resistance and stability.
3. Piston type structure and flow rate are 30% larger than traditional diaphragm type.
4. The valve body structure has overflow, and the decompression speed is fast and intuitive.
5. High accuracy of voltage regulation and sensitive response
6. The structure can install the original gas pressure gauge, the original gas vent valve, and the application is various.
7. Easy installation. Reverse, vertical and horizontal installation can be made according to customers'preferences. The appearance is atmospheric and beautiful.
8. This square pneumatic pressure regulating valve is widely used in direct-line, oil-free silencer and small belt conveyor.
9. There is a red ON/OFF switch knob,convenient design for use.
10. Auto control, Auto load/unload. Pressure lower than 90PSI, turn on the compressor. Pressure over 120PSI, turn off the compressor.
Package Included:
1 x Air Compressor Pressure Valve Switch
B Features:
- 100% Brand new.
- Durable and utility.
- With 2 Quick Connectors.
- Black ON/OFF switch knob.
- Auto control, auto load/unload.
- Easy to install and disassemble.
- Connection air reservoir fitting 1/2 thread 21mm diameter, needs you own assembly.
- Compressor switch control can automatically control the pressure of air compressor.
- If the pressure is lower than 90Psi, turn on the compressor, if the pressure is higher than 120psi, turn off the compressor.
Specifications:
Voltage: 220V/380V
Material: Metal+ Plastic
Maximum Current: 16-20A
Pressure Range: 90-120 psi
Male Thread Diameter: about 21mm (1/2" NPT)
Valve Male Thread Diameter: 13mm (1/4" NPT)
1-1/2＂ Dia Gauges: 0-180 PSI
Package included:
1x Air Compressor With Pressure Switch Control Valve
