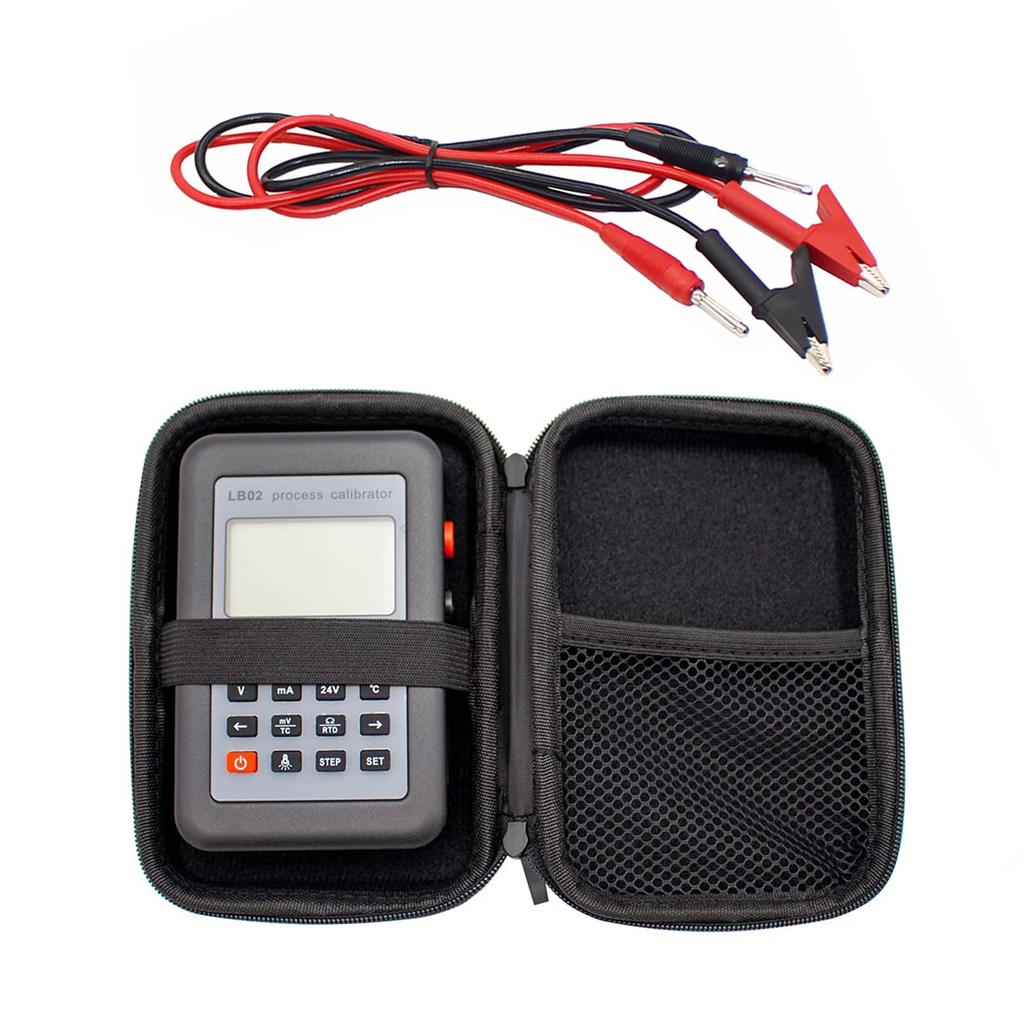

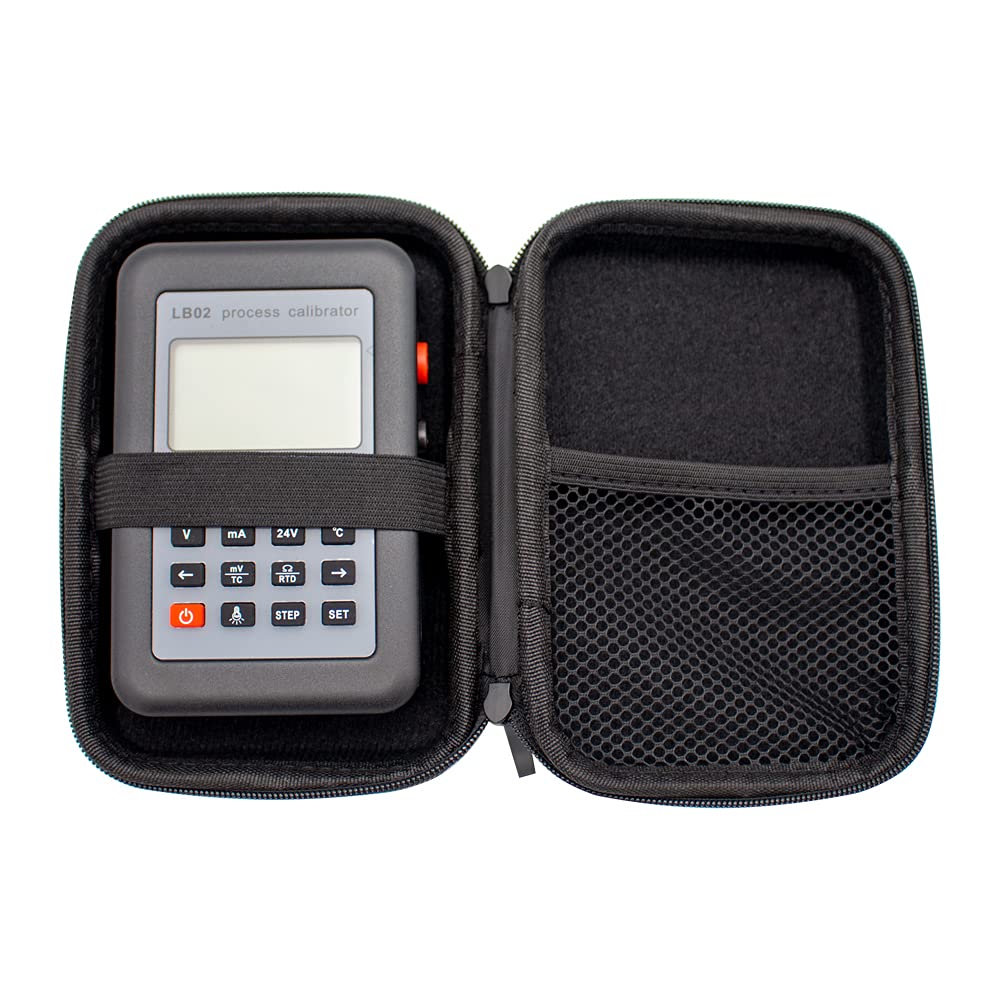

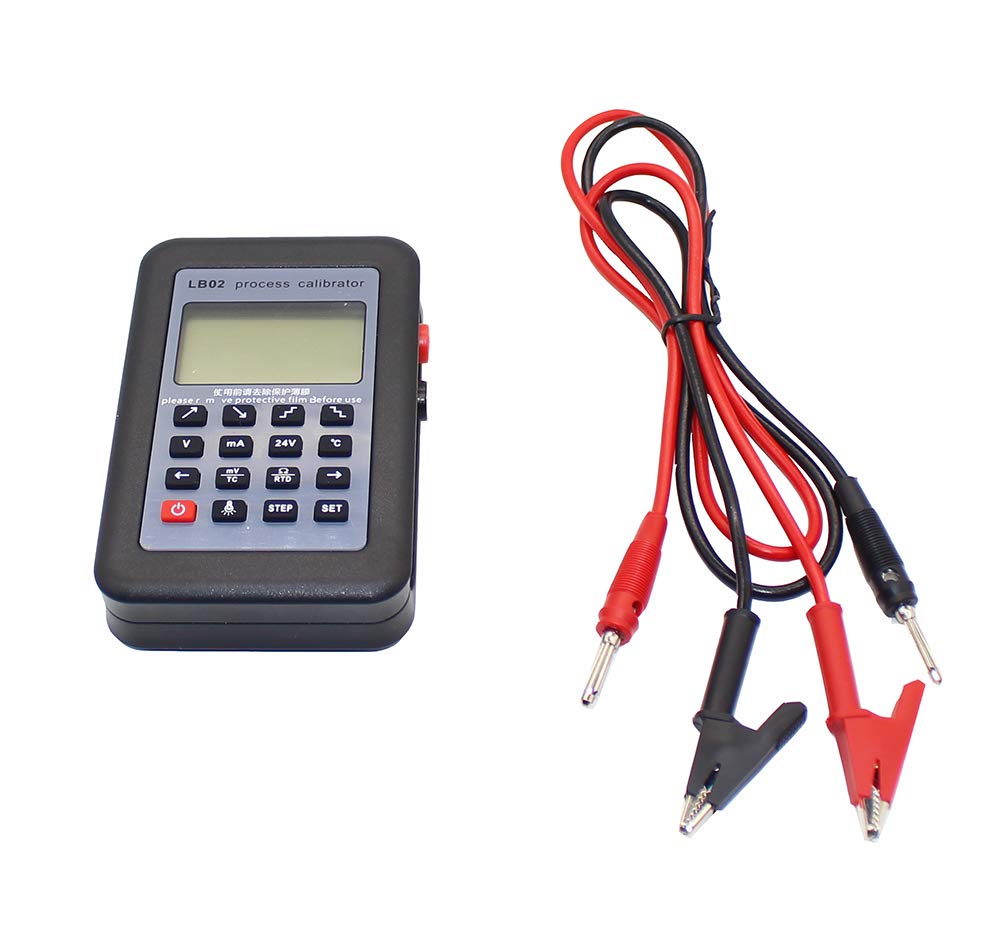

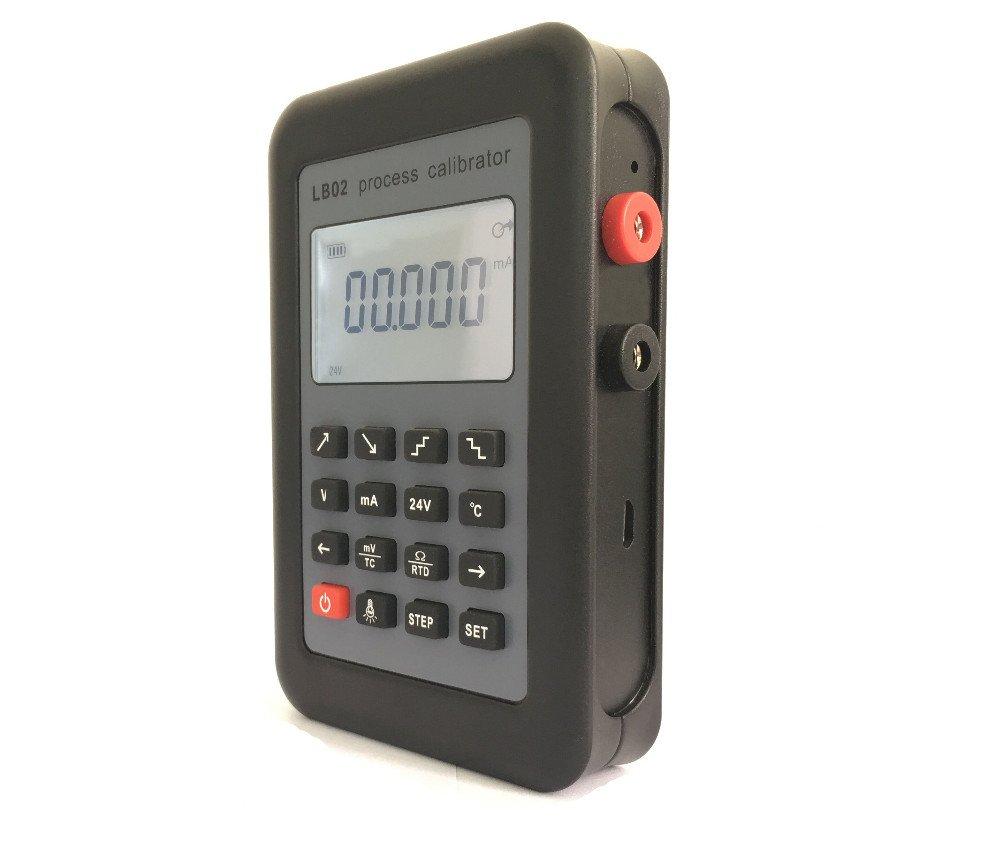

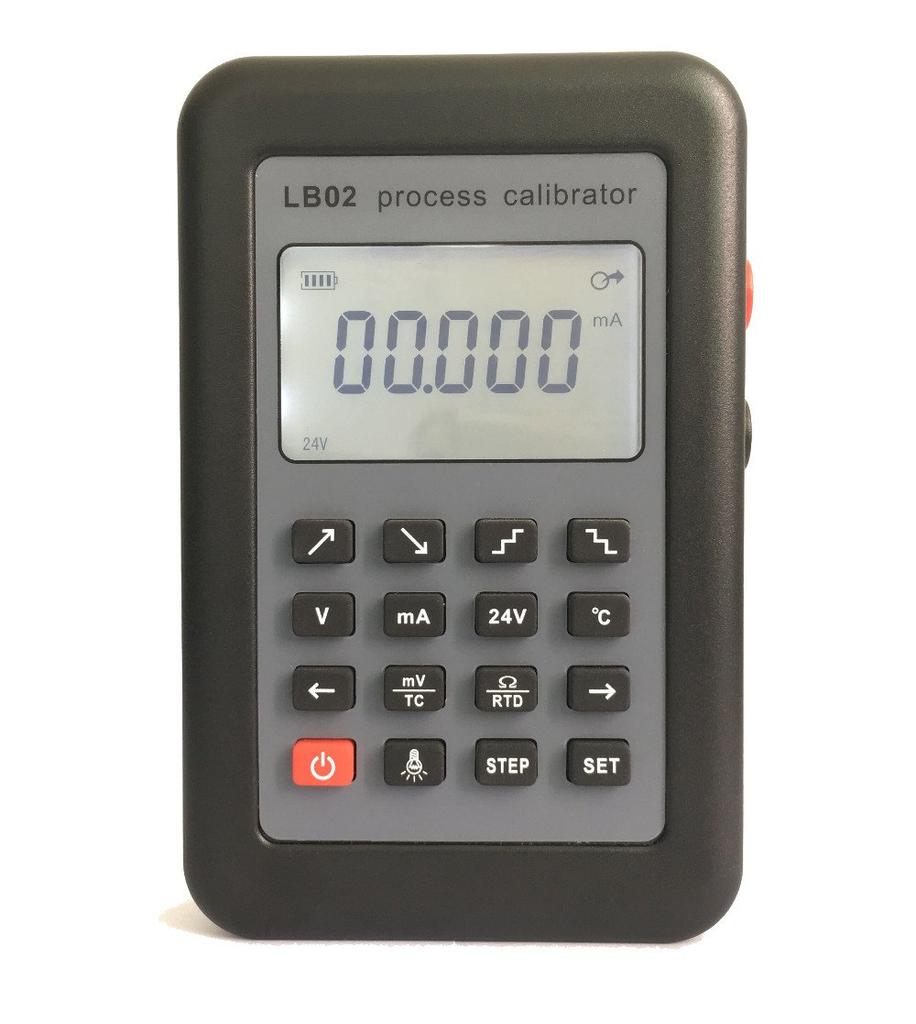

Jieoto LB02 Process Calibrator Signal Generator Source Process Calibrator with mV LCD Dual Measurement Outputs Large LCD Display Protective Case

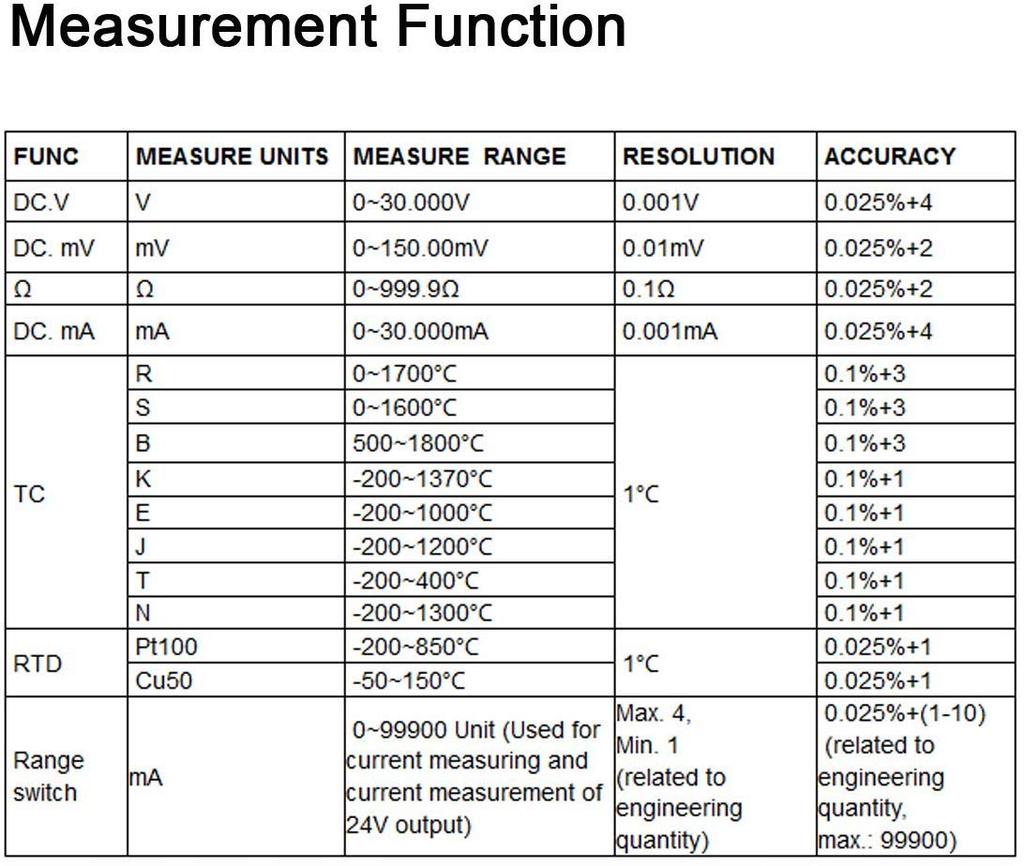

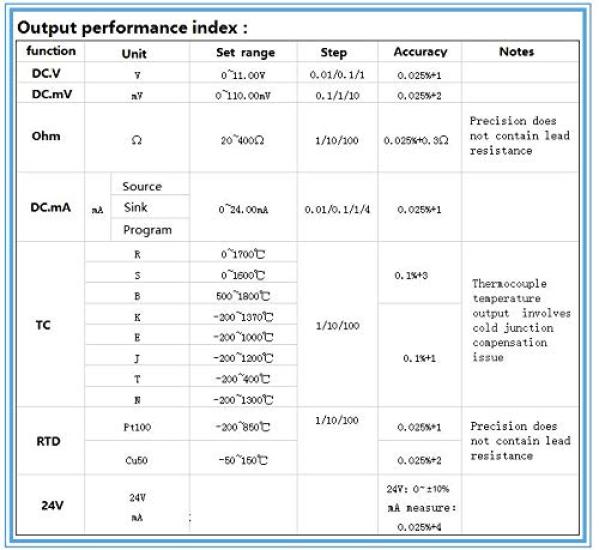

---------------------------------------------------------------------- Built-in one-time quick-blow fuse prevents damage caused by incorrect power insertion. All functions use internal electronic switches, and inputs and outputs have corresponding buttons. In addition to having the traditional signal input and output functions, as well as resistance. All levels of connector terminals use these two terminals, regardless of whether they are input or output. Sensitivity decreases due to thermal resistance and resistance to external excitation output current. LB02 Resistance Current/Voltage Meter Signal Generator, Source Process Calibrator, 4-20mA/0-10V/mV LCD Display Description: This instrument can output and measure the following signals: current, voltage, and mV; eight types of thermocouple (E, K, B, S, T, R, J, N) signals; resistance signals; and thermal resistance (Pt100, Cu50) signals. It has 14 inputs and 15 outputs, and can read analog meter signals or most quantities. V, mV, mA, and Ω inputs and outputs have corresponding buttons for direct access without key combinations. Operation is quick and easy. Small instrument with rich functionality. Features: 1. In addition to traditional signal input and output functions, it also has eight types of input and output signals: resistance, Pt100, Cu50 RTD, and thermocouple, making it extremely powerful. 2. All functions use internal electronic switches, which few other brands on the market have improved on for ease of use. 3. Two connector terminals, no matter the input and output terminals of these two use, at any level, you don't need to worry about damaging the plug lead. 4. V, mV, mA, Ω input and output have corresponding buttons, can be called directly without selecting the menu in advance, thermocouple, RTD input and output, only after entering the function by pressing the left or right arrow of the corresponding mV or Ω file, the operation is very simple, no key combination, quick and easy to operate 5. Segment LCD clear display, can be used as a multimeter or calculator. Large display area, 49*29mm visual area. Low power consumption, maximum power consumption less than 0.3mA. When the backlight is open, it is less than 10mA. Includes: 1 set of LB02 Resistance Current Voltage Meter Signal Generator
