Feature:
1. Ultrasound Probe: Using ultrasonic dual element probe, with high sensitivity, can effectively reduce clutter, the probe shell is made of stainless steel, sturdy and durable.
2. Timing Chip: Equipped with a professional timing chip, it can accurately calculate the propagation time of the ultrasonic pulse in the tested material.
3. Automatic Operation: Automatically switch the gain and adjust the signal amplification, and can automatically select the appropriate gain according to the material type and thickness.
4. 9 Sets Data Records: Can automatically record 9 sets of test data, and you can view the maximum value, minimum value and average value, which is efficient and reliable.
5. 2 Measurement Modes: In the QC mode, the instrument can automatically judge the thickness of the material to be tested. In the statistics mode, the instrument automatically counts the latest 9 sets of data.
6. Wide Application: Widely used for thickness measurement of ship hulls, piping, pressure vessels and structural steel to help determine if they need repair or replacement.
Specification:

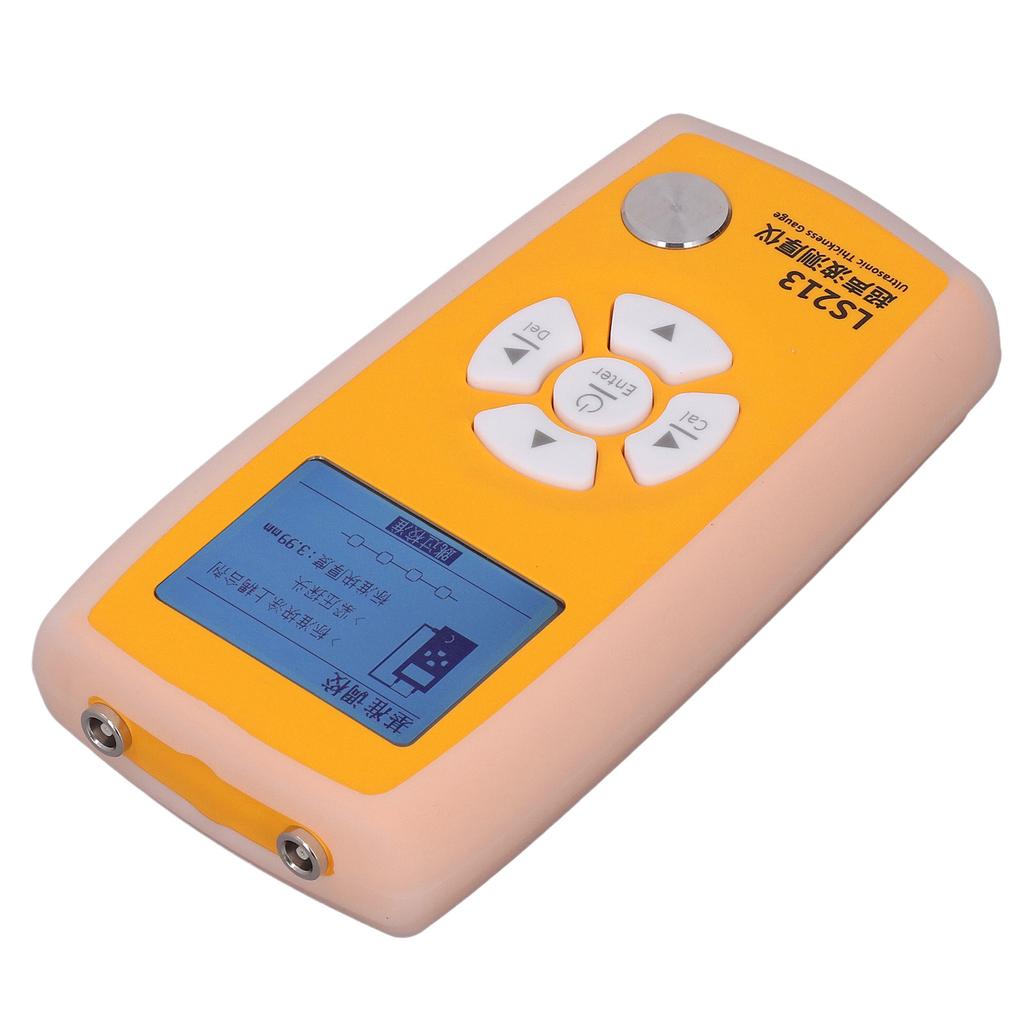

Item Type: Ultrasonic Thickness Gauge
Material: ABS, stainless steel, aluminum
Measuring Range: Approx. 0.8350mm 0.0313.8in
Measured Value: 10100mm: 0.01mm, 100350mm: 0.1mm
Accuracy: 0.810mm: +0.05mm, 10350mm: +0.5percent reading
Sound Speed Range: 10009999ms
Probe: 5MHz dual element probe
Display: 240 x 160 dot array LCD
Unit: Mm and inch
Power Supply: 2 x 1.5V AAA alkaline battery (battery not included)
Host Size: Approx. 142 x 72 x 28mm 5.6 x 2.8 x 1.1in
Operating Temperature Range: 1060 celsius , 085percent RH (non condensing)
Storage Temperature Range: 1060 celsius , 085percent RH (non condensing)
.
Package List:
1 x Thickness Gauge1 x Couplant1 x Test Head1 x User Manual
Note:
Avoid irreversible damage caused by strong bumps and affect the measurement accuracy.Ultrasound Probe: Using ultrasonic dual element probe, with high sensitivity, can effectively reduce clutter, the probe shell is made of stainless steel, sturdy and durable.
Timing Chip: Equipped with a professional timing chip, it can accurately calculate the propagation time of the ultrasonic pulse in the tested material.
Automatic Operation: Automatically switch the gain and adjust the signal amplification, and can automatically select the appropriate gain according to the material type and thickness.
9 Sets Data Records: Can automatically record 9 sets of test data, and you can view the maximum value, minimum value and average value, which is efficient and reliable.
2 Measurement Modes: In the QC mode, the instrument can automatically judge the thickness of the material to be tested. In the statistics mode, the instrument automatically counts the latest 9 sets of data.
