Features:
adopts high performance ASMedia ASM2824 chipset, it is a low latency, low cost and low power consumption
Automatically detect channel configuration at startup-
Support L1- sub-state deep power- saving mode-;Support wakeup- function in -S3/-S4
Hot-swappable, plug-and-play design and wide temperature range-
Supports 4-port x4-lane M.2 Key-M NVMe SSD devices for M.2 SSD module- size: 2230, 2242, 2260, 2280.
Specifications:
Chipset: ASMedia-/ASM2824
Bus type: PCIe3.0X16
Media Interface: 4 x M.2 M-KEY NVMe SSD
Module-size: M.2 Key-M NVMe SSD devices supporting 2230, 2242, 2260, 2280
Compliant with PCI-Express Specification Revision-v3.0
Backward compatible with-PCIe2.0 and PCIe1.0
Support for NVM-Express (NVMe), M.2 Specification Revision 0.9
Supports quad-port M.2 Key-M NVMe SSD devices
Support M.2 SSD module- size: 2230, 2242, 2260, 2280
Supports M.2 "M" keys and "B+M" keys via PCIe protocol
Operating temperature range: 0~85C
System requirements: Win 7/ Win 8/ Win 8.1/ Win 10 32 or 64 bit, Linux- kernel 3.17 or higher-
One available PCI-Express X16 slot
Material: PCB-card
Color: Green + Black
Note:
Due to the different monitor- and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation- due to manual measurement.

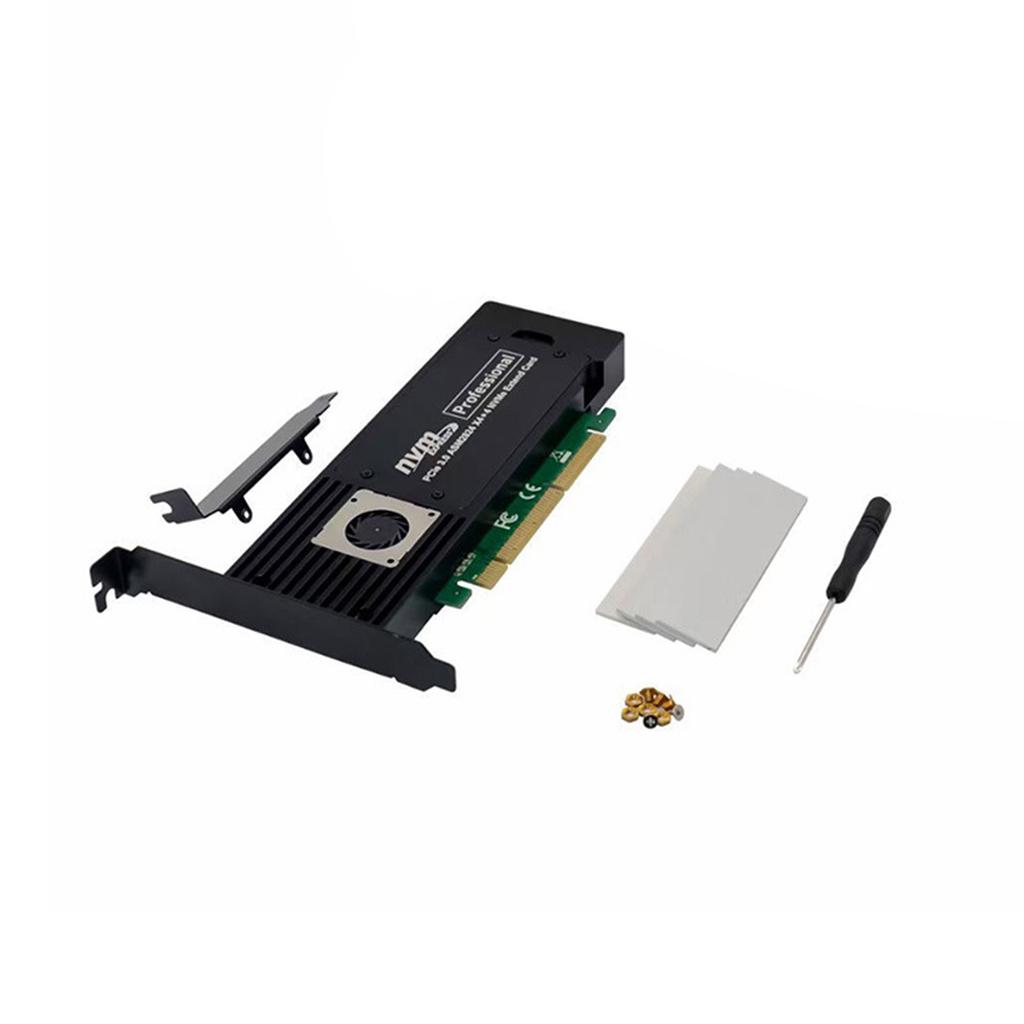

Package includes:
1 x Expansion card
1 x Bracket (Random color)
4 x Silicone Pad
4 xpair Screw
1 x Screwdriver
