SCULPFUN S30 Pro Max 20W Laser Engraver Cutter, Automatic Air-assist, 0.08x0.1mm Laser Focus 32-bit Motherboard, 410x400

SCULPFUN S30 Pro Max 20W Laser Engraver Cutter, Automatic Air-assist, 0.08x0.1mm Laser Focus 32-bit Motherboard, 410x400

Highlights

Automatically Controlled Air Assist System

The S30 series is equipped with an air-assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

Built-in High-Pressure Air Assist Nozzle

S30 series is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate 30L/min high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist.

Ultra-thin 20W Laser

Adopting ultra-thin laser shaping technology, the laser focus of the S30 series is as thin as hairs and very powerful for engraving or cutting. The S30 Pro Max 20W pursues the ultimate cutting speed, suitable for professionals, shops, or factories.

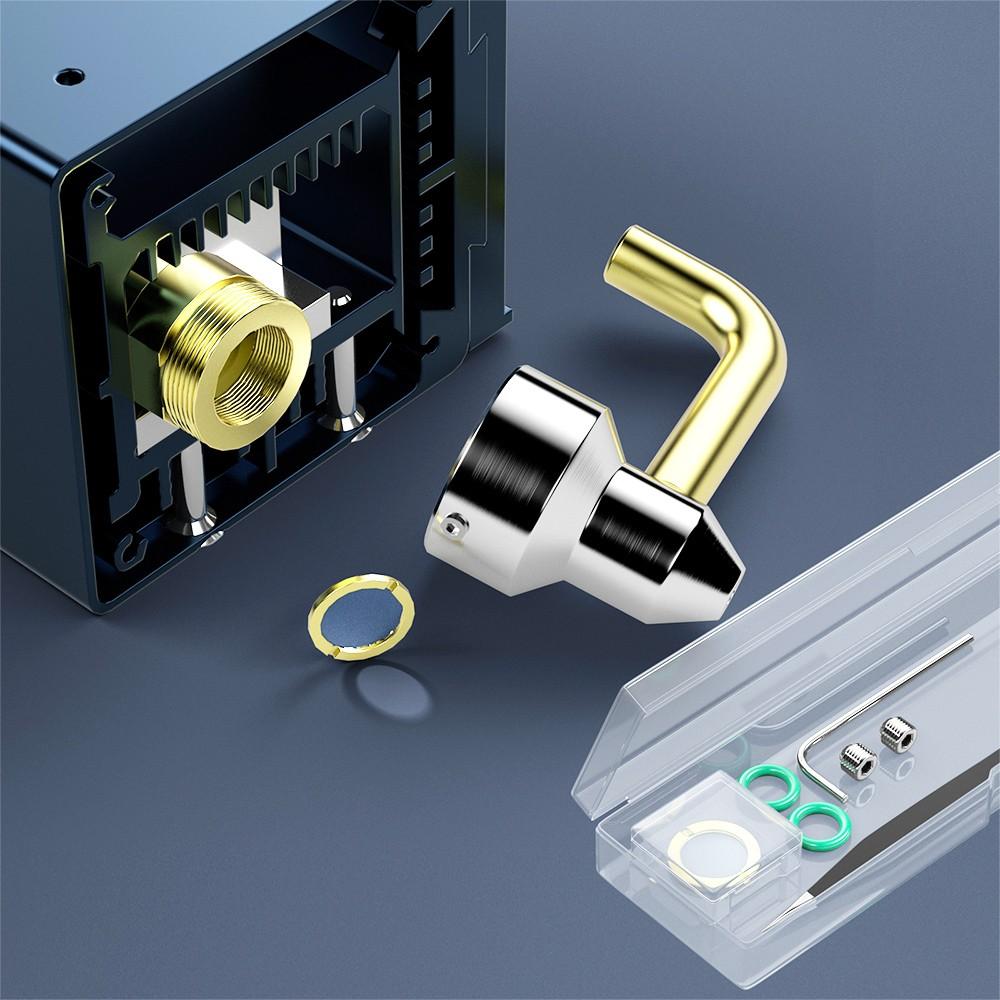

Replaceable Protective Lens

S30 series laser adopts an innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power.

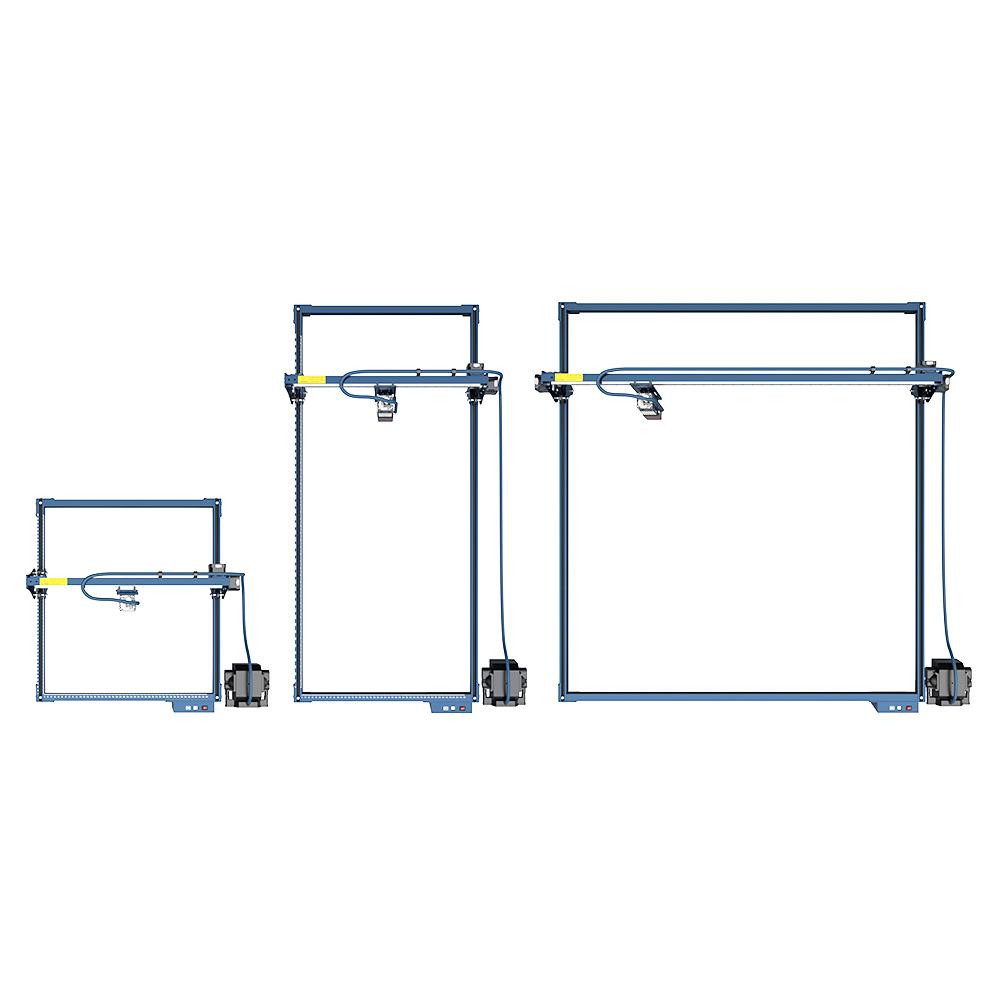

Expandable Engraving Area

The original engraving area is about 410x400mm, while it features XY-axis expandable design, so you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade up to 935x905mm engraving area, which can help you better handle large area engraving or cutting work.

Upgraded 32-bit Air-assist Motherboard

The latest 32-bit motherboard supports automatic air-assist control and reserves Bluetooth, and SD card offline printing function. (Upgrade Kit sold separately)

Industrial-grade Cutting Accuracy

Extremely solid and high-precision linear slide rail X-axis make it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.

Sturdy and Durable Aluminum Alloy Frame

Made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.

Safety Design

The presented A4 size steel pad can well protect the table from laser damage. There is an eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.

Right-angle Measuring Ruler

There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object.

Specification

Brand: SCULPFUN Type: Laser Engraving Machine Model: S30 Pro Max 20W Color: Blue

Laser Information: Diode Laser Output Power: 20W (note: that this is light energy, not electrical energy) Laser Focus: 0.08x0.1mm Laser Wavelength: 455±5nm Focusing Method: fixed focus column + sliding device Laser Protection Cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles

Machine Information: Engraving Accuracy: 0.005mm Engraving Area Size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm Machine Power: about 60W

Air Pump: Type: mainboard-controlled air pump Voltage: 24V Flow: 30L/min Air Hose Inner Diameter: 7.5mm

Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)

Engraving Material: all kinds of wood (including walnut, cherry, and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting Material: all kinds of wood (including walnut, cherry, and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards

Operating Software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system Supported File Formats: NC, BMP, JPG, PNG, DXF, and other image formats Data Transmission Method: USB connection or Bluetooth wireless connection

Power Input: 100-240V AC, 50/60HZ  Power Output: 24V 5A

Product Weight: 7kg Package Weight: 15kg Product Size(L x W x H): 230*235*625mm Package Size(L x W x H): 260*500*650mm
