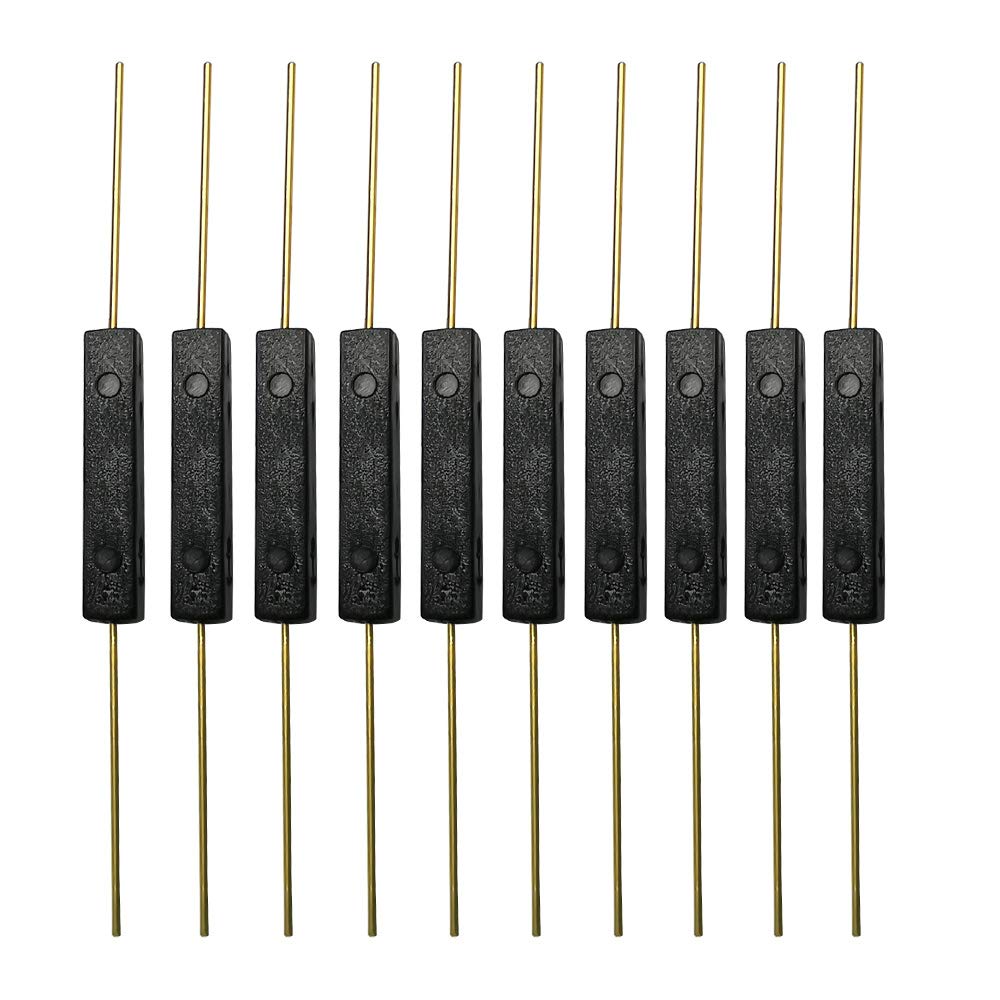

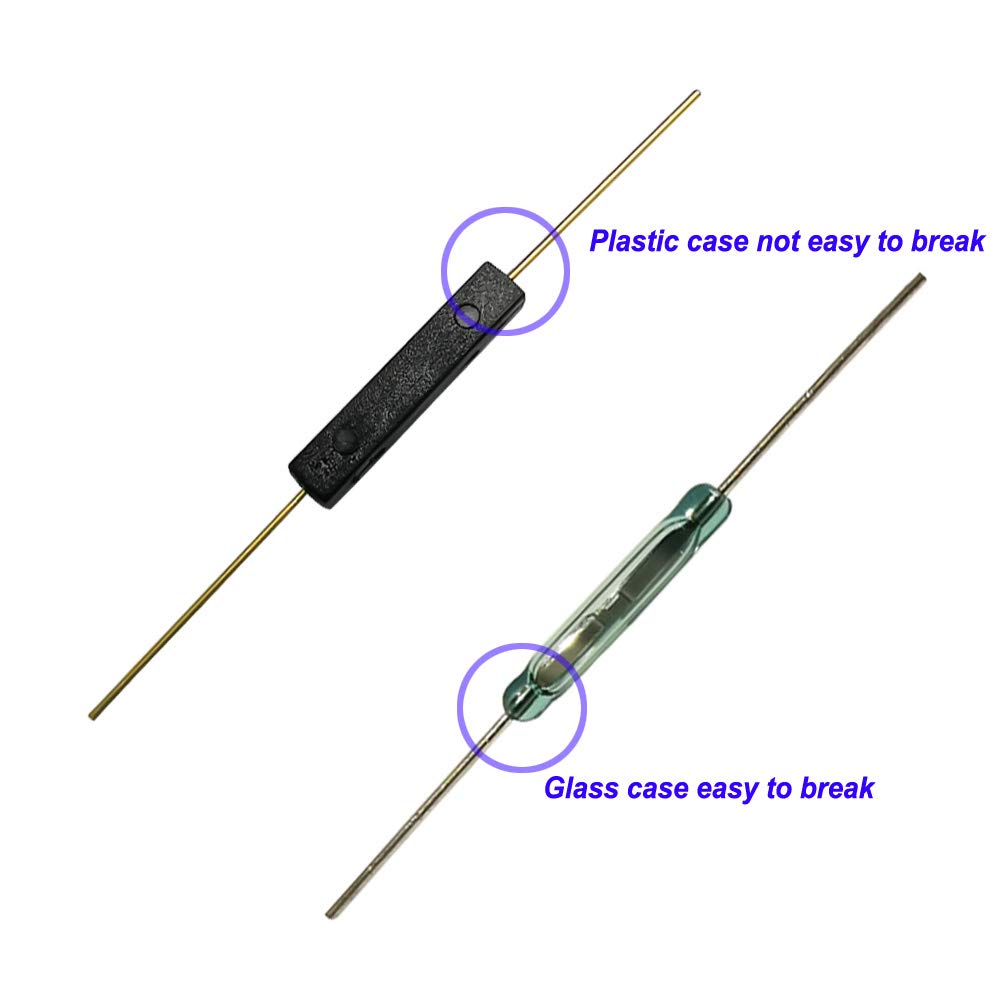

Kiligen 10pcs Plastic Reed Switch Reed Contact Normally Open (N/O)

• ✪Package includes: 10 X Reed Switch

• ✪Glass length: 14 mm; Plastic part diameter: 3 mm

• ✪Maximum switching voltage 100VDC, working temperature: -20 degrees to 80 degrees

• ✪Max. Switch current: 0.5A; Maximum charging current: 1.0A

• ✪Maximum contact resistance: 100M; Minimum insulation resistance: 1010

Total length 44mm Plastic part length 14mm Plastic parts diameter 3mm Inquiry form A Operating temperature: -20 degrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive value 10-15AT Minimum reset minimum value 4FT Maximum contact capacity 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number/resistance 870/5000Ω Package includes: 10 X Reed Switch
