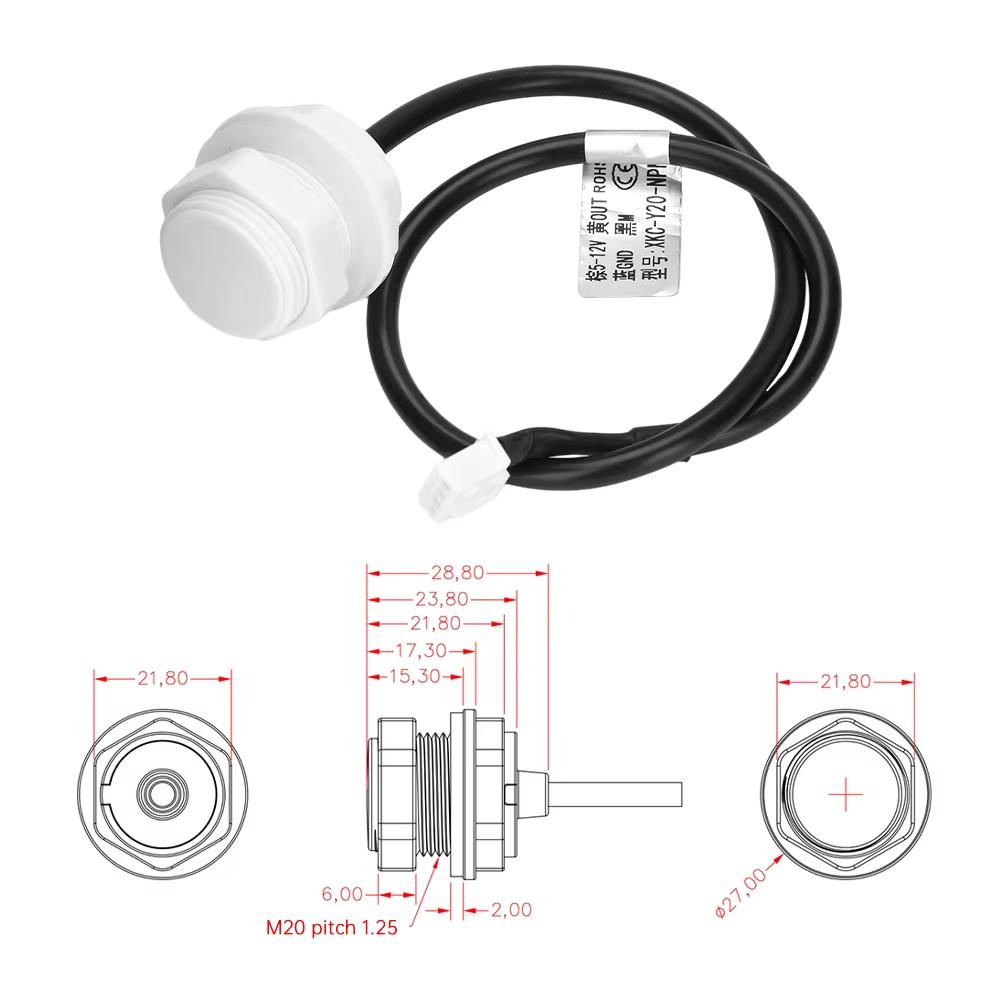

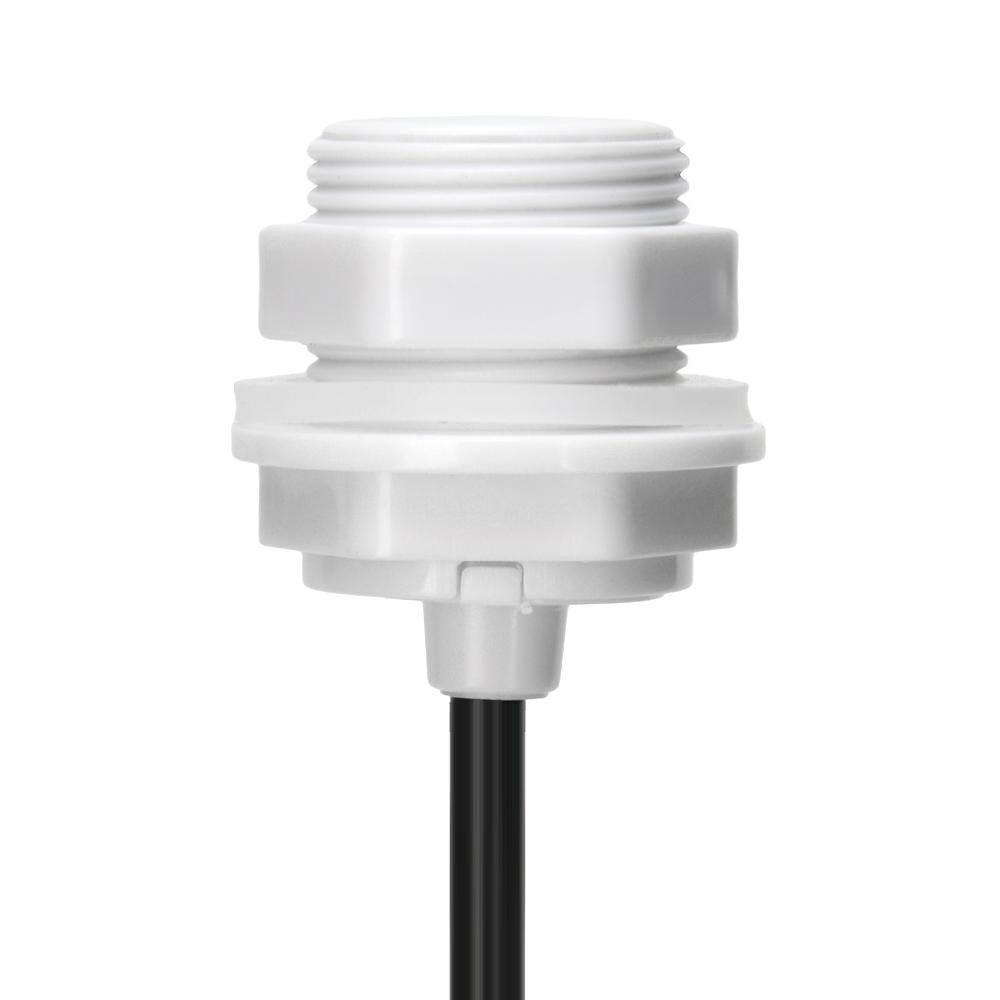

XKC-Y20-V/ XKC-Y20-NPN Low Cost Capacitive Contact Typle Liquid Level Switch Level Sensor for Both Metal and Non-metallic Tank

High-concerned chemical : none is_d : Yes Theory : Capacitance Sensor Material : Polymer Type : Humidity Sensor Output : Switching Transducer Brand Name : DIY NOW Use : Humidity Sensor Origin : Mainland China Condition : New Type : Liquid Level Switch Key Word : Sensor Switch Module Dropship : Support

XKC-Y20-V/ XKC-Y20-NPN Low Cost Capacitive Contact Typle Liquid Level Switch Level Sensor for Both Metal and Non-metallic Tank Features 1. Supports high and low level output and NPN signal output. 2. Accurate and stable liquid level detection, can detect cold, hot and boiling liquids. 3. Pure electronic circuit structure, non-mechanical working mode, stable performance, long continuous life. 4. Steam and water droplets do not affect detection, sensitivity can be adjusted, and all 5-12V power adapters on the market are compatible. 5. XKC-Y20 contact liquid level sensor can detect non-metallic containers such as glass, plastic, ceramics, tiles, bricks, tiles, cement, wood, and metal containers such as copper, iron, stainless steel, and aluminum alloy.

Product parameters Product name: Y20 contact liquid level sensor Input voltage: DC5-12V Output mode: high and low level (V)/NPN Power supply ripple requirement: ≤200mV Current consumption: ≤10mA Output current: ≤100mV Actual initialization: ≤500mS Response time: ≤500mS Humidity: 5%~100% Liquid level accuracy: ±10mm Wire length: about 30cm Wire segment definition: brown (VCC), yellow (OUT), blue (GND), black (MARK) Note V high and low level output: high and low level output can drive MCU, microcontroller IO port (cannot drive PLC/relay coil and other loads) NPN low level output: low level output with induction, disconnected without induction. Package list Liquid level sensor*1 label:yes

Material: plastic Weight: 2 kg
