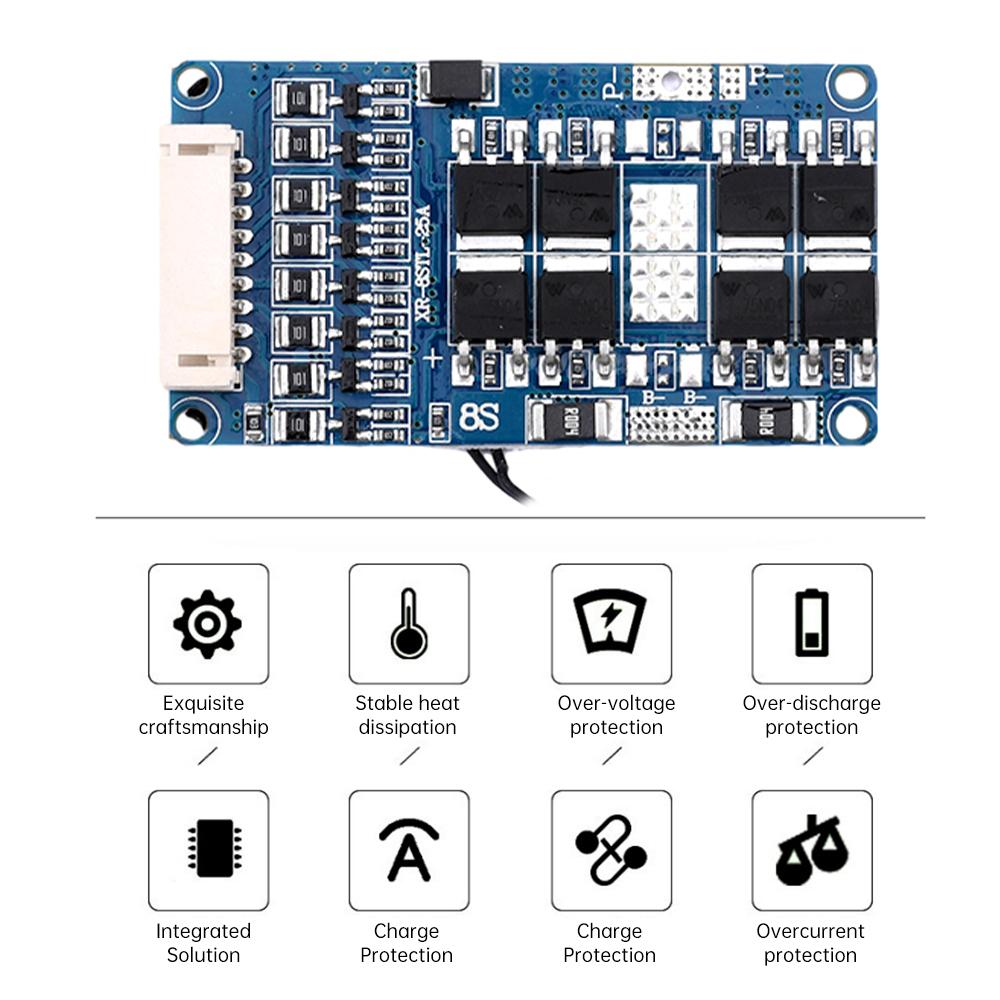

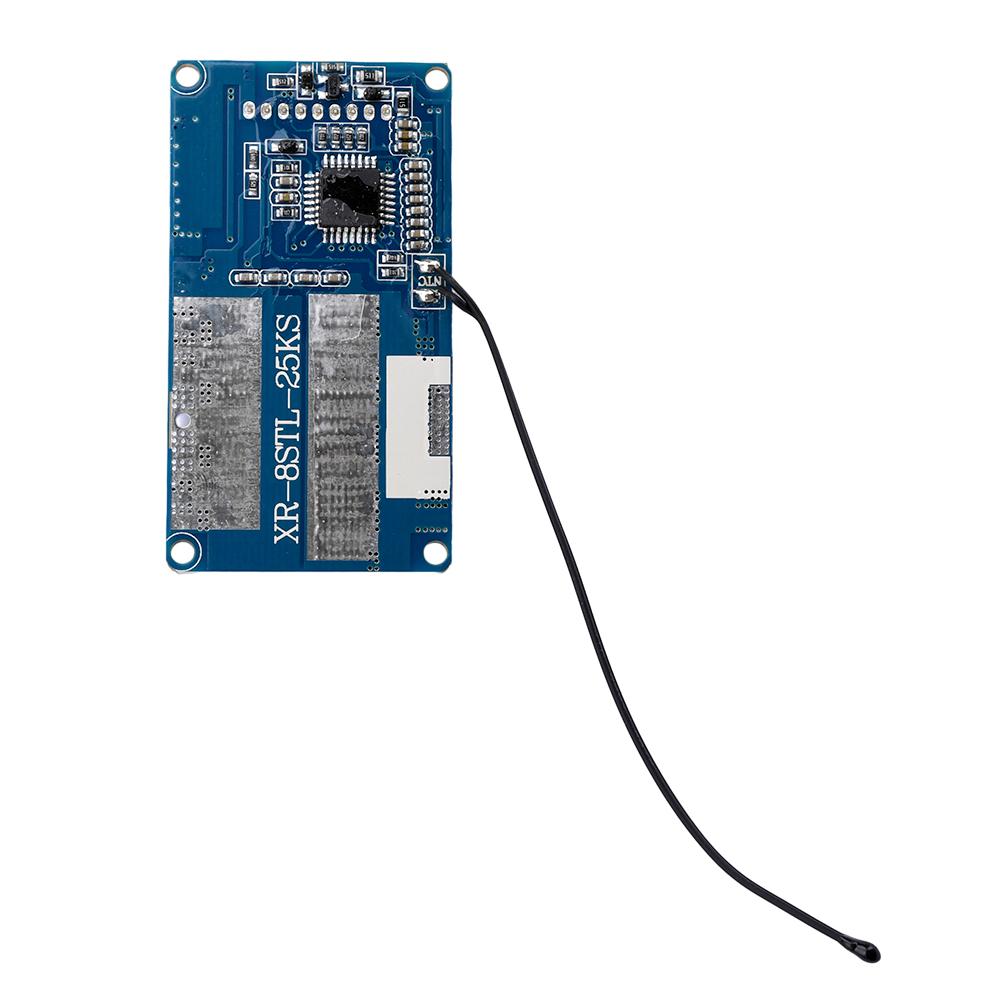

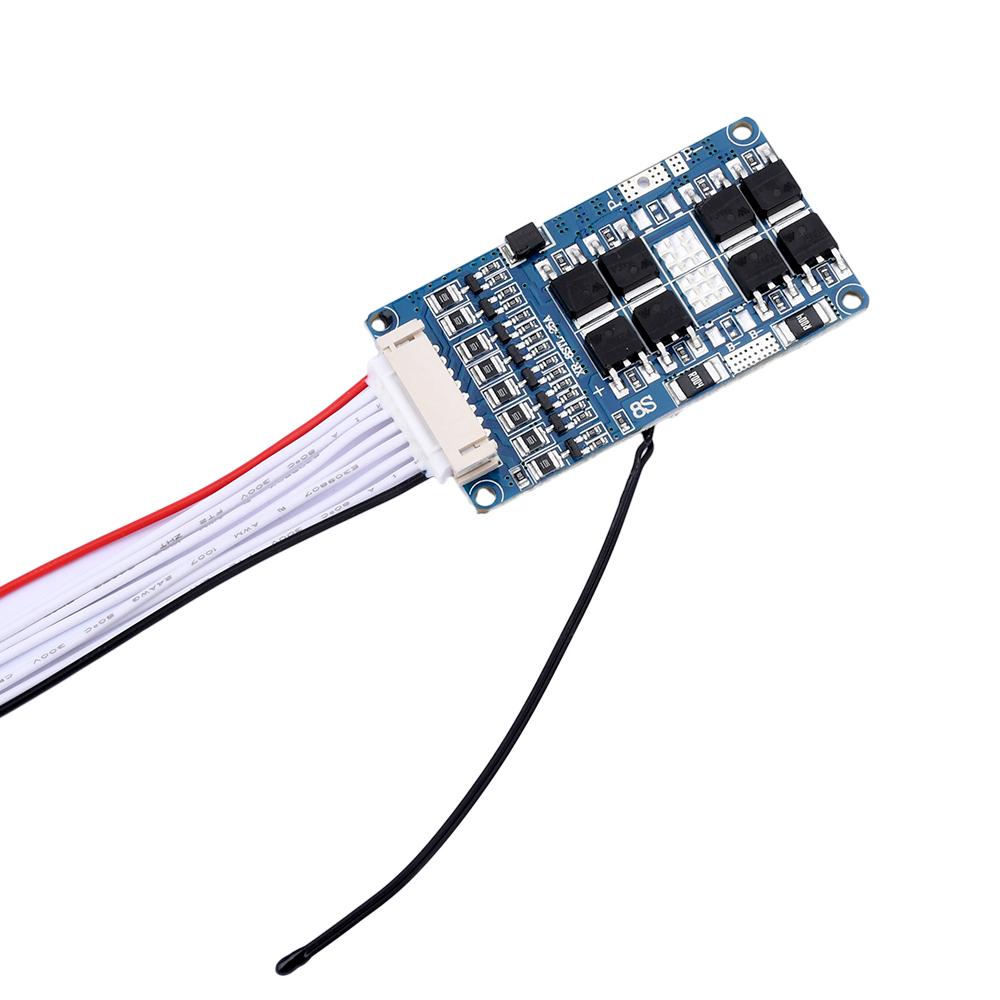

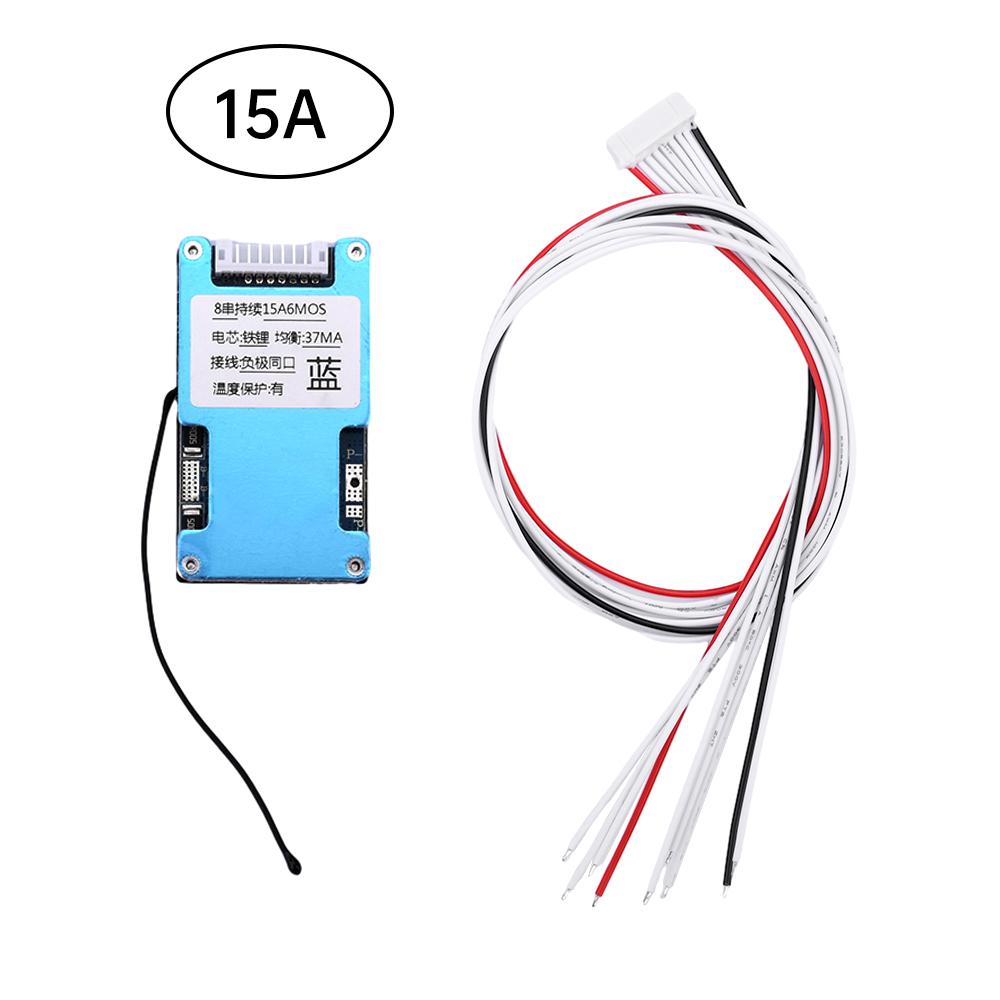

LiFePo4 Battery BMS 8S 24V 15A/20A/25A Same Port Balanced Charge Board Equalizer with NTC Temp Protection For Electric Tools

High-concerned chemical : none Charging Current : 15A Usage Scenario : 3C Digital BMS Certification : NONE Balance Function : Passive Balanced BMS Handware or Smart : Handware BMS Charge and Discharge Port : Common Port BMS Type : LIFEPO4 Battery BMS Origin : Mainland China Brand Name : occkic Function : Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

Features: 1. The use of high-quality materials, product quality assurance 2. Exquisite and compact appearance, beautiful arrangement of components 3. Using a single integrated circuit, more stable performance 4. The product has over-current protection, over-voltage protection, over-discharge protection, short-circuit protection, charging protection and other protection functions, the use of more secure and safe! 5. Wide range of applications, suitable for a variety of industrial DIY occasions Parameter: Wiring: same port Over-discharge protection voltage: 2.3V±0.08V Over-discharge recovery voltage: 2.5V±0.08V Continuous operating current: 15A/20A/25A three versions Instantaneous protection current: 15A version = 45A, 20A version = 55A, 25A version = 65A Overcurrent recovery condition: Charge recovery or load disconnection. Short-circuit recovery condition: charging recovery or disconnecting the load Overcharge protection voltage: 3.75V±0.025V Overcharge recovery voltage: 3.55V±0.025V Continuous charging current: 15A version = 15A, 20A version = 20A, 25A version = 25A Charging equalization voltage: 3.75V±0.025V Charge equalization current: 40MA (max) Charger voltage: 30V (recommended) Charging overtemperature: -2℃+55℃ Discharge overtemperature: -30℃+70℃ Operating power consumption: ≤40uA Internal resistance of main circuit conduction: ≤15mΩ Temperature range: -40+80°C Disconnection protection: Yes Wire size: 2.0MM pitch/9 wires/40CM length Attention: Activation mode: the first PACK two activation modes, B- and P- wire short circuit once or direct charging can be activated Package include: Li-ion battery protection board *1 Cable*1
