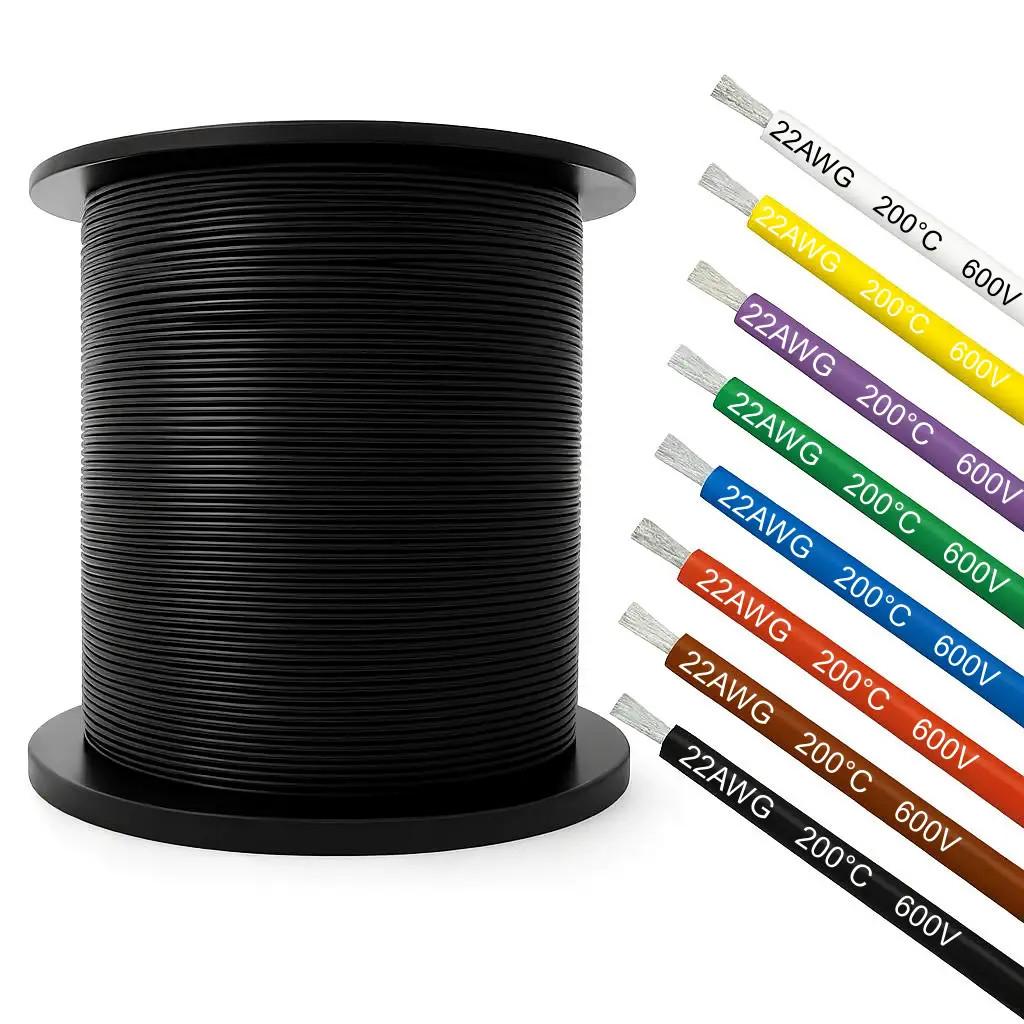

Amass 22 AWG Silicone Wire 0.30 mm²
Amass 22 AWG silicone wire with a cross-section of 0.30 mm² is a very soft wire designed for signal, control, and power connections for low-power electronics. The conductor consists of 60 thin strands of tinned copper with a diameter of 0.08 mm, making the wire flexible and easy to route in tight spaces.
The auction is for 1 meter of wire. Purchasing several pieces means a correspondingly longer section prepared in one piece, if the available roll stock allows.
Who is this cable for?
• For making signal and control connections in electronics
• For powering receivers, sensors, modules and low-power LED lighting
• For wiring FPV drones, RC models, robots and mobile devices
• For installations exposed to vibrations, shocks and frequent bending
Who is NOT this cable for?
• For main power cables for motors, controllers and high-power batteries
• For installations requiring a load higher than specified
• For applications requiring a larger conductor cross-section
• Cross-section 0.30 mm² - suitable for signal and Power supply for low-power electronics
• 60 strands with a diameter of 0.08 mm - high flexibility and resistance to repeated bending
• Tinned copper - easier soldering and reduced oxidation of the conductor surface
• Very soft silicone insulation - easy cable routing inside small devices
• Outer diameter 1.70 mm - low space requirement in the wiring harness
• Rated voltage 600 V - insulation parameter given in the series specification
• Operating temperature up to +200C - insulation adapted to work at elevated temperatures
• White color
• Brown color
• Black color
• Red Color
• Purple Color
• Blue Color
• Yellow Color
• Green Color
Parameter | Value
Brand | Amass
Cable Size | 22 AWG
Conductor cross-section | 0.30 mm²
Conductor material | Tinned copper
Conductor construction | 60 strands of 0.08 mm each
Conductor diameter without Insulation | 0.72 mm
Outer diameter with insulation | 1.70 mm
Insulation material | Extra soft silicone
Rated voltage | 600 V
Operating temperature | Up to +200C
Conductor resistance | 66.9 Ohm/km
Recommended load | 1.81 A
Environmental compliance | RoHS, REACH, Halogen Free
Available colors | White, brown, black, red, purple, blue, yellow, green
Sales unit | 1 piece = 1 meter
• 1 m of Amass 22 AWG 0.30 mm² silicone cable in the selected color
Frequently asked questions
Does one piece mean one meter of cable?
Yes. One piece corresponds to one meter of cable. When purchasing multiple pieces, the cable is prepared as one longer piece, provided the available roll stock allows.
Is 22 AWG cable suitable for FPV drones?
Yes. It can be used for signal connections and powering low-power electronics such as receivers, GPS modules, lighting, and small on-board devices.
Can the wire be soldered?
Yes. The conductor is made of tinned copper, which makes soldering the wire to pads, connectors, and electronic modules easier.
Avifly Expert Tip: Before soldering, twist and whiten the exposed strands. This will reduce delamination and make it easier to make a tight connection on small pads.
