N76E003 is Nuvoton's high-speed 1T 8050 MCU series product, which provides 18KB Flash ROM, configurable Data Flash and high-capacity 1KB SRAM, supports a wide operating voltage of 2.4 V to 5.5V and an operating temperature of -40 ° C to 105 ° C, and has high resistance Interference ability 7KV ESD / 4KV EFT. The N76E003 provides up to 18 I / O pins in a 20-pin package; the periphery includes dual serial ports, SPI, I2C, and 6-channel PWM output; built-in high-precision 16MHz RC crystal with higher than 2% error and high resolution 8-channel 12-bit ADC; self-awakening, undervoltage detection and other functions; TSSOP20 (4mm * 6.5mm) and 0FN20 (3mm * 3mm) small packages, both high performance and design flexibility.
Product Parameters:
1T / 8051: 1T MCU, 8051 classic core;
18KB Flash ROM: better than 8KB Flash, and 18KB of flash memory space, all can be used as data storage space;
1024B SRAM;
17 + 1 input ports: better than support up to 16 GPI0;
2 * UART, SPI, I2C: better than SPI / I2C / UART (one more UART);
8ch of 12bit ADC: better than 5 channel 10bit ADC;
6ch of individual duty PWM: better than 3 PWM outputs;
10KHz LIRC for WDT reset / WKT;
16MHz HIRC ± 1% Room temp. Soil 2% full condition;
Wider supply voltage range from 2.4V to 5.5V;
TSSOP20 / QFN20;
ESD & EFT: HBM / 8KV MM / 400V, Over 4KV, excellent ESD and EFT, anti-interference and ESD protection capabilities;

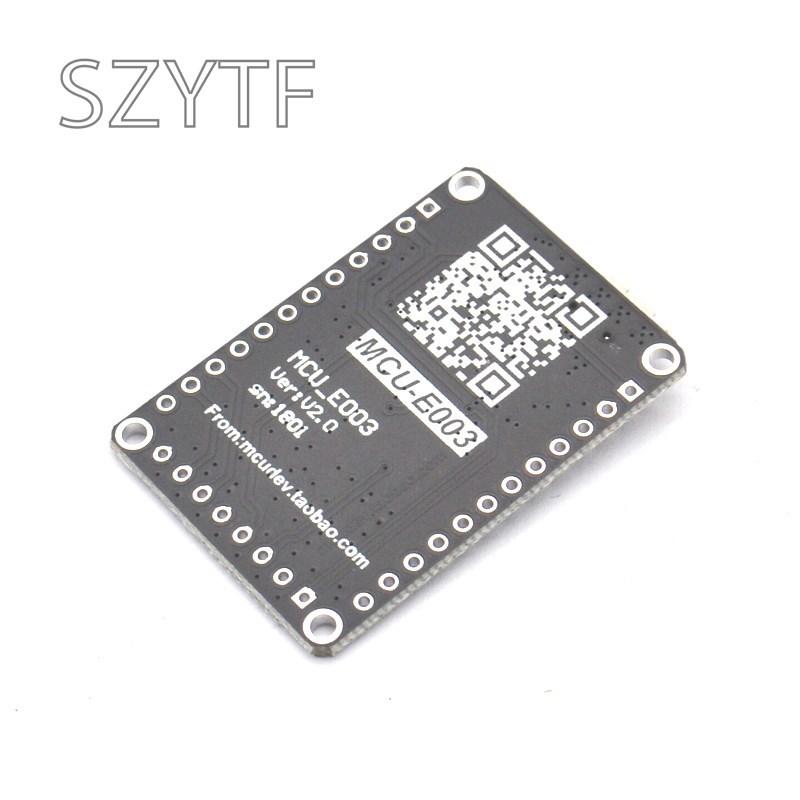

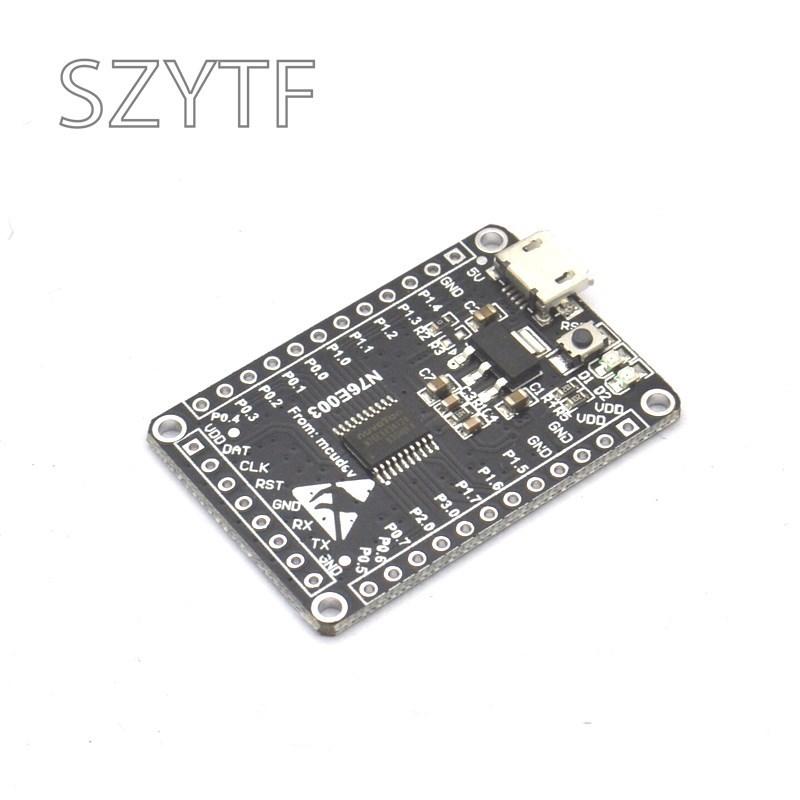

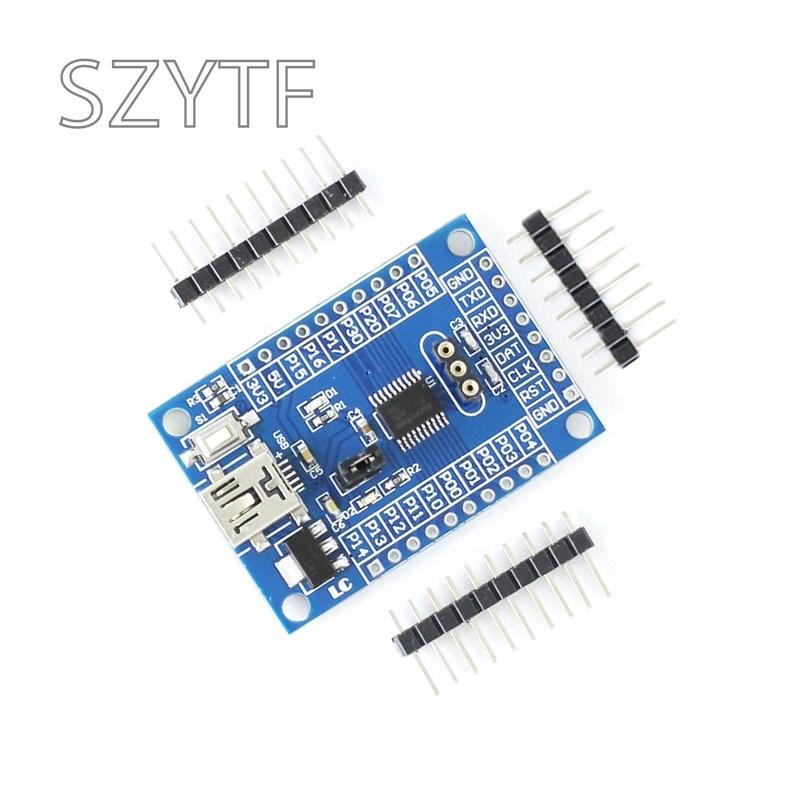

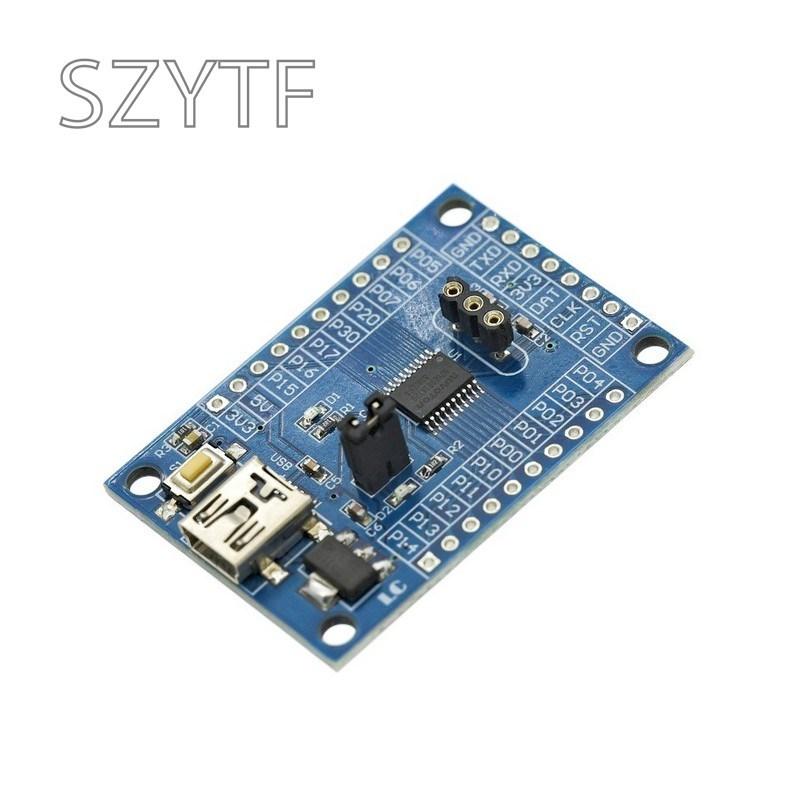

Onboard MINI USB power supply interface, reset button and AMS1117-3.3V voltage regulator chip:
Onboard external crystal oscillator interface and programmable LED (P12 foot) jumper cap (control the LED through the I / O port when plugged in)

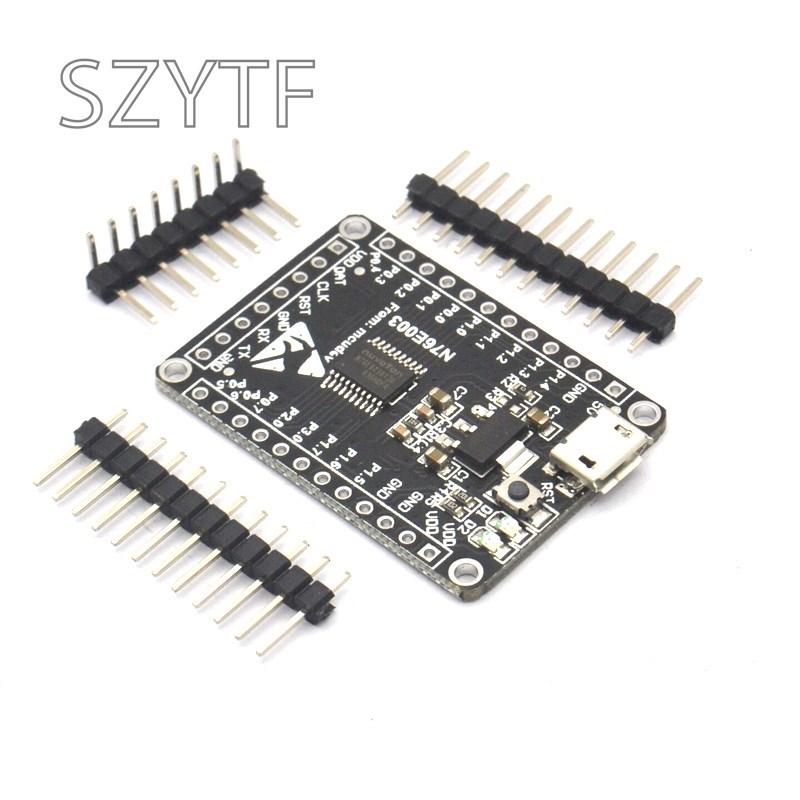

All I / O ports are led out through 2.54mm pin headers.
Board size: 43mmX29.8mm
Compared with STM8S003F3P6
STM8S003F3P6: —20 pins in total, supporting up to 16 GPIOs and 16 external interrupts;
2 16-bit timers [TIM1 / TIM2], can output up to 3 PWM signals;
5 ADC channels, support SPI / I2C / UART; 8KBYTE FLASH, 1K RAM, 128 BYTE EEPROM; built-in 16M high-speed oscillator, WDG, etc.

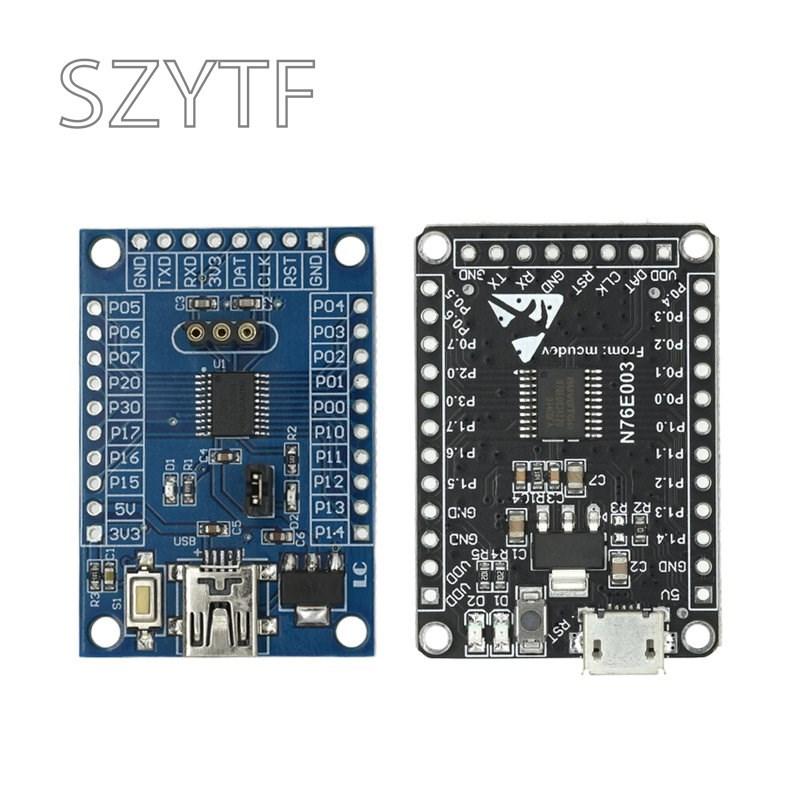

Pin Definition:
5V / 3.3V: positive working voltage;
GND: negative working voltage;
TX: module serial port sending pin, can be connected to the RXD of the microcontroller;
RX: module serial port pick-up pin, which can be connected to the TXD of the microcontroller;
DAT, CLK, RST: Nu-Link program download port;
