Feature:
1. Working within the effective voltage range, the valve will open or close within 3‑5 seconds.
2. After the valve is fully opened, the limit switch can reduce the power to a minimum, and the power will return to the fully closed state.
3. The ball valve is a 5‑wire with signal feedback mode, the circuit control is more stable and the interference is small.
4. When fully opened or fully closed, the power is automatically cut off, reducing the possibility of overheating.
5. With standard DN15 caliber, the connection is firm and no leakage, and it is used for projects that need to open the valve for a long time.
Specification:

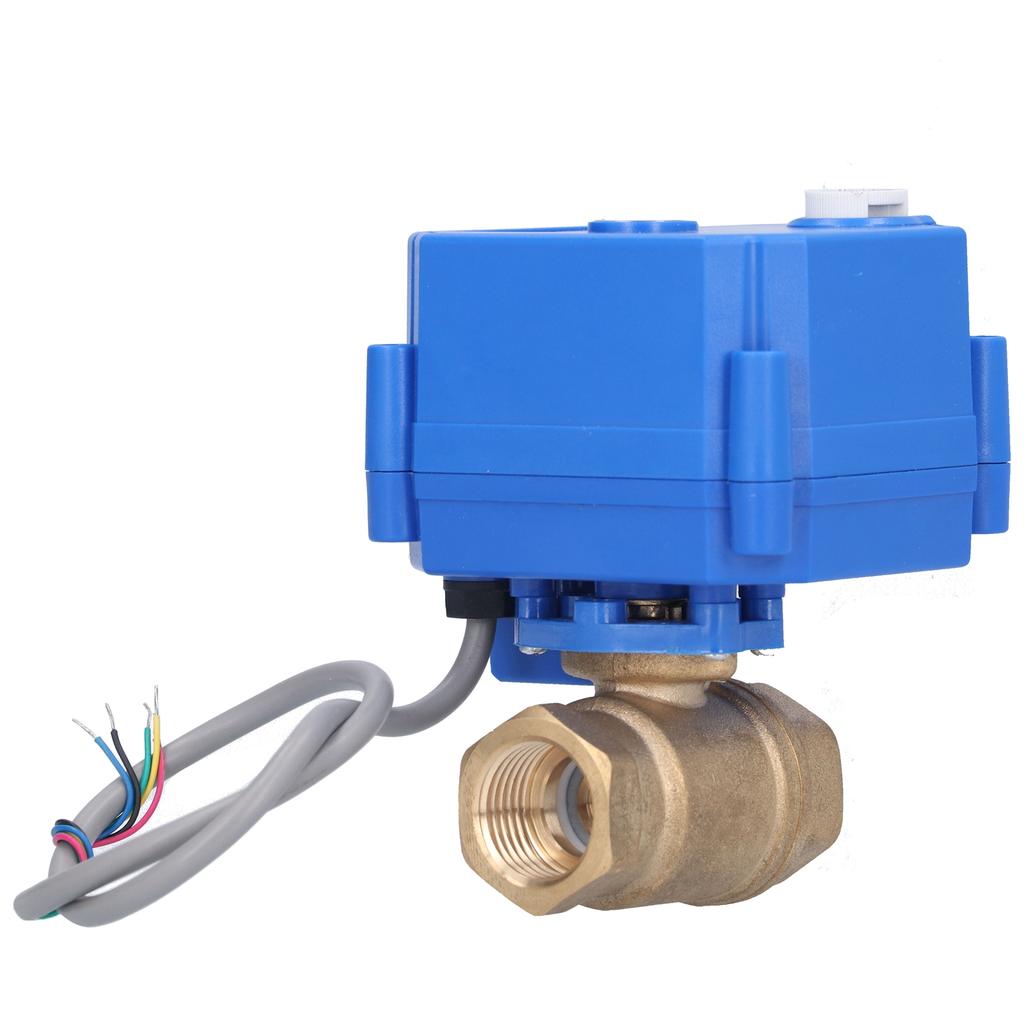

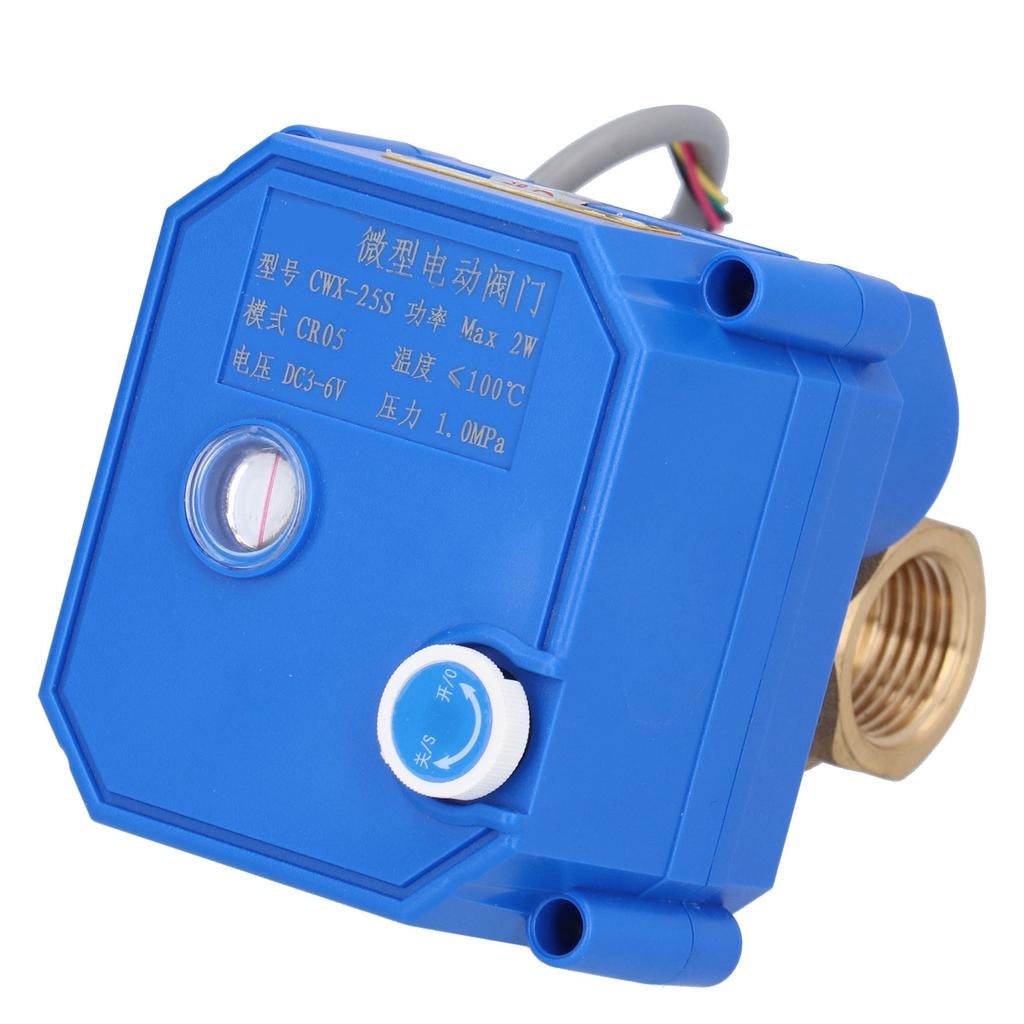

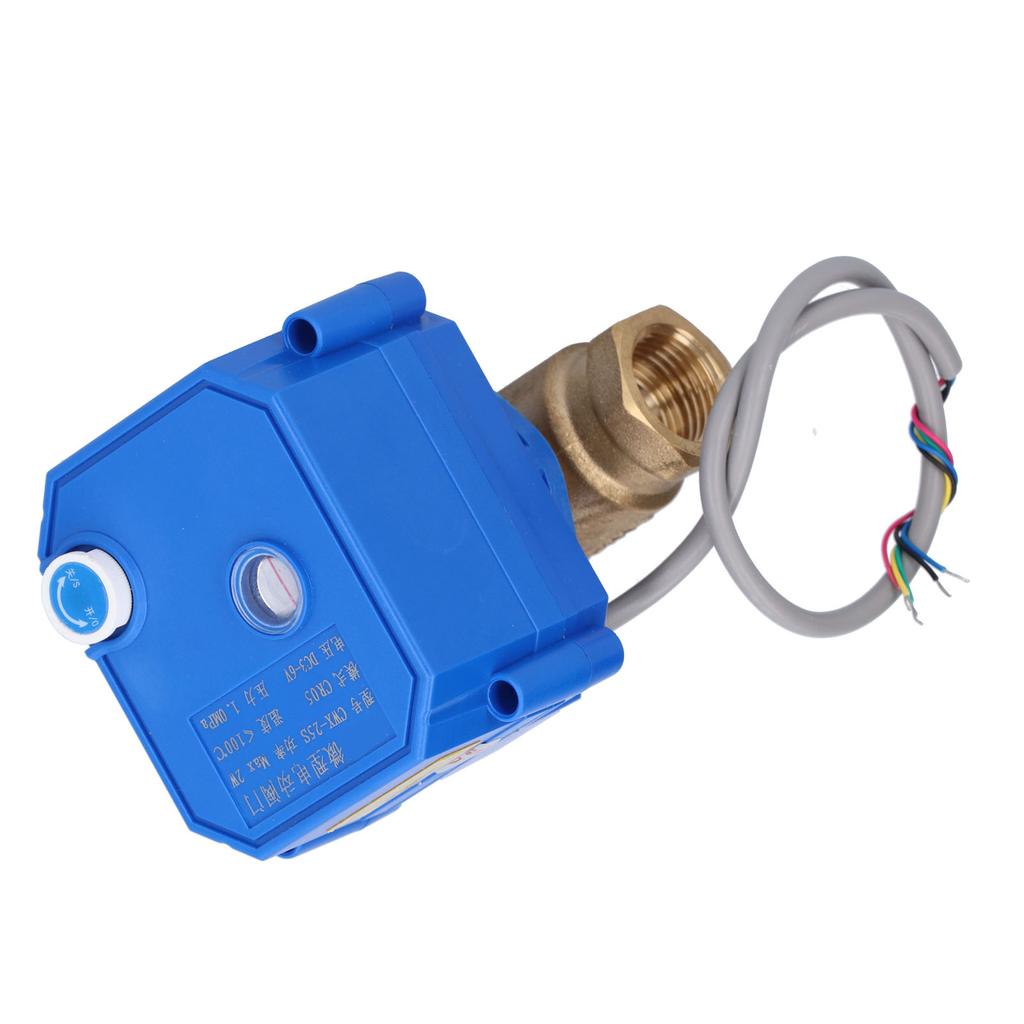

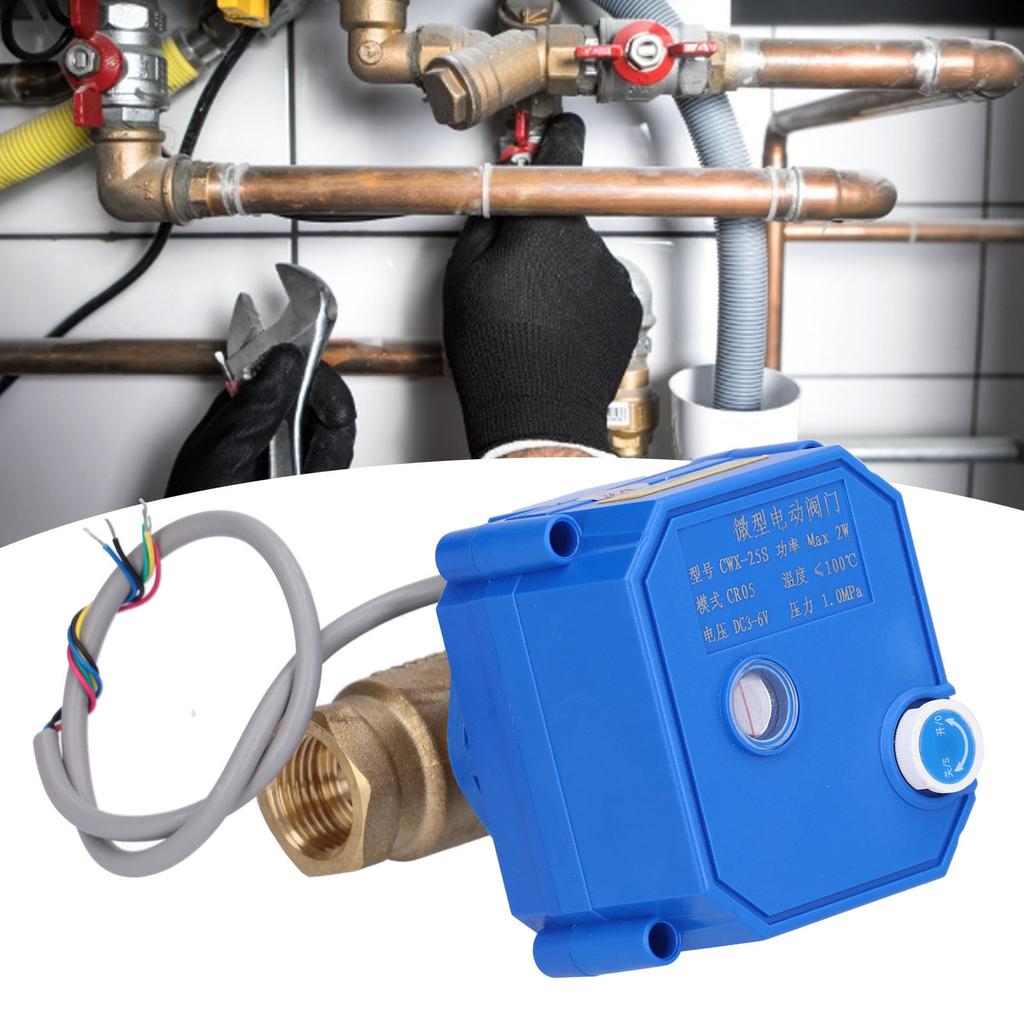

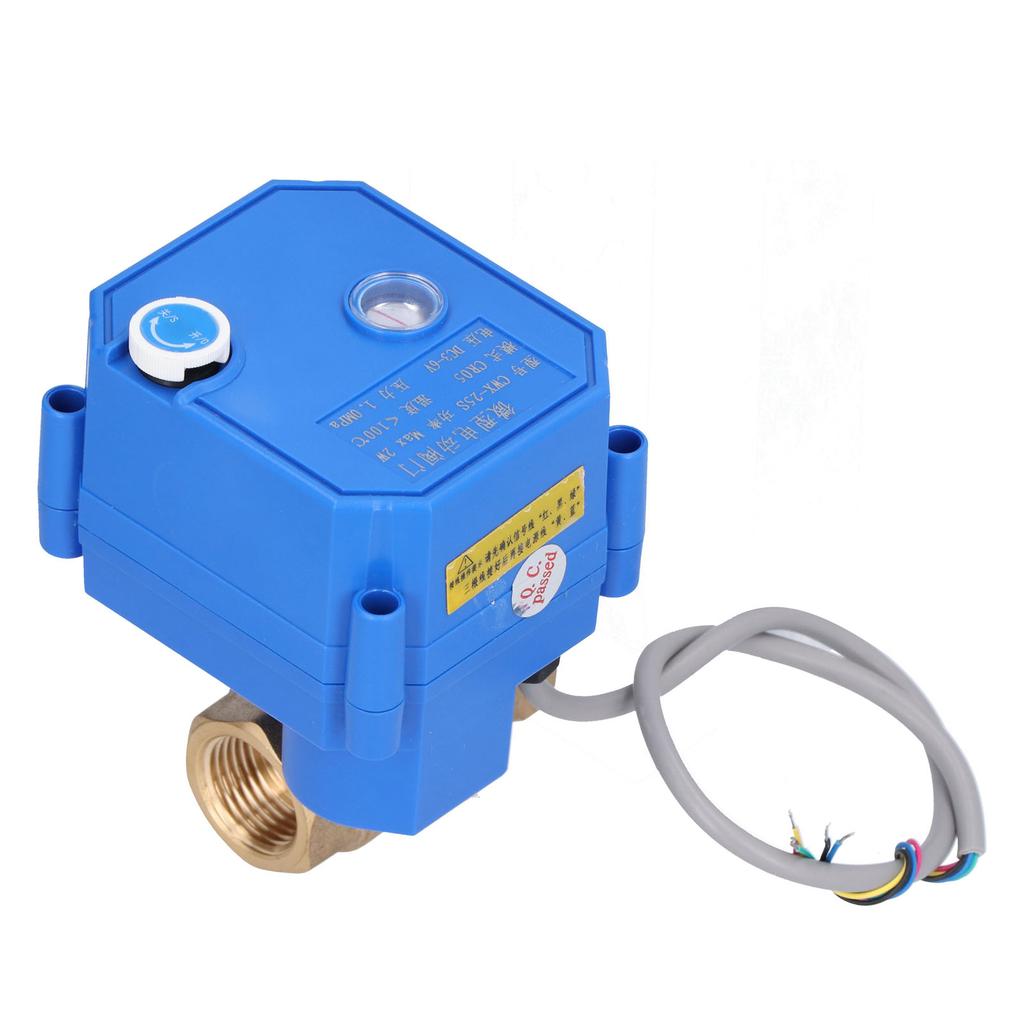

Item Type: Motorized Ball Valve
Model: CWX-25S-CR05-DC3-6V-DN15
Adapted Caliber: DN15
Rated Voltage: DC3-6V
Medium Temperature: ≤100℃
Working Pressure: Maximum 1.0Mpa
Protection Level: IP67
Connection Method: CR05
Commodity Use: Water treatment miniature motorized ball valve
Flow Direction: Straight through
Cable Length: Approx. 35cm / 13.8in
Thread Standard: BSP
How to Use:
1. When SW is connected with OPEN, the valve opens; when it is in place, the green line gives an open end signal OLs control. The controller detects OLS and connects SW to STOP, the valve stops and remains in open end state.2. When SW is connected to CLOSE, the valve is closed; when it is in place, the red line gives a close end signal CLS control. The controller detects CLS and connects SW to STOP, and the valve stops acting and keeps in the close end state.
Package List:
1 x Motorized Ball Valve
