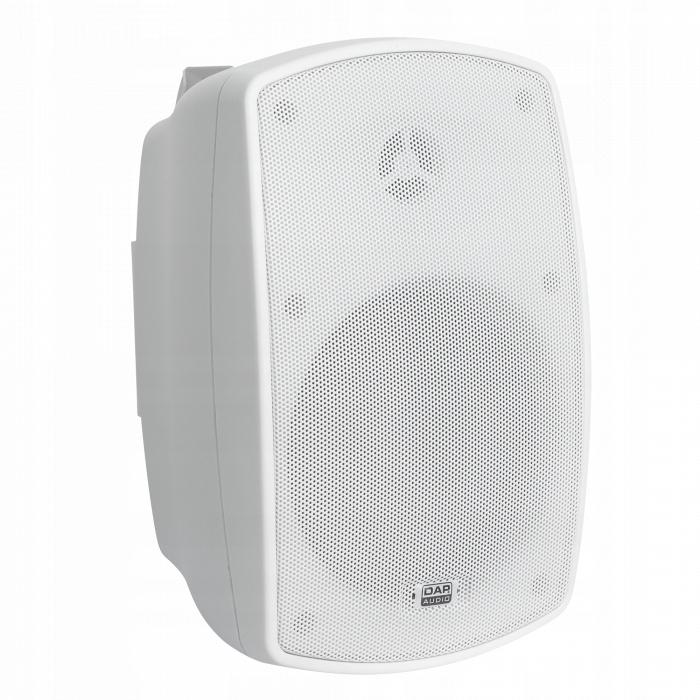

DAP EVO 5 - Passive 5” Speaker Set - White

DAP EVO 5 is a set of two 5.25-inch passive installation speakers that deliver excellent sound quality up to 113 dB at one meter. With 120 Watts of peak power each, these 2-way Hi-Fi speakers have a high power handling capacity.

This makes them an ideal full-range audio solution for a variety of locations, such as restaurants, retail stores, and even clubs.

EVO 5 fits seamlessly into any interior or exterior thanks to its elegant design (available in black and white), durable ABS housing, and IP54 rating for protection against heavy rainfall, dust ingress, and water splashes.

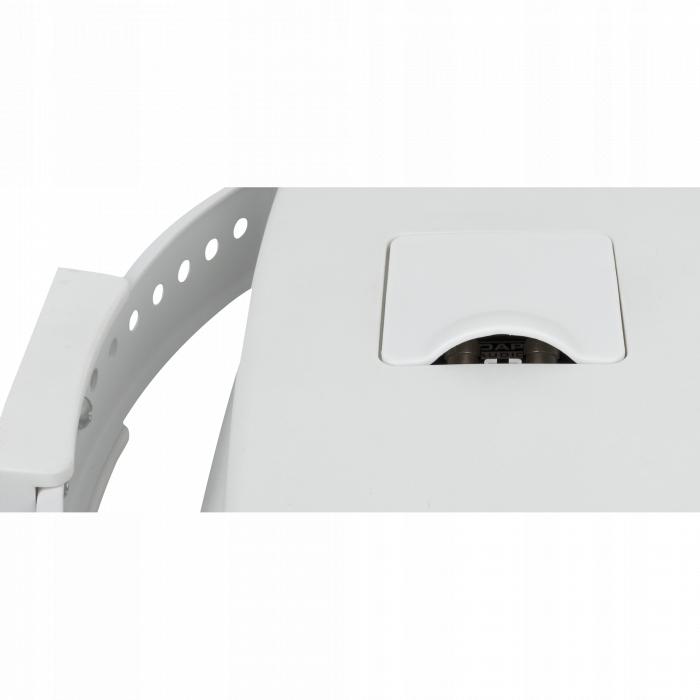

Installation is quick and easy using the clamp connectors and included brackets, suitable for horizontal or vertical mounting. Please note that an external amplifier is required. The DAP CA-4150 is a suitable device for amplifying the EVO 5 speaker set.

• RMS input power 60 W

• Peak input power 120 W

• Passive input connection

• Speaker system 2-way

• Speaker sensitivity (1 W/1 m) 89 dB

• Speaker Impedance 8 Ω

• Maximum SPL @ 1 m 113 dB

• Frequency Response Minimum 80 Hz

• Frequency Response Maximum 20000 Hz

• Woofer Diameter 5.25 ”

• Woofer Voice Coil Diameter 1 ”

• Woofer Magnet Type Ferrite

• Compression Driver Diameter 1 ”

• Compression Driver Voice Coil 0.5”

• Compression Driver Magnet Type Ferrite

• Dispersion Angle (Horizontal) 110°

• Dispersion Angle (Vertical) 90°

• Height (mm) 252 mm (9.921″)

• Width (mm) 163 mm (6.417″)

• Length (mm) 163 mm (6.417")

• Material ABS

• Color White

• Weight 2 kg (4.409 lb)

• IP Rating - IP54

• Speaker Grille Material Aluminum

• Mounting Options Bracket

• Mounting Orientations Horizontal, Vertical

• Maximum Ambient Temperature 55 °C (131 °F)

• Minimum Ambient Temperature -10 °C (14 °F)
