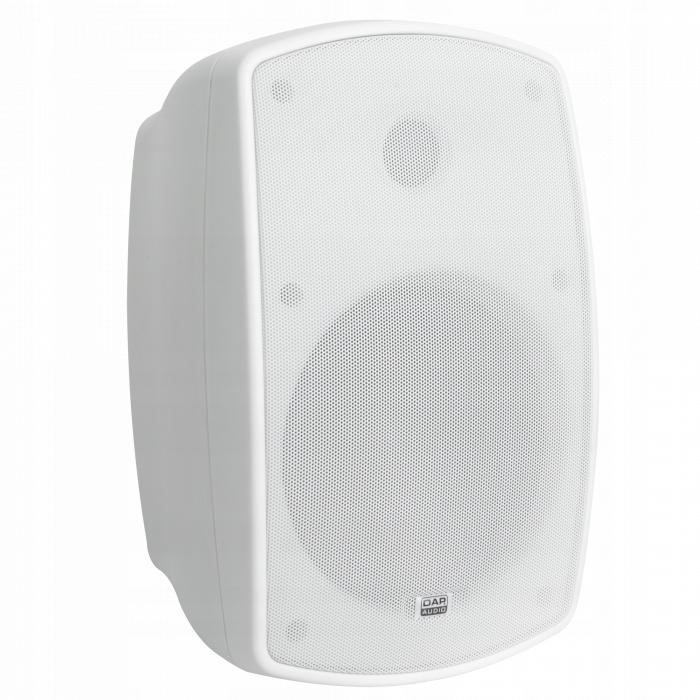

DAP EVO 6A - Active 6” installation speaker set - white

DAP EVO 6A is a set of two 6-inch active installation speakers delivering full-range Hi-Fi sound up to 111 dB at 1 meter each. With its elegant design (available in black and white), robust construction, and excellent sound quality, this set fits perfectly into any small room.

It is the ideal audio solution for a variety of public spaces, such as restaurants and retail stores.

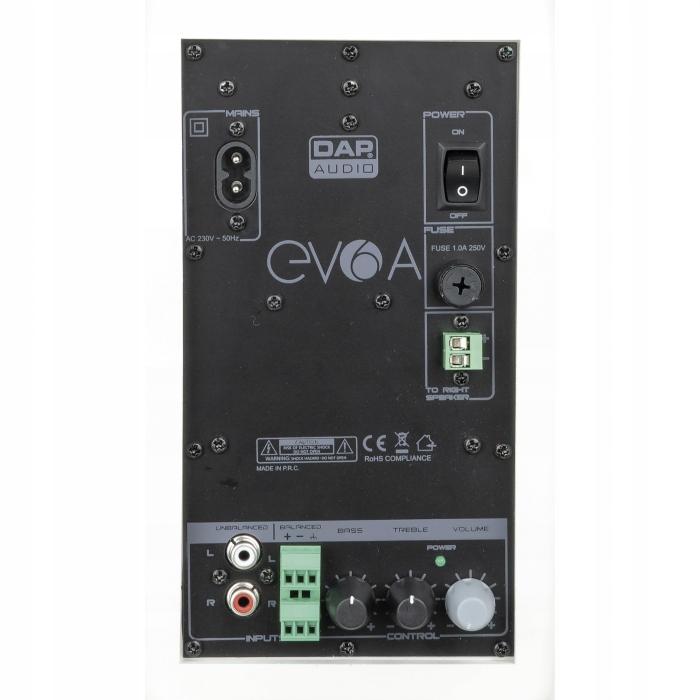

EVO 6A features a built-in class D amplifier with volume, bass, and treble controls. Installation is quick and easy thanks to the RCA audio input and terminal, and the 8-pin power connector with Euro plug. A mounting bracket for horizontal or vertical placement is also included.

• Stereo Inputs 1

• Stereo Input Connector Phoenix, RCA

• Stereo Input Impedance 10000 Ω

• RMS Input Power 35 W

• Peak Input Power 70 W

• Passive Output Connector

• TH Level 90 dB

• Amplifier Technology Class D

• Damping Factor 200 :1

• Speaker System 2-Way

• Speaker Sensitivity (1 W/1 m) 90 dB

• Speaker Impedance 8 Ω

• Maximum SPL @ 1 m 111 dB

• Frequency Response Minimum 50 Hz

• Frequency Response Maximum 20000 Hz

• Woofer Diameter 6.5”

• Woofer Voice Coil Diameter 1.5”

• Woofer Magnet Type Ferrite

• Compression Driver Diameter 1”

• Compression Driver Voice Coil 1”

• Compression Driver Magnet Type Neodymium

• Dispersion Angle (Horizontal) 110°

• Dispersion Angle (vertical) 90°

Electrical Specifications and Connections

• Power Supply 240V AC 50/60 Hz

• Power Consumption 55W

• Fuse 1A

• Power Connector IEC C7 non-polar (2-pole)

• Height (mm) 302mm (11.89")

• Width (mm) 196mm (7.717")

• Length (mm) 193 mm (7.598")

• Material ABS

• Color White

• Weight 8.8 kg (19.401 lb)

• IP Rating - IP20 (indoor use only)

• Speaker Grille Material Aluminum

• Mounting Options Bracket

• Mounting Orientations Horizontal, Vertical

• IEC Cable,

• Speaker Cable
