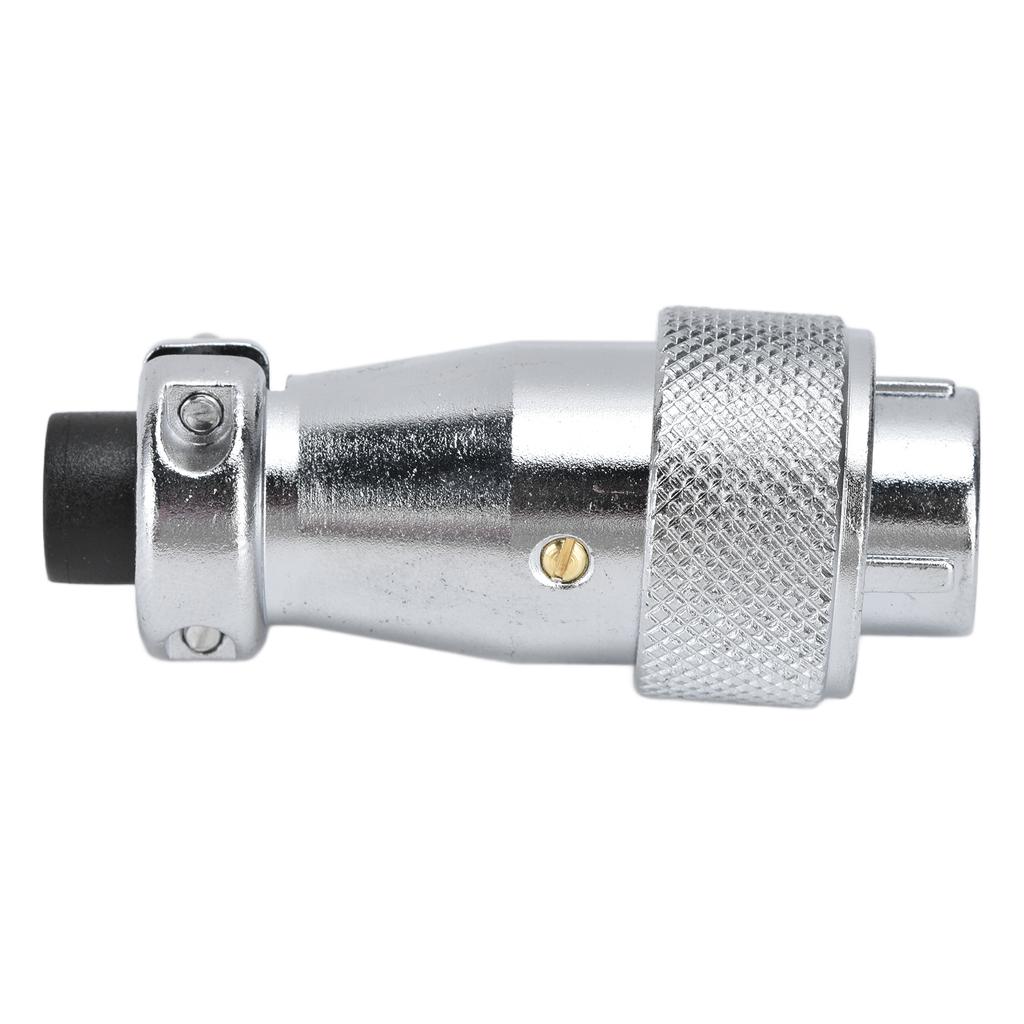

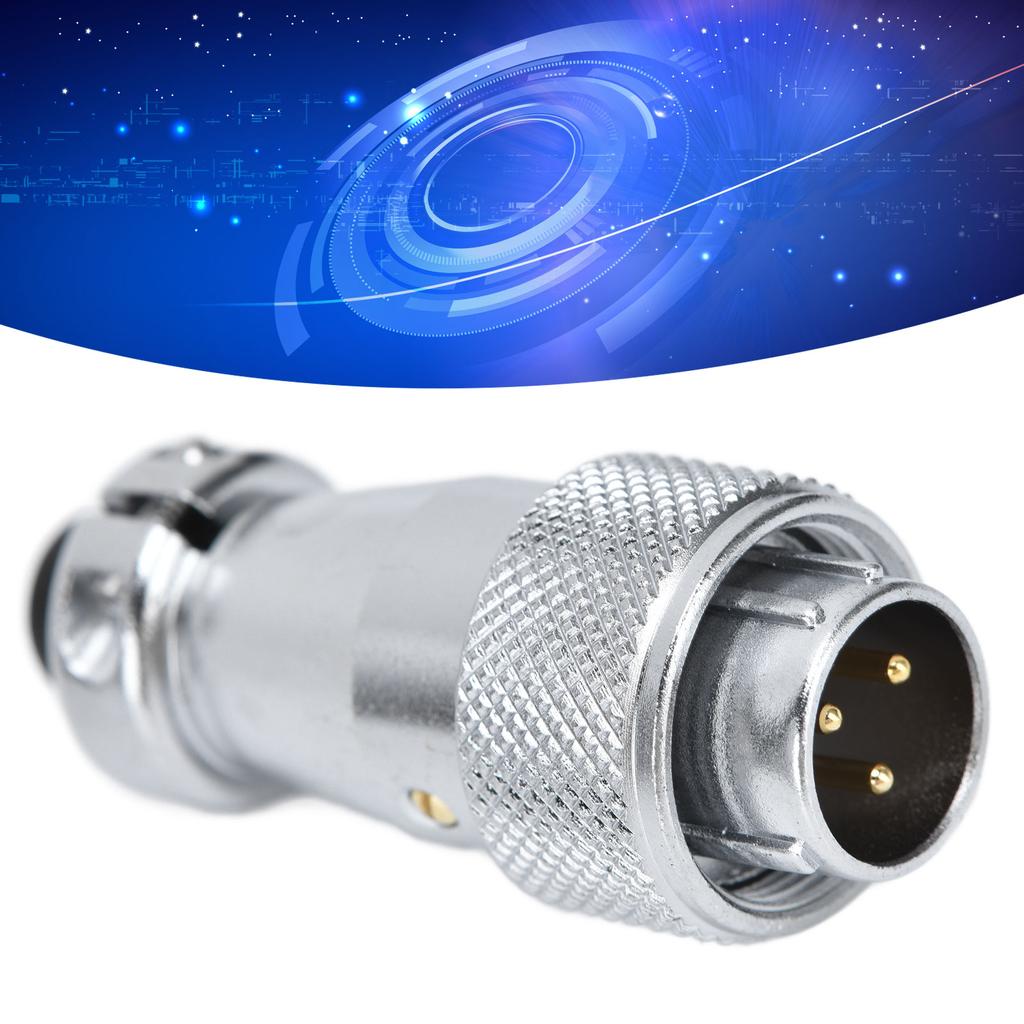

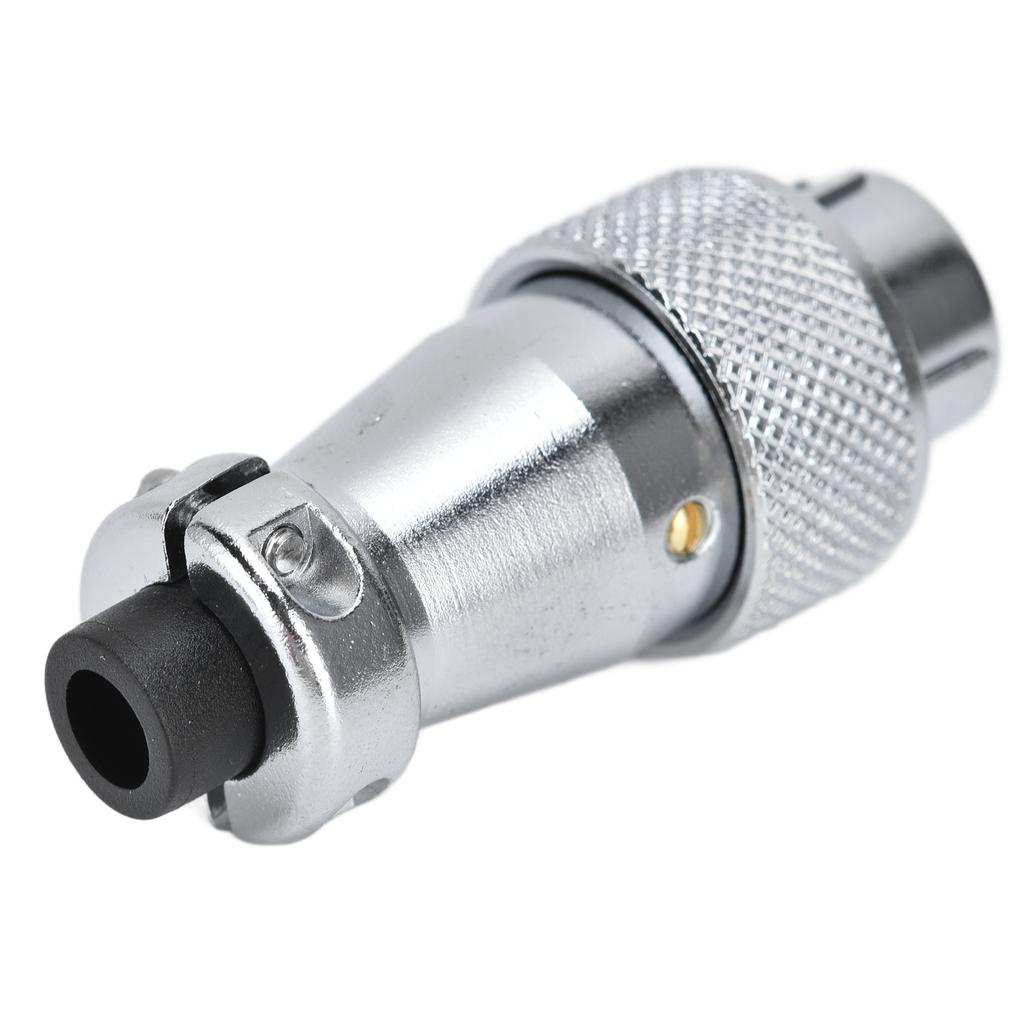

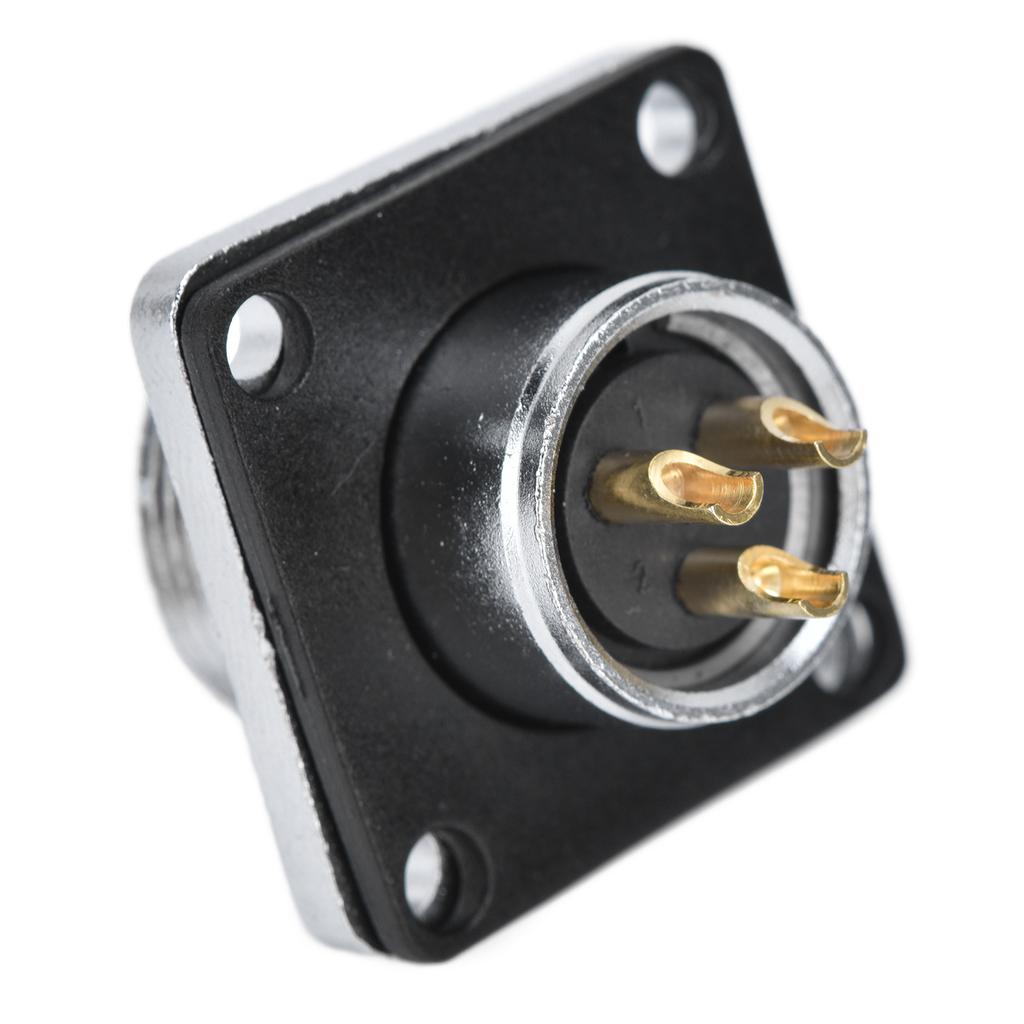

WS16 Aviation Connector Plug Waterproof Aviation Male Female Socket for Electric Power 500V

Feature: 1. Special Design: Aviation plug socket adopt multi core design to adapt to different industrial needs. Welding and crimping can be used. 2. Stable Performance: Stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion proof, antiflaming. 3. Protection: Aviation power connector has good electromagnetic and radio frequency interference protection. And it has waterproof function. 4. Premium Material: Aviation plug socket using pure copper contact material, insulator is made of thermoplastic and can withstand high temperatures. 5. Wide Application: The aviation connector is suitable for marine, aerospace, electric power, communications, instrumentation, computers.

Specification: Item Type: Aviation Connector Material: Zinc Alloy Temperature Range: -40℃~85℃ Number Of Connections: 500 Some Conclusions: 3 Rated Current (A): 10 Contact Diameter (mm): Φ1.5x3 Operating Voltage (AC,V): 500 Withstand Voltage (AC,V) 1min: 1500 Contact Resistance (mΩ): 2.5 Insulation Resistance (MΩ): 2000 Wire Gauge (mm²/AWG): ≤2/14

Package List: 1 x TQ Plug 1 x Z Socket 1 x Waterproof Cover 4 x Screw 4 x Nut
