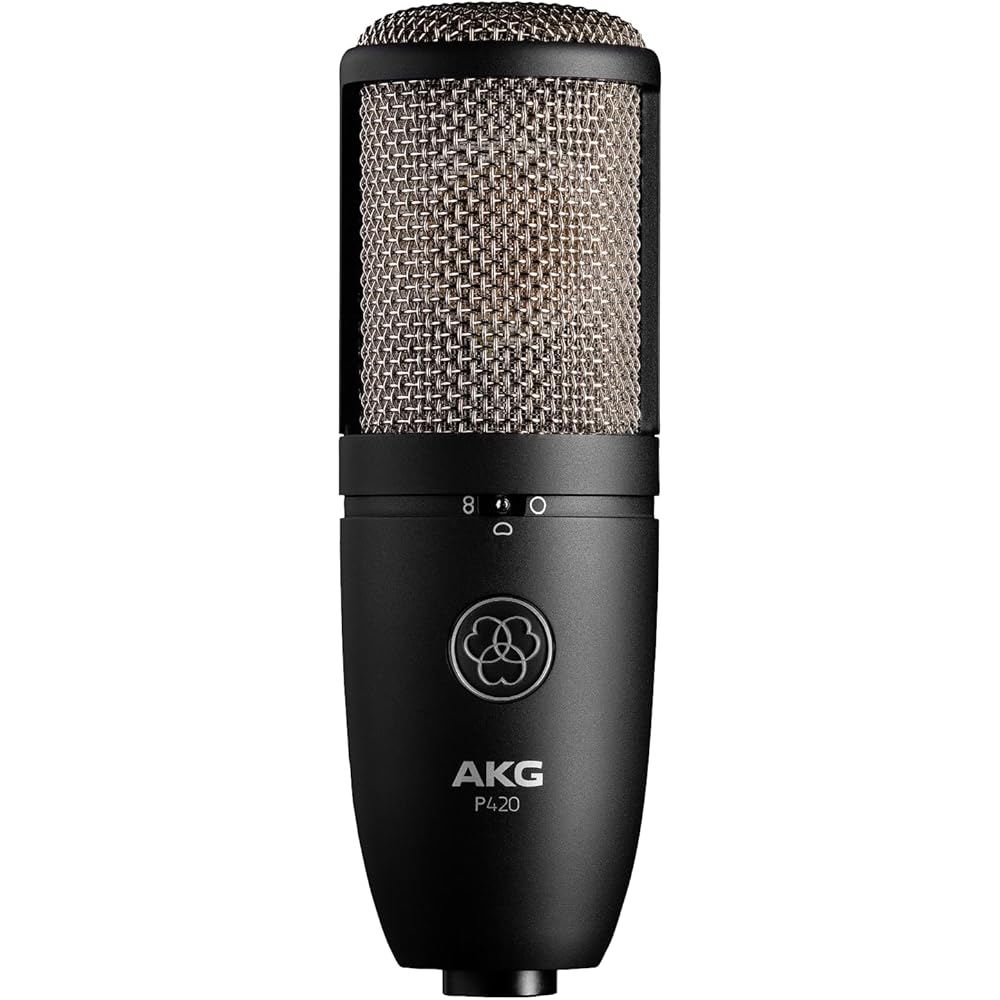

AKG P420 Project Studio Line Condenser Microphone

AKG P420 Project Studio Line Condenser Microphone

A microphone developed for private studios cardioid/ omnidirectional/ bidirectional

Product introduction

AKG (Akage) P420 Project Studio Line Condenser Microphone

Project Studio Line is becoming more common in recent recordings It was developed for project studios and private studios. While inheriting the excellent sound quality of AKG microphones, The optimal recording environment is not always in place Thorough noise countermeasures have been implemented so that even small studios can use it. It also has excellent robustness, and can be used even on harsher live stages.

• AKG's unique microphone development technology, which has produced a number of famous machines, has been generously introduced to achieve an extremely musical sound that reliably captures even the warmth of the sound source. • Each part has also been carefully selected, and even the smallest nuances have been recreated. • Equipped with a 20 dB pad, it is possible to collect sound with clear sound even with high sound pressure sources. • The housing is made of all-metal to reduce the impact of external noise. It is also equipped with a low-cut filter to suppress noise caused by noise, vibration, wind, etc. • Due to closely controlled directional characteristics, only the target sound is clearly captured. The P420 also comes with a holder with a suspension that suppresses the effects of floor noise. • Gold is evaporated on only one side of the diaphragm to prevent short electrodes even when in contact with the back plate. • Rugged front grille protects the inside of the microphone Furthermore, gold-plated connectors have excellent resistance to temperature and humidity, and prevent deterioration in sound quality due to aging.

Dual diaphragm configuration that reliably captures even afterglow and nuance. • Equipped with a large 1-inch diaphragm, it captures various sound sources as they are, from vocals, grand pianos, string instruments, and wind instruments to drums and percussion. With a high sensitivity of -31 dB, it reproduces fine aftertaste and fine nuances without leaving a trace. Furthermore, a dual diaphragm configuration is adopted, and the effects of proximity effects are greatly suppressed. • Orientation characteristics can be switched between cardioid/omnidirectional/bidirectional. Compatible with a variety of uses, from vocals and instruments to chorus and ambients. • Equipped with a 20dB pad and low cut filter. Extremely clear sound collection is achieved regardless of the sound source or usage environment. • Includes a holder with suspension and a hard carrying case

specifications Type: Condenser Orientation characteristics: cardioid/ omnidirectional/ bi-directional Frequency characteristics: 20Hz~20kHz Open circuit sensitivity: -31dB re 1V/Pa Maximum sound pressure level: 135dB SPL (pad off, THD 0.5%) Equivalent noise level: 15 dB SPL (A weight) Pad: 0/20dB Low cut filter: Flat/300Hz (12dB/oct) Impedance: 200 ohms or less Power: Phantom DC48V/3mA or less Connector: XLR 3-pin Dimensions (φ×total length): 54 x 166 mm (excluding protrusions) Weight: 512 g Accessories: holder with suspension replacement suspension rubber carrying hard case

Note (Disclaimer) > Please be sure to read

Since this is a condenser microphone, a power supply is required
