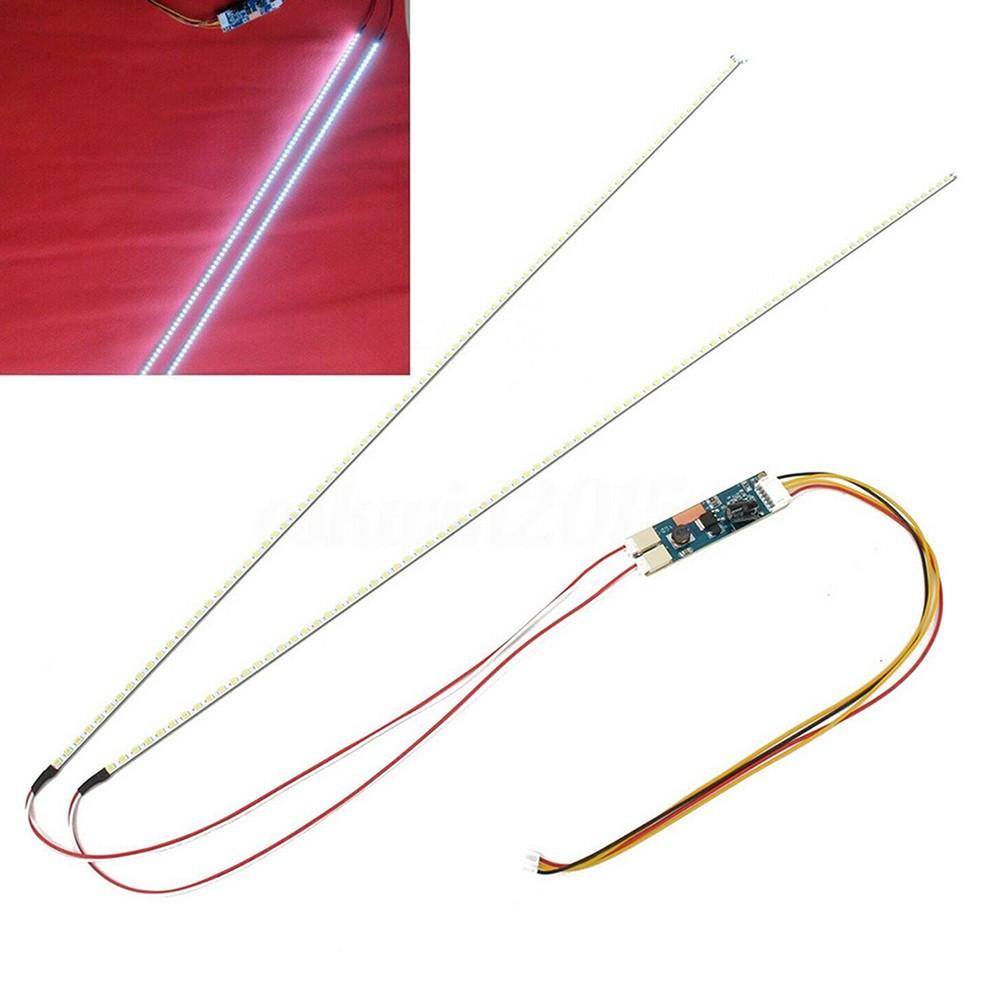

LED Light Bar 22 Inch 490mm CCFL Drive Board+cable

Features:

and Made of - materials, The backlight bar is perfectly designed for the screen, high brightness, and energy saving LED particles are compact, high-density arrangement, imported high-brightness LED light bar Long for service life, up to 100,000 hours Easy to install Use double-sided tape to it to the LCD groove of the display or other places installation: If your monitor uses an inverter, this kit can replace the drive to be inserted into the drive board If your monitor is a high-voltage integrated power supply board, then: power on the board, find 12V(capacitor), and then unplug the power supply, Use a multimeter to find and disconnect the connection with 12V(capacitor) Negative terminal, three wires on the board: 12V, ON, GND, 12v of the inverter is connected to the positive pole of 12v The electrode of the high-voltage integrated power board, connect GND to the negative pole, and connect to ON/OFF

put, it is to disconnect the high-voltage power supply, not the inverter Take electricity before the high voltage

Product parameters:

VIN: Voltage

for ENA: On/Off Dim: ADJ adjusts the brightness GND: Ground

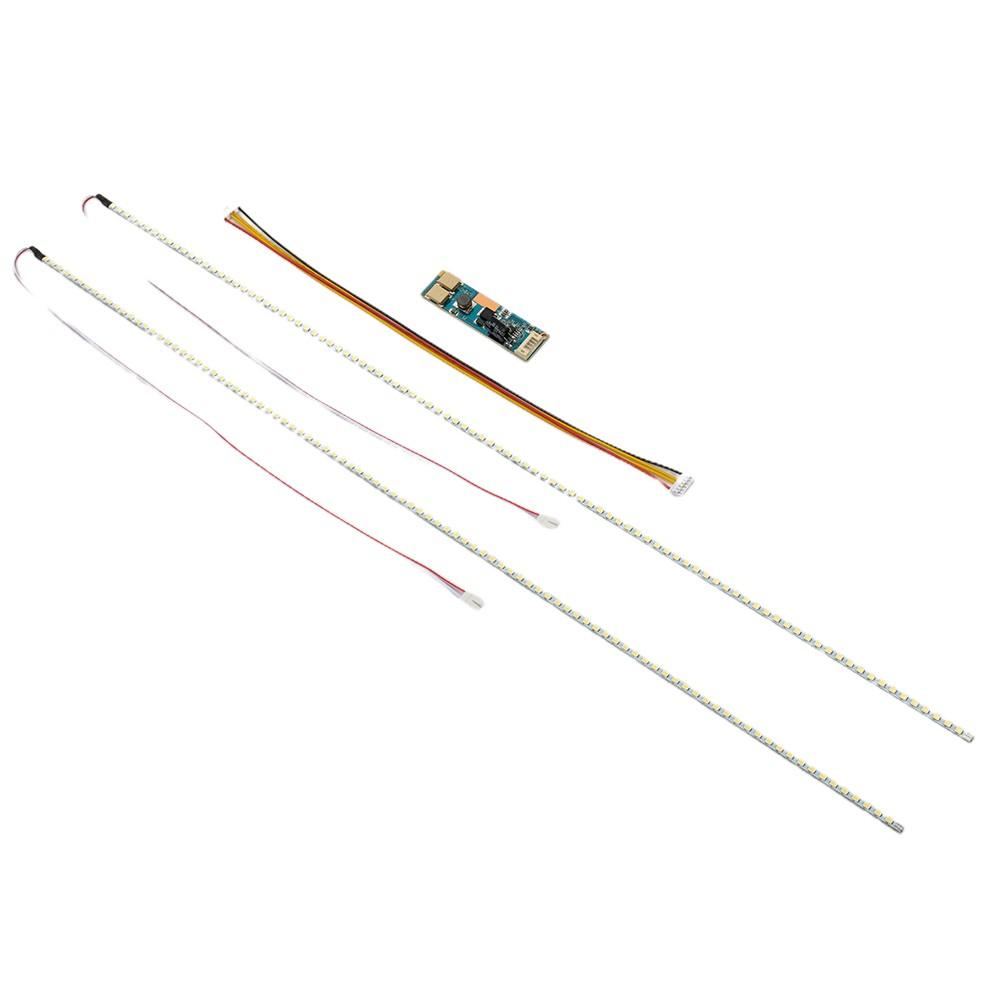

Package list:

for 2*LED light bar 1*Drive board 1* cable

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

for 2.Please allow slight manual measurement deviation for the data.
