Label:Yes

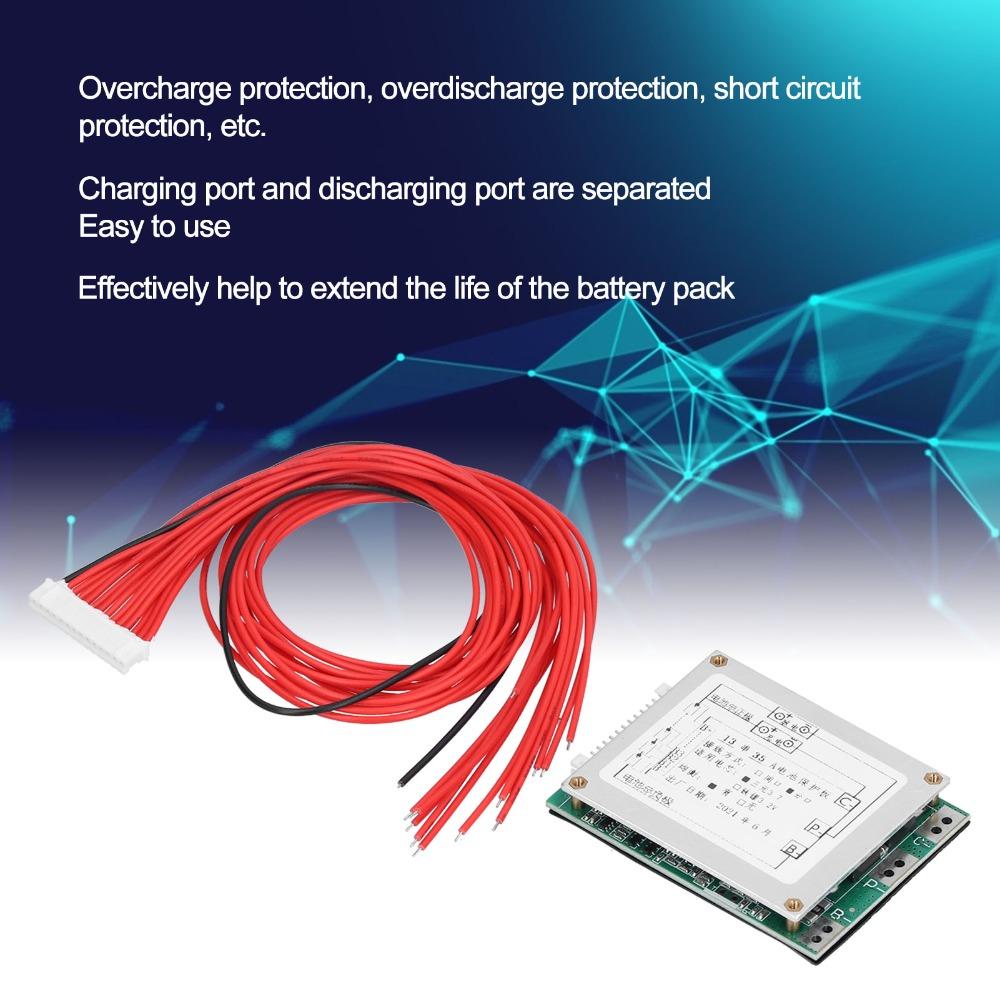

5,Stops Overcharging During Use:Suitable for power applications including electric bicycles, where it helps avoid battery overcharging during the charging process.

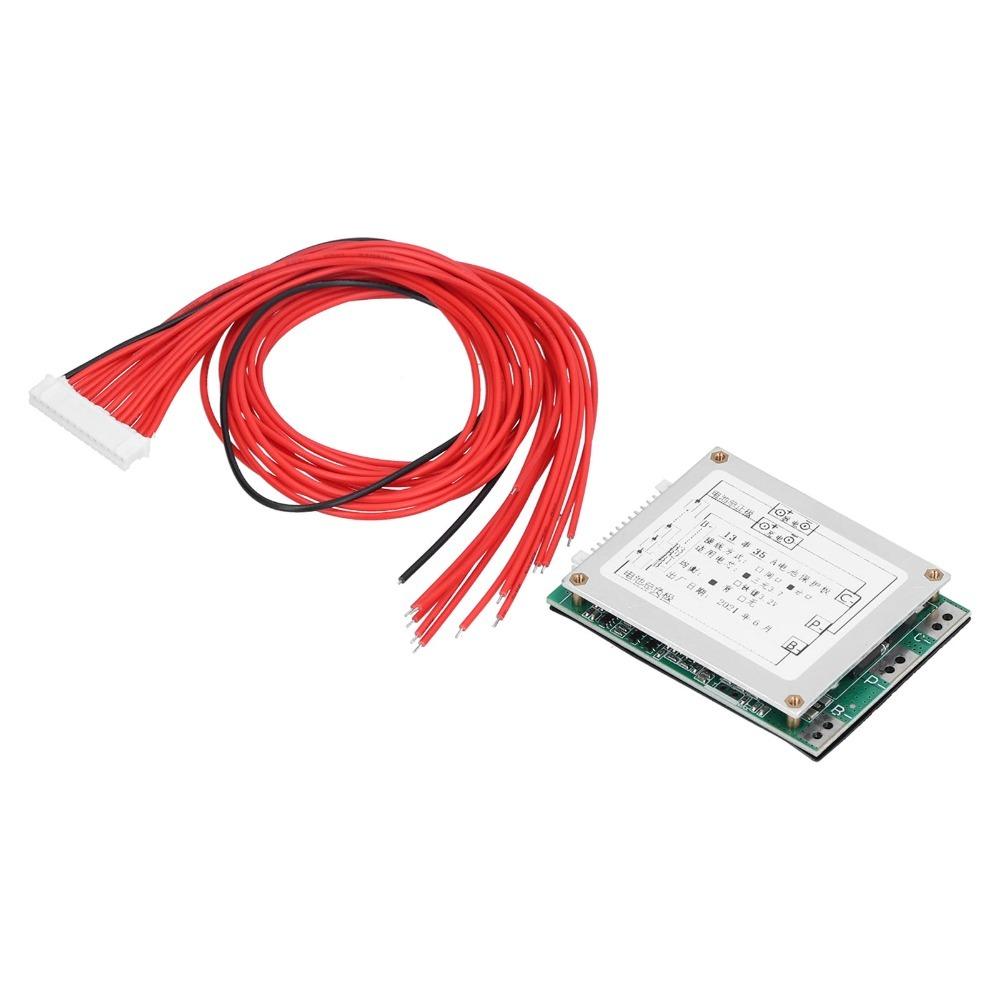

2, Separate Charging & Discharging Ports:Features independent charging and discharging ports, simplifying wiring connections and improving user convenience.
3,Helps Extend Battery Lifespan:Designed to help maintain battery health through balanced charging and discharging control, contributing to longer battery pack service life.
1, Multiple Protection Functions:Includes essential safeguards such as overcharge protection, over-discharge protection, and short-circuit protection for enhanced operational safety.
4,Reliable PCB Construction:Utilizes quality PCB materials with a compact design, offering reliable performance and easy maintenance or replacement when needed.
Specifications:

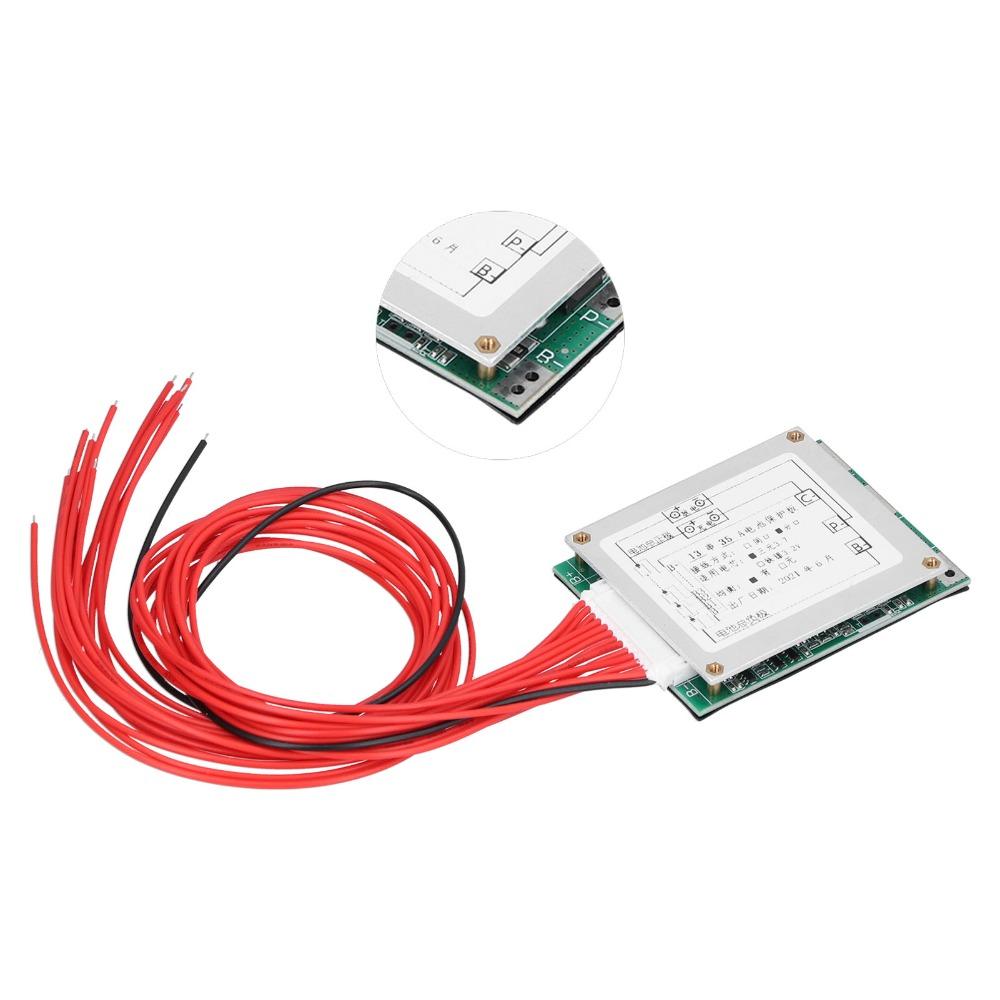

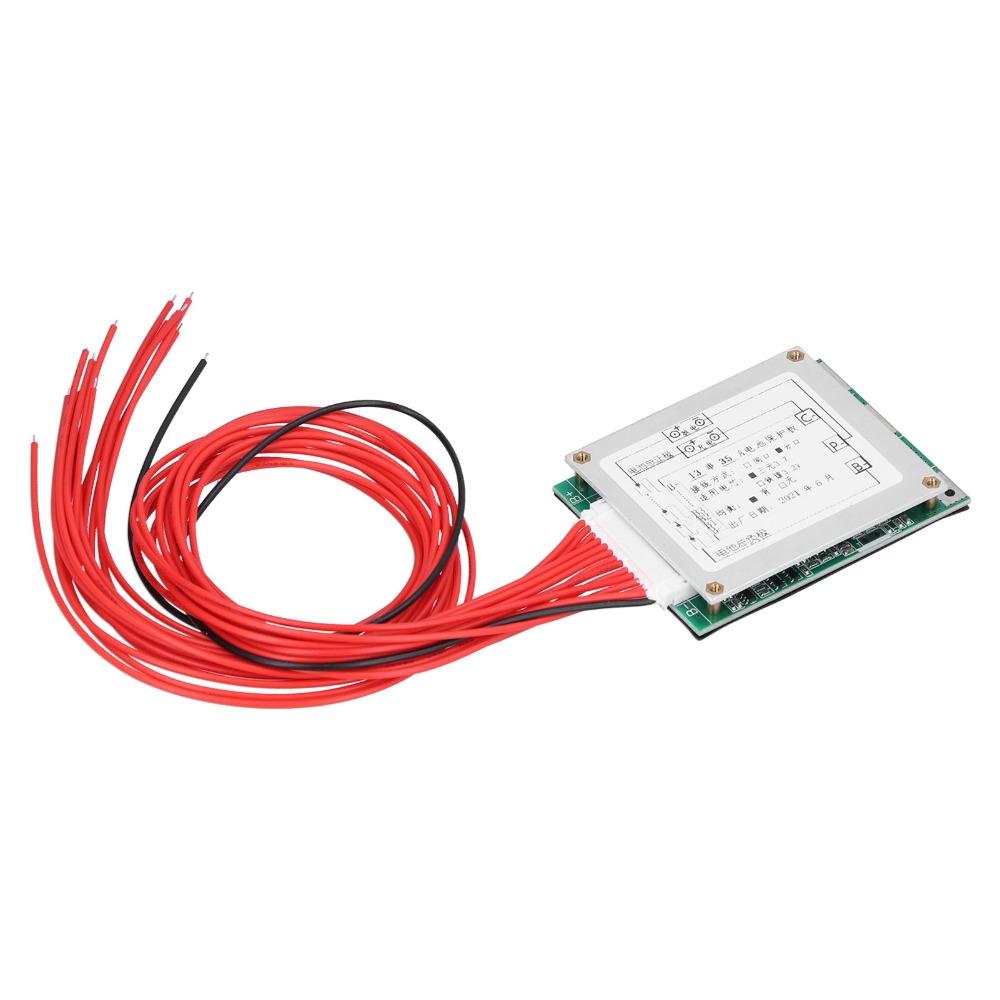

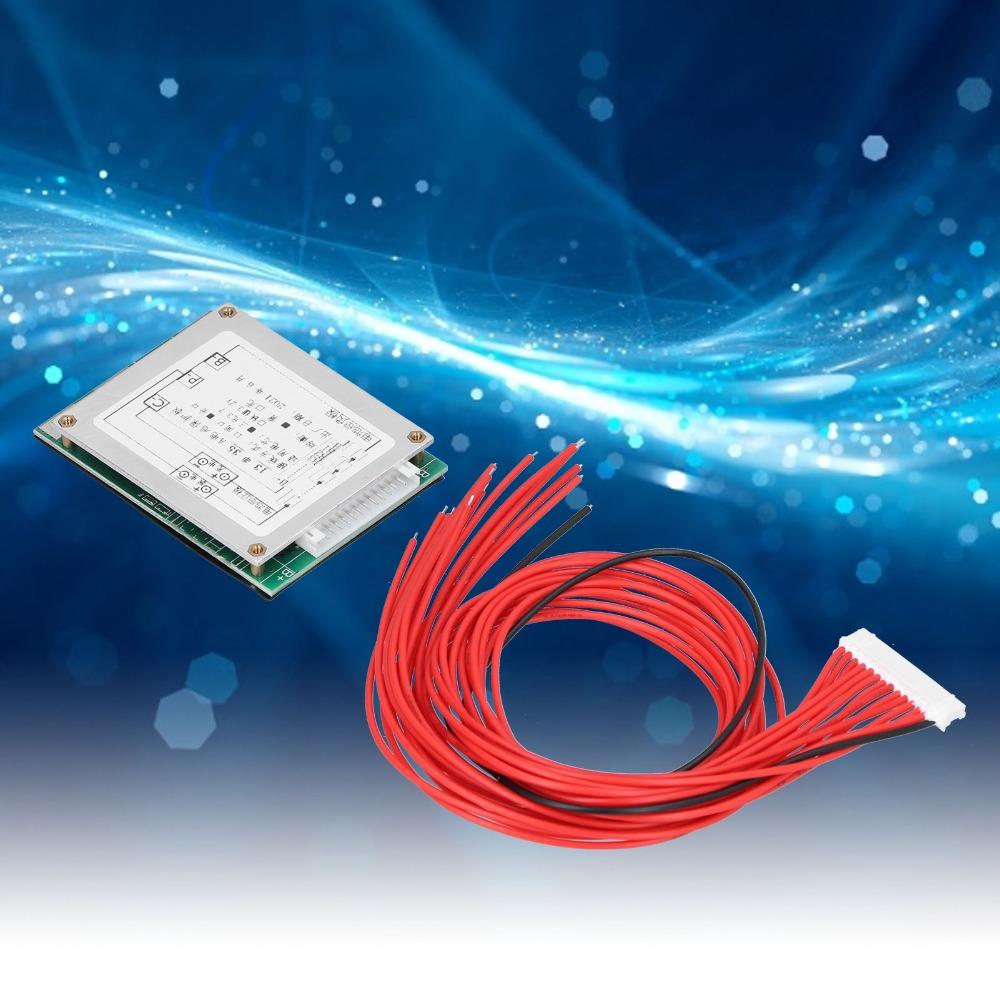

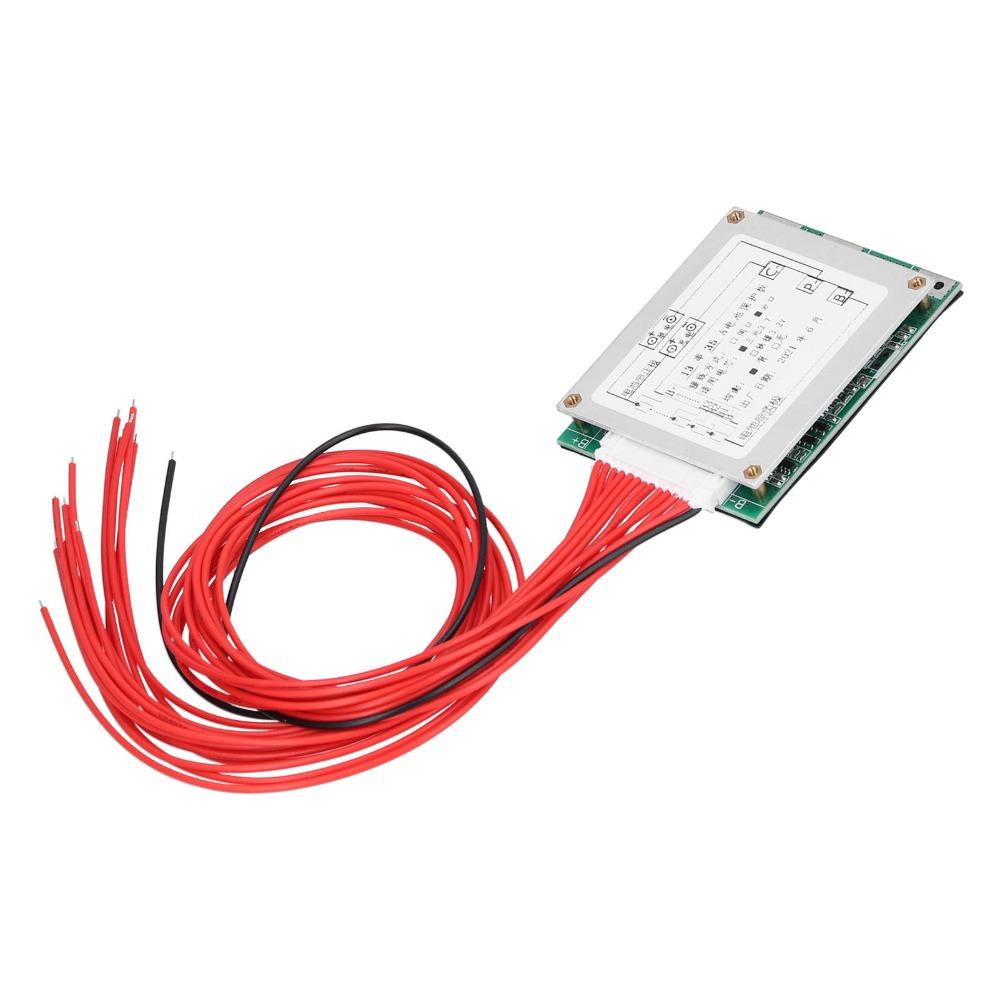

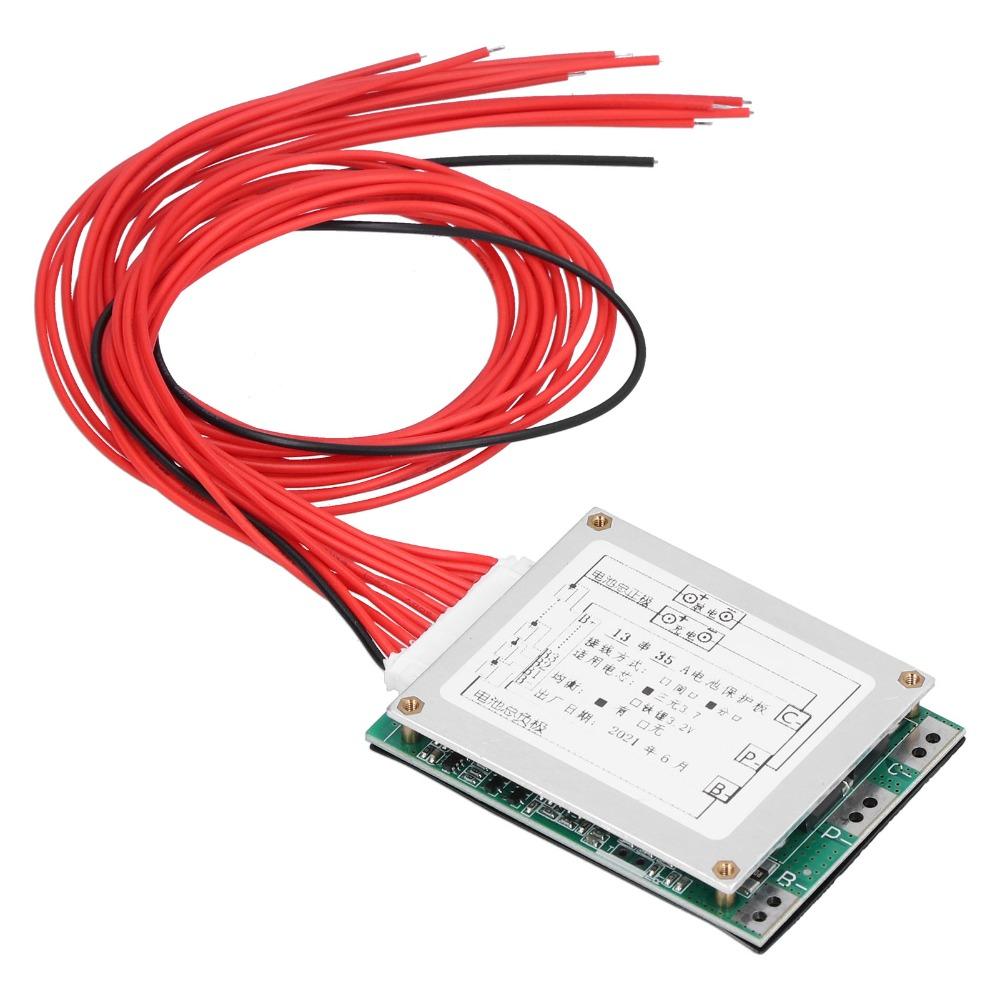

Item Type: Battery Management System PCB Protection Board
Working Voltage: DC 48V
Number of Strings: 13S
Wiring Mode: Split port
Balance: Yes
Applicable Battery Type: Ternary lithium battery
Color: Green and Silver
Cable colors: red and black

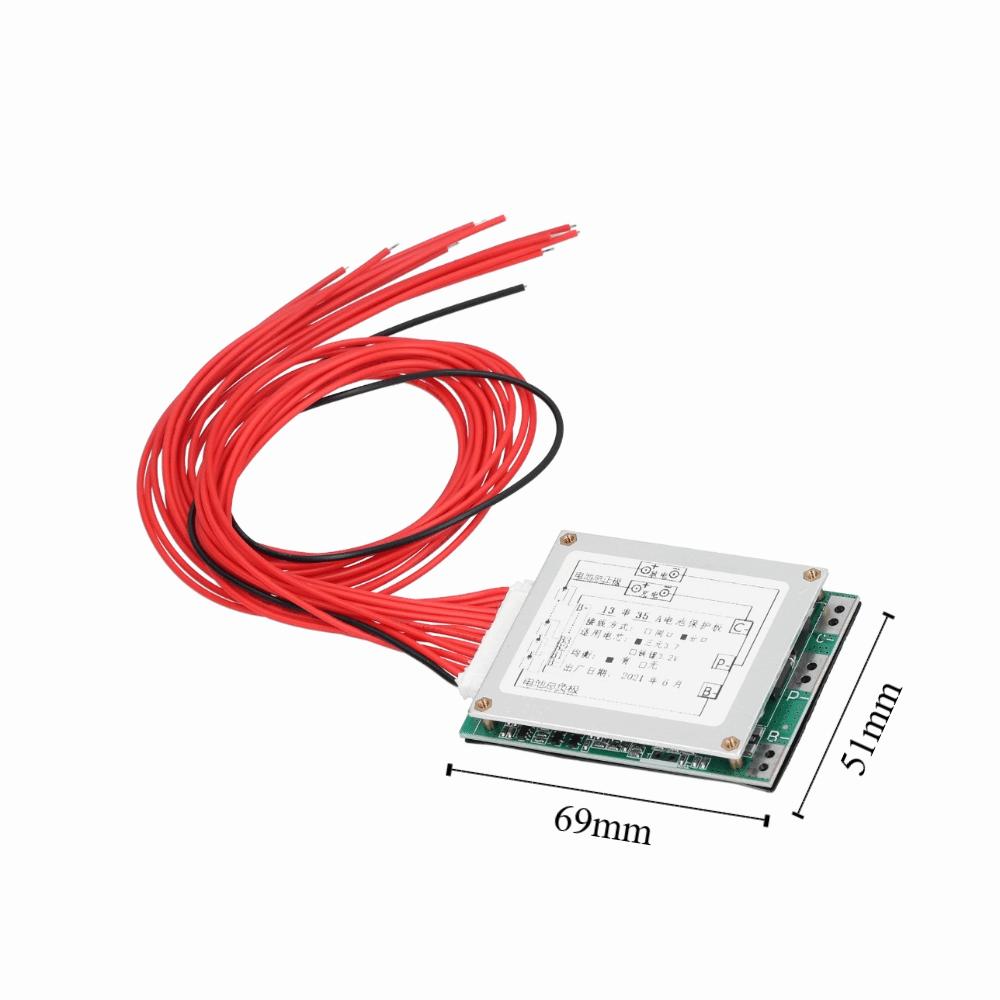

Size: 69 * 51 * 8mm(2.72 * 2.01 * 0.31in)
Cable length: 300mm(11.81in)
Purpose: Used to stop overcharging of electric bicycles
Applicable Scene: Power charging
Discharge:
Continuous discharge current:35(maximum)A
Instantaneous discharge current:100A
Charge:
Charging voltage:54.6V
Charging current:8 (maximum)A
Overcharge protection:
Overcharge detection voltage:4.28±0.05V
Overcharge protection delay:100mS
Overcharge release voltage:4.08±0.05V
Electric quantity balance:
Cell balance detection voltage:4.2±0.025V
Cell balance release voltage:4.2±0.05V
Cell balance current:60±5mA
Over discharge protection:
Overdischarge detection voltage:2.55±0.08V
Overdischarge detection delay:50mS
Overdischarge release voltage:3.0±0.1V
Overcurrent protection:
Overcurrent detection voltage:150mV
Overcurrent detection delay:15mS
Overcurrent protection current:120±5A
Overcurrent protection release conditions:Disconnect load
Short circuit protection:
Short circuit protection conditions:External load short circuit
Short circuit detection delay:200uS
Short circuit protection release condition:Disconnect negative switch
Internal resistanceMain circuit conduction internal resistance:≤15 milliohm
Self consumptionWorking current:≤50uA
Sleep current (when the battery is over discharged):≤10uA
Operating temperatureTemperature range:-30~+80℃
Package List:
1 x Battery Management System PCB Protection Board
1 x Patch Cord Set
Note:
1. The Difference Between the Split Port and the Same Port: The default charging current of the split port is 8A, and the positive and negative poles of charging and discharging must be separated; the charging current and discharging current of the same port are the same, and the charging and discharging are at the same positive and negative level.
2. Without Equalization and with Equalization: Equalization is to discharge the high voltage cells with resistors during charging, and wait for the low voltage cells to charge up the voltage to achieve the consistency of each voltage and improve the performance of the entire battery pack.
3. Before installing the protection board, the batteries must be well matched (the voltage difference of each battery is not more than 0.05V, the internal resistance difference is not more than 5 milliohm, and the capacity difference is less than 30mAh). The better the battery consistency, the farther the distance can be run. The working performance of the protection board is better.
4. The batteries should be connected in parallel and then connected in series, and ensure that the welding is correct (1865o batteries are spot welded with nickels plates, and other batteries are welded with solder). Do not use screws, it is easy to burn out the IC of the protection board.
