5,Automatic Plant Watering Application:Ideal for automated irrigation of potted plants, providing clear humidity readings and watering control.

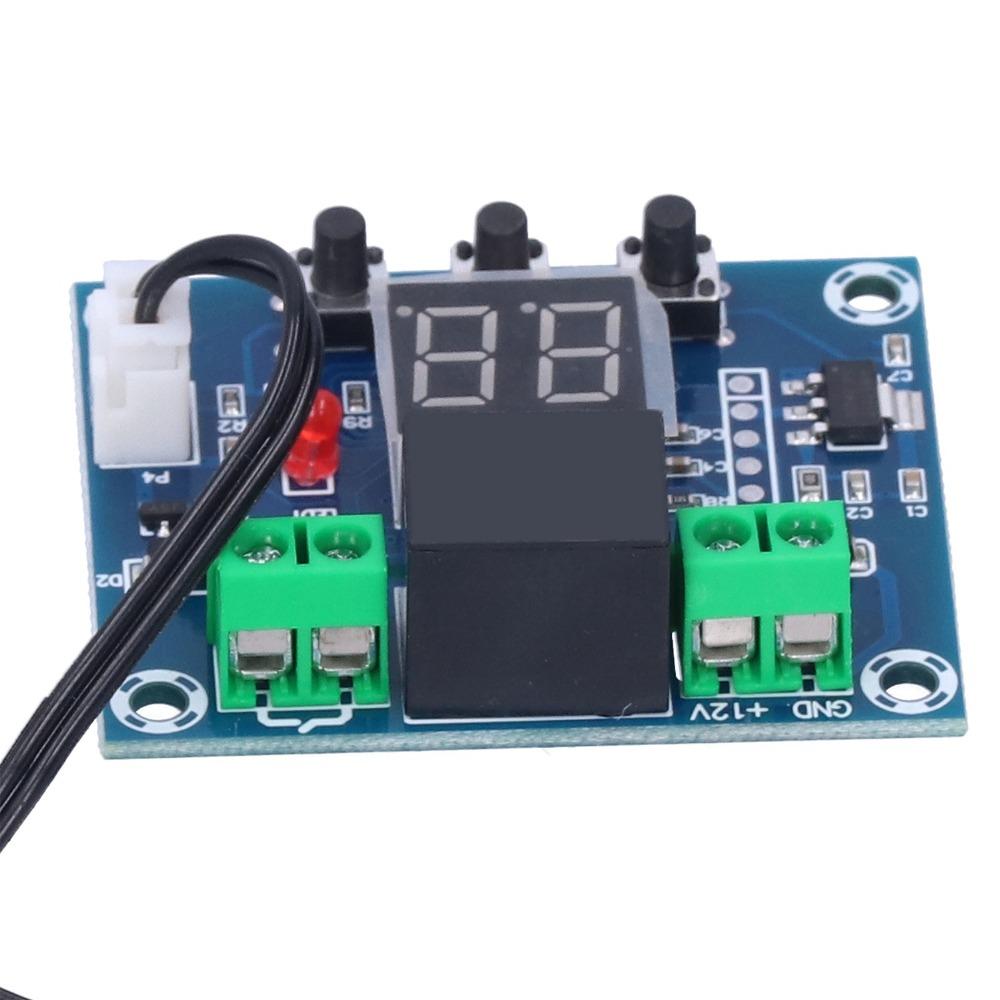

3,Reliable PCB Construction:Built with quality PCB materials to ensure stable performance and durability during use.
4,User-Friendly Usage:Designed for straightforward setup and intuitive control, supporting automated watering functions.

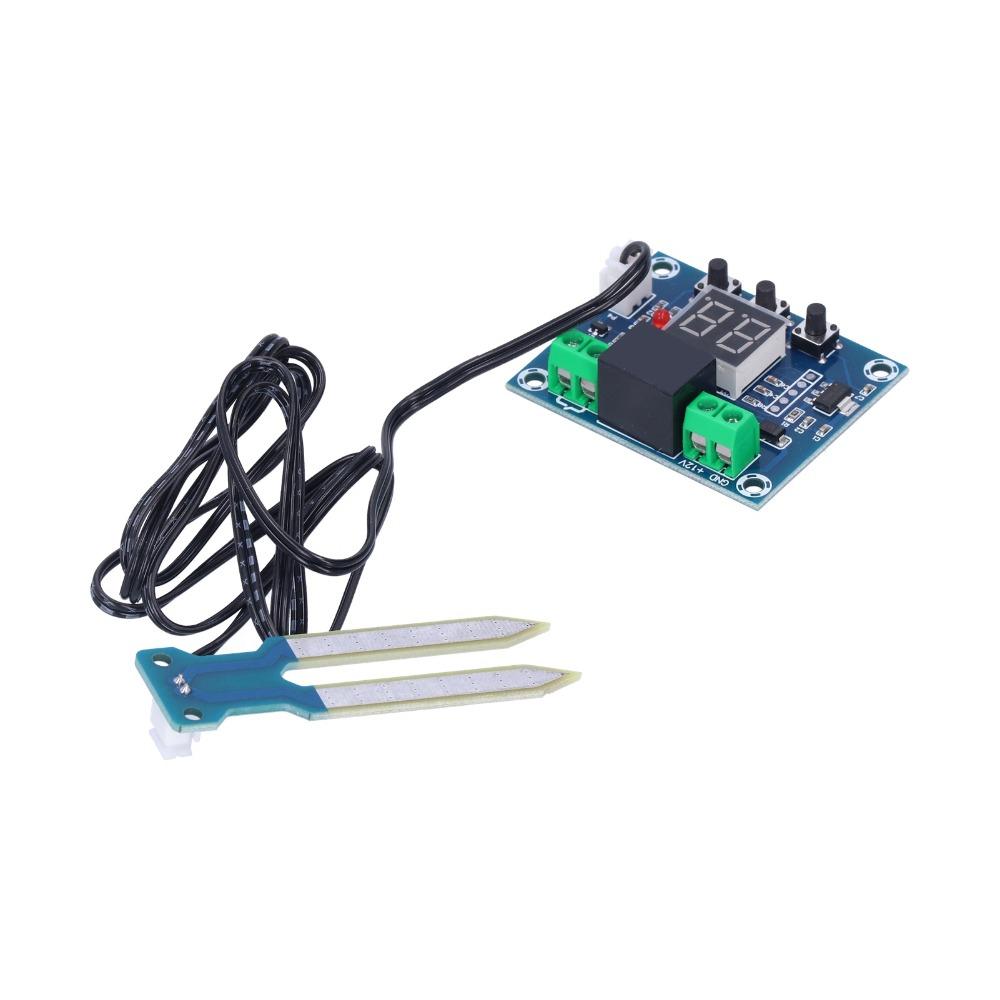

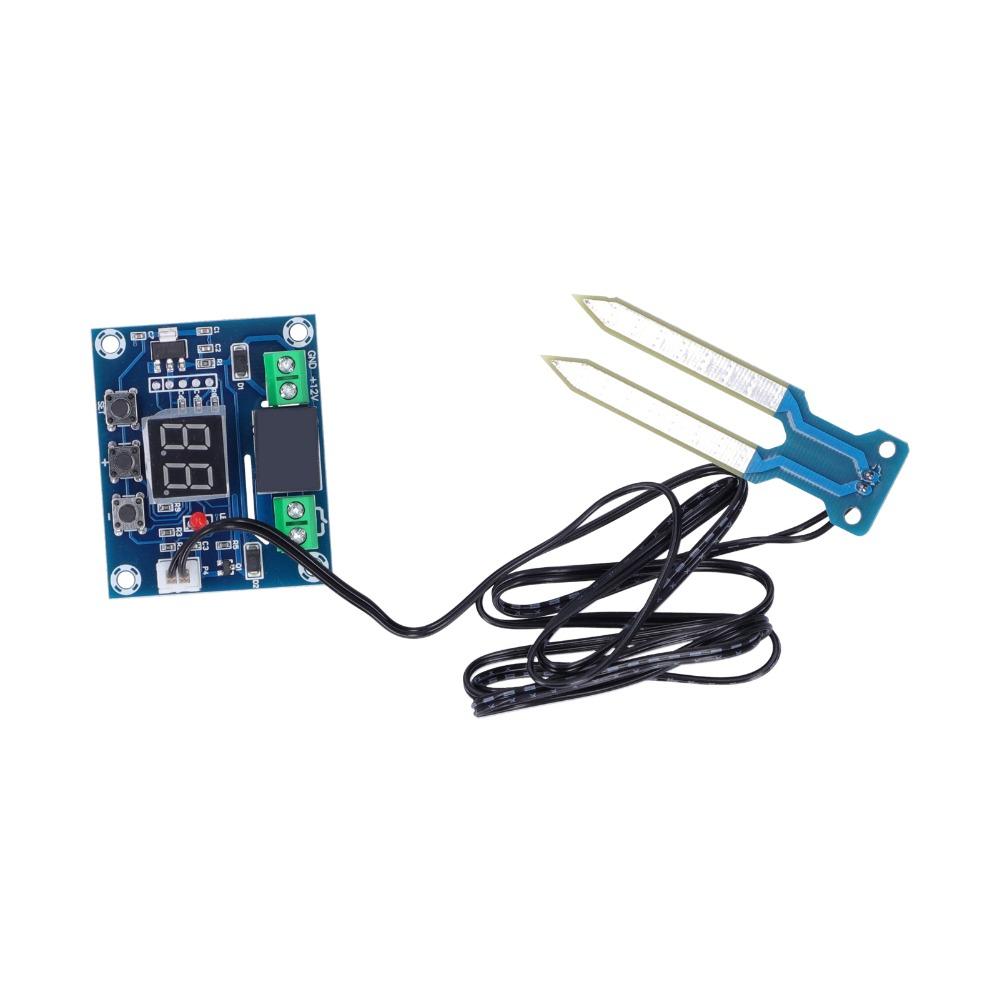

1,Direct Soil Humidity Detection:The probe can be inserted directly into soil to measure humidity levels, with a detection range of 20-99% relative humidity.
2,Digital Display & Automatic Pump Control:This is a digital display of soil humidity. When the humidity is lower than the set value, start the pump to start watering, and stop watering when the humidity reaches the set value
Specifications:
Item Type: Humidity Controller Module
Model: XH-M214
Material: PCB
Purpose: Automatic watering and sprinkling for potted plants with digital display
Working Voltage: DC12V
Control Current: 0-10A
Humidity Range: 20-99%RH
Control Accuracy: ±1%RH
Size: Approx. 52 x 43 x 16mm / 2 x 1.7 x 0.6in
Color: Blue
Net Weight: approximately 28 grams
How to Use:
1. F0 set start humidity (the humidity of solenoid valve or water pump starts to work)
Press the "SET" button to display "F0" and press the "SET" button to display the starting humidity, press the + / - button to "set" the humidity value
2. Set F1 to stop humidity (the humidity of solenoid valve or pump stops working)
Press the +/- key to switch to "F1", press the "SET" key to display the stop humidity value, press the + / - key to set the humidity value
3. F2 for humidity correction
There is no need to correct errors during normal use. Using multiple modules to correct the values at the same time is conducive to unified management operations.
Package List:
1 x Module
1 x Connection Line
1 x Probe
Please follow the indicated wiring diagram. You can choose the appropriate wiring method according to the load voltage used
