Description:
Continuous 360-degree rotation. No potentiometer adjustment is required. High-precision POM gears ensure minimal clearance, smooth operation, and no teething.
The 360-degree servo is controlled by PWM, which controls its rotation speed and direction. A PWM of 500-1500 US controls forward rotation. The smaller the value, the faster the rotation. A PWM of 1500-2500 US controls the opposite, while a higher value results in a faster rotation. A PWM of 1500 US means stop; it can only rotate, not position.
Features:
1. Uses a high-quality motor with high-quality brush material.
2. Practicality, durability, and lifespan far exceed those of 9g small steering gears.
3. Strong compatibility, whether in program or mechanical structure, as long as compatible processing is possible.
4. Simple control, similar to traditional 9g small steering gear control methods.
5. Compact size, excellent design, and self-contained cross output shaft. 6. Supports continuous rotation.

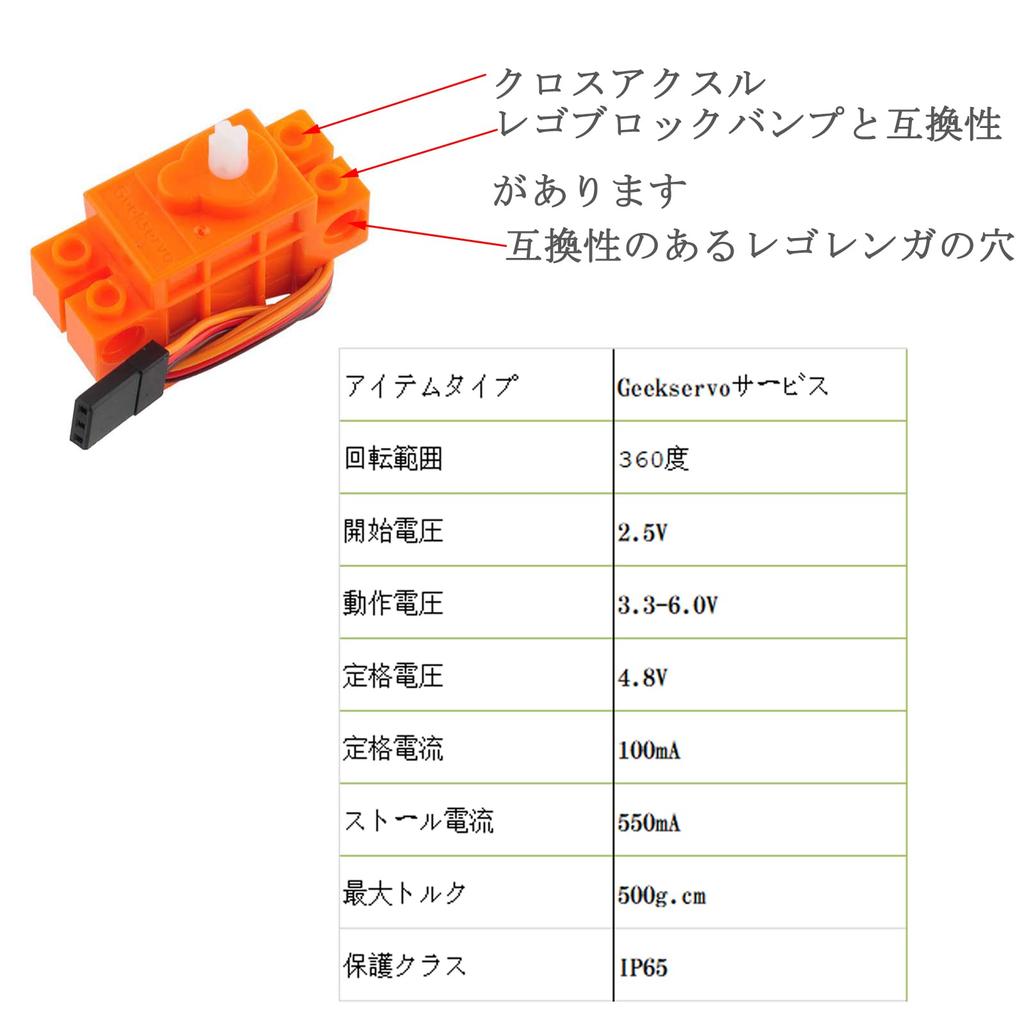

Specifications:
Product: Programmable GeekServo
Rotation: 360 degrees
Starting Voltage: 2.5V
Operating Voltage: 3.3-6.0V
Rated Voltage: 4.8V
Rated Current: 100mA
Stall Current: 550mA
Stall Torque (Max): 500g.cm
Protection Class: IP65
Color: Green
Applications: DIY RC robots, micro:bit, smart cars, etc.
Package List:
4 x Orange Geekservo 360 Degree Rotation Programmable Servo

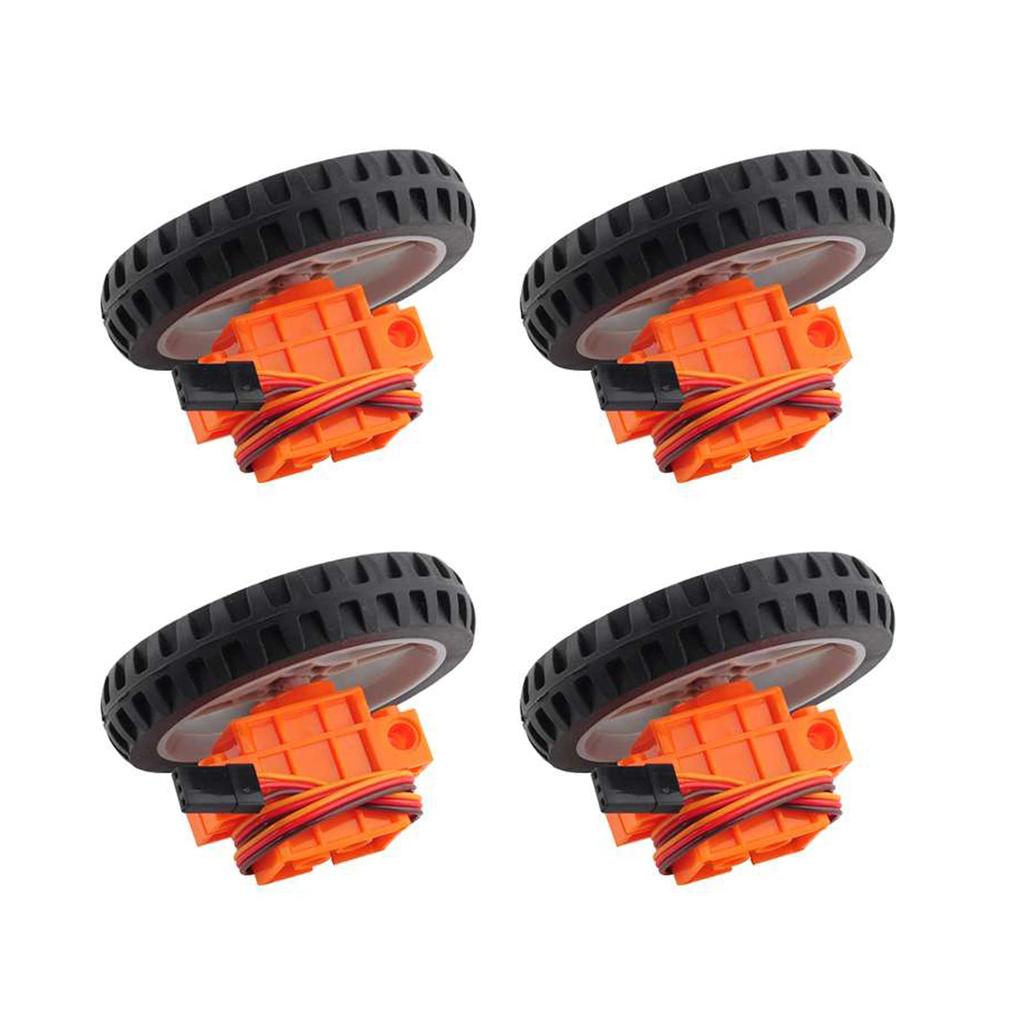

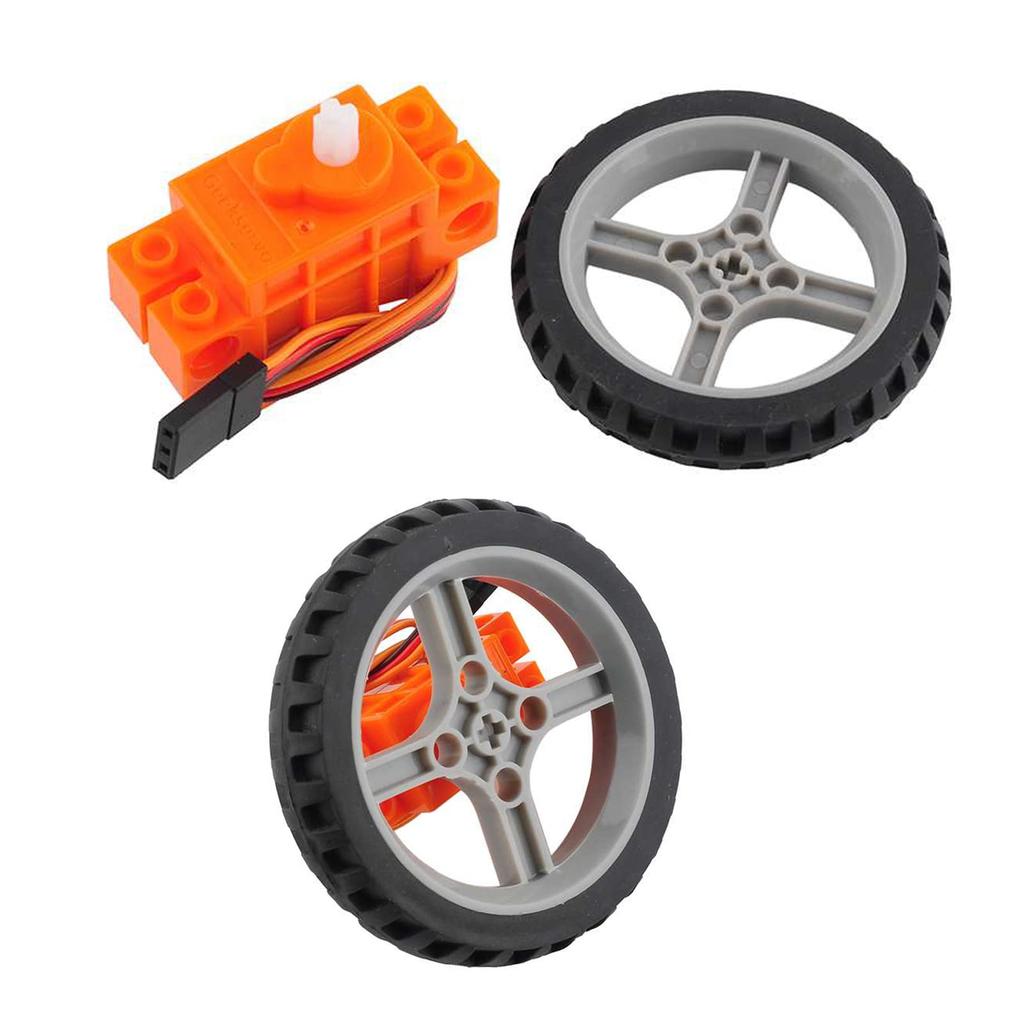

4 x Wheels
✨[Geekservo Servo] Programmable; Maximum Stall Torque is 500g.cm; Operating Voltage: 3.3-6.0V; Protection Class: IP65.
✨[Strong Compatibility] These geekservo servos are compatible with micro:bit building bricks.
✨[Continuous 360-Degree Rotation] 360-degree continuous rotation (no potentiometer adjustment required); the 360-degree servo is PWM-controlled to control its rotation speed and direction. A 500-1500US PWM controls forward rotation.
✨[Practical and Durable]: High-precision potentiometer; silicone wear-resistant wire; single-chip microcomputer control; environmentally friendly POM material; long service life.
✨[Package List]: 4 x Orange Geekservo 360-Degree Rotation Programmable Servo; 4 x Wheels
