Feature:

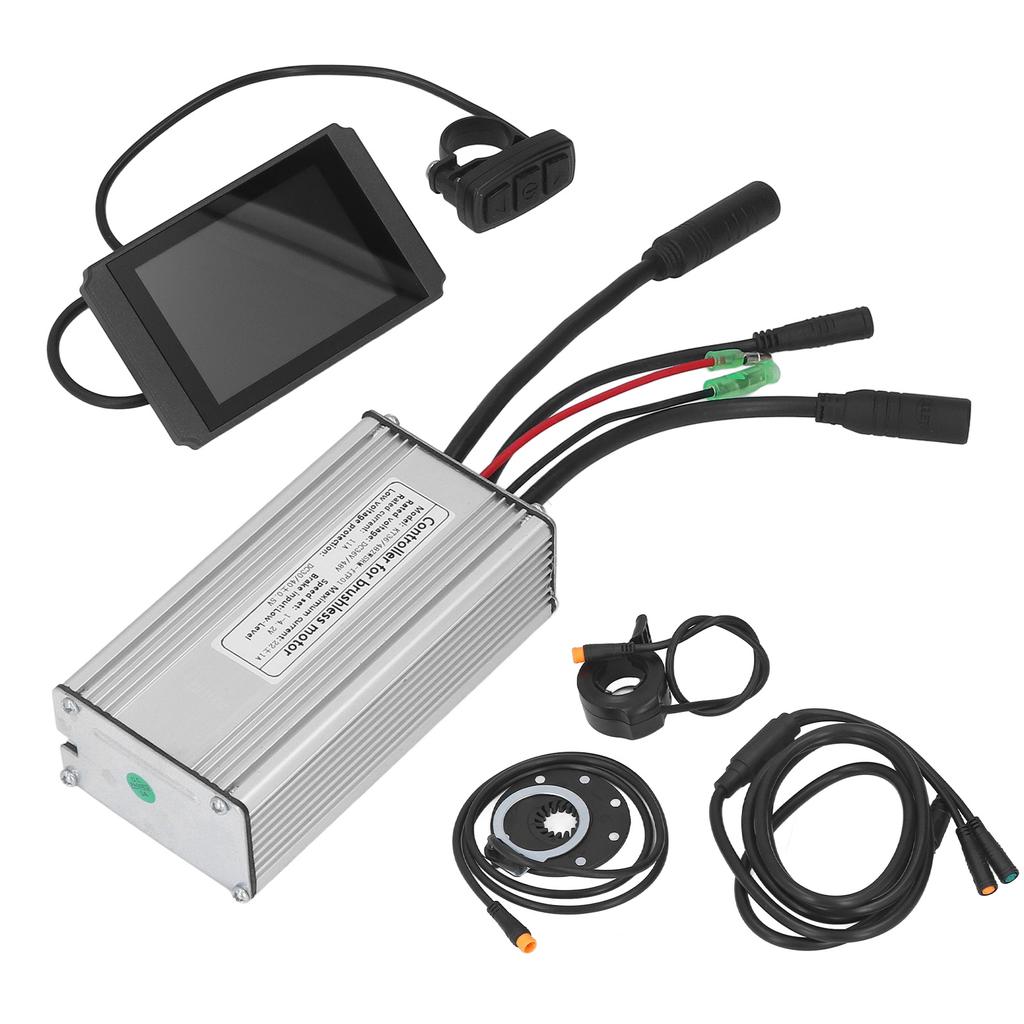

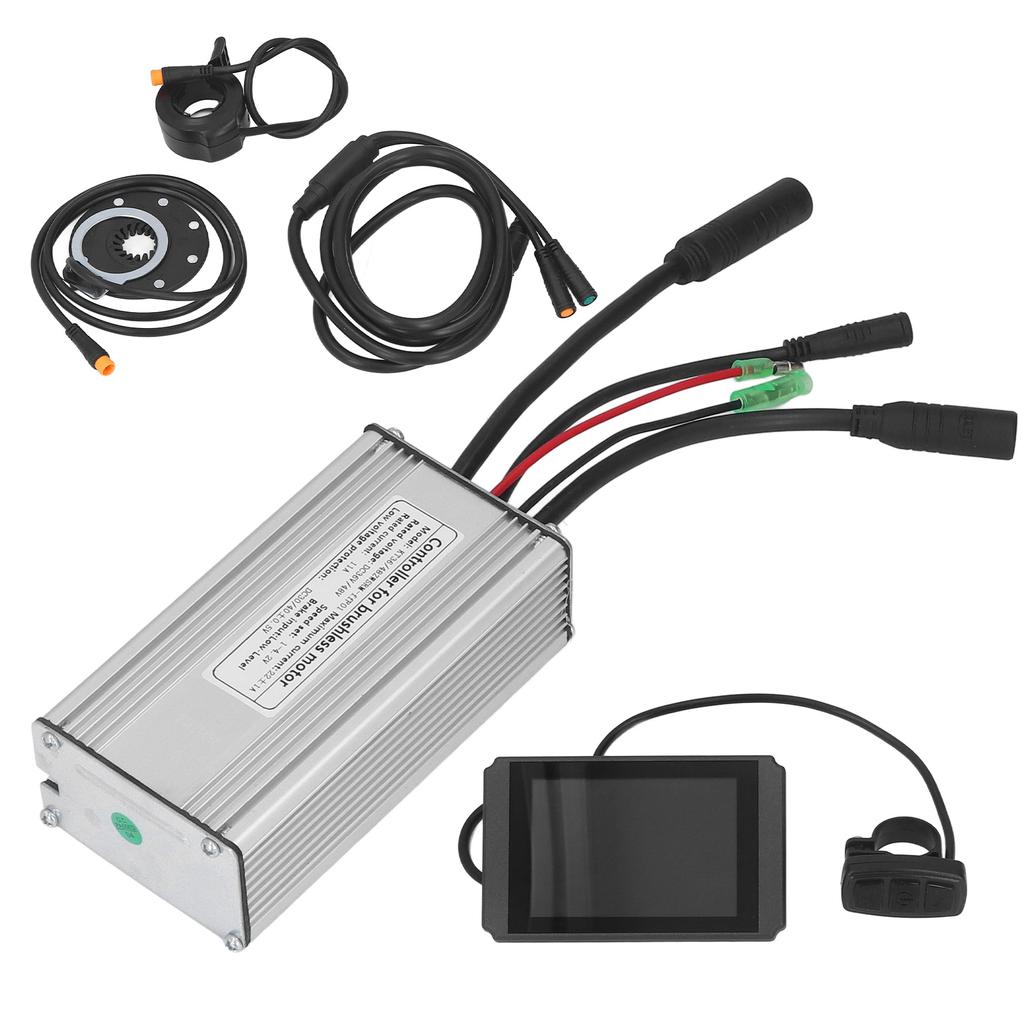

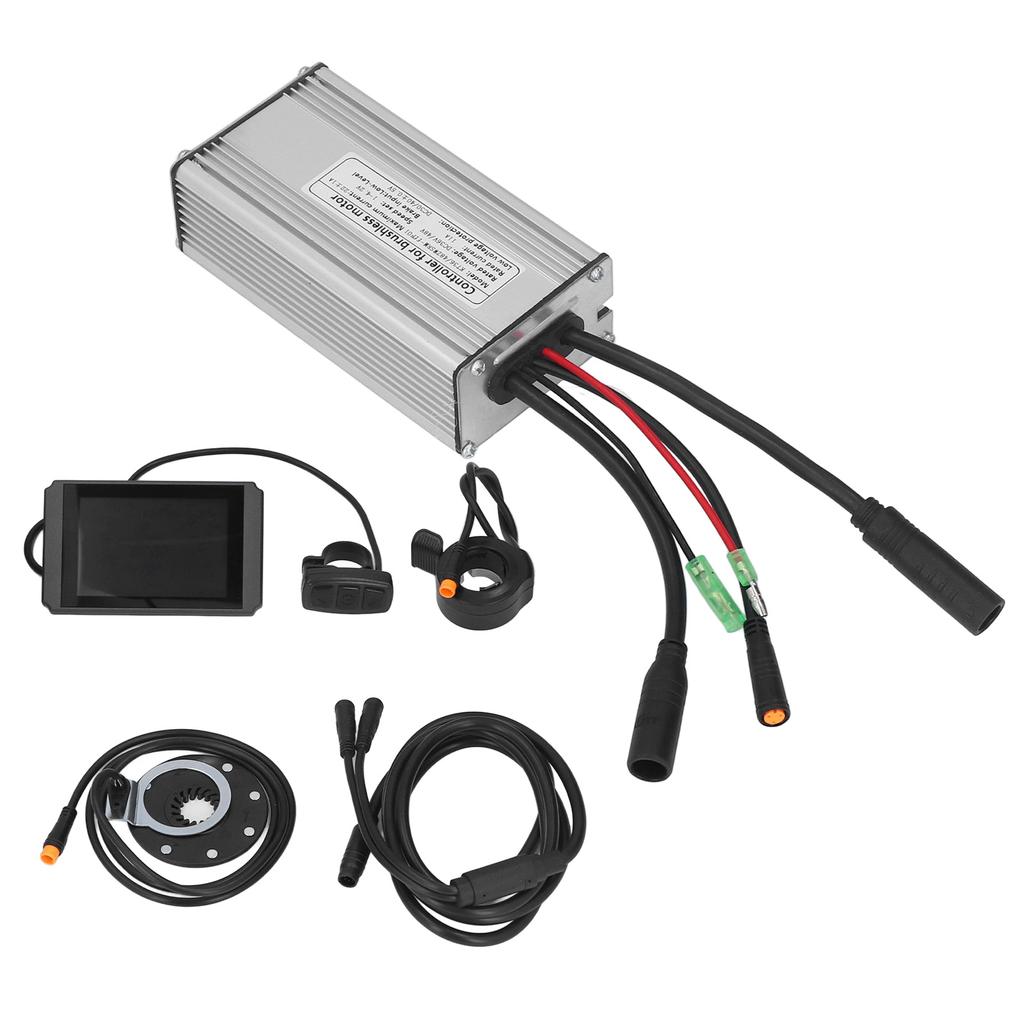

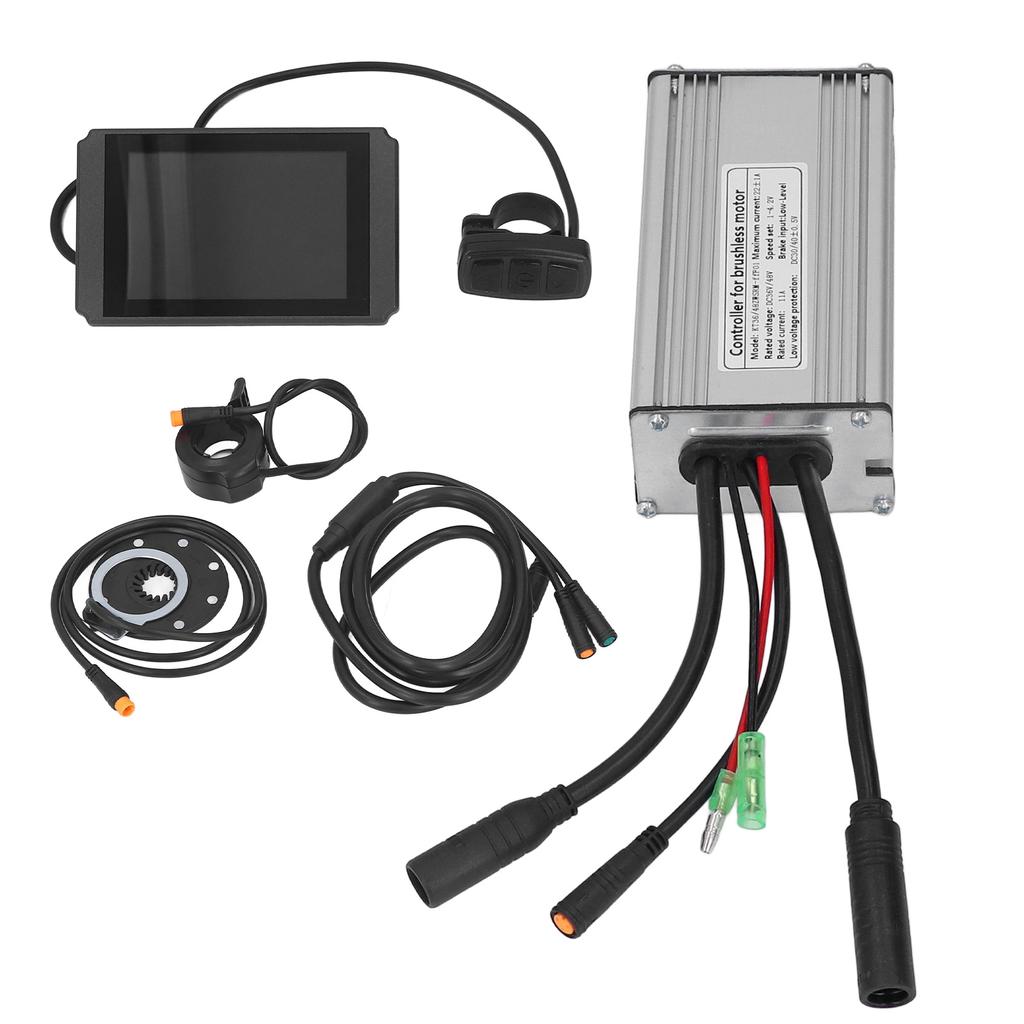

1. Accessory Set: Electric bike conversion kit includes 22A controller, S6 instrument, 130X dial, 8C booster and 1 to 2 connecting line.
2. Selected Material: The controller housing is made of aluminum alloy with grooves designed to protect the internal circuitry from thermal overload due to good heat dissipation.
3. Waterproof Instrument: Constructed from ABS, the instrument provides better protection for the internal circuit and makes it more durable.
4. LCD8H Display Functions: Power, backligh , headlight, brake display, temperature, one way time, total travel time, current speed, average speed, maximum speed, total one way distance, 6KM H thrust assist.
5. Strong Compatiblity: Fits for controller kit for brushless 500W gear motor, DIY electric bike, electric bike, electric scooter, folding car, etc.
Specification:
Item Type: Bicycle Modified Kit
Product Material: Aluminum alloy and ABS plastic
Weight: Approx. 785g 27.69oz
Product Size: Controller box Approx.120x65x40mm 4.72x2.56x1.57in, instrument Approx.107x67mm 4.21x1.64in
Controller Rated Voltage: 36V DC 48V DC
Controller Rated Current:11A
Controller Maximum Current: 22+ 1A
Controller Speed Setting:1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
Applicable Motor Power: 500W
Joint Type: Fully waterproof joint
1 To 2 lines Description: an end is connected to the controller, and the other ends are connected to the instrument and dial
Controller Lne Definition:
1. Red and Black Single Cable: Power cable
2. Black Single Large Wire (9PIN) : Motor wire
3. Black Single Wire (9PIN) : 1 to 2 wire
4. Black Single Wire (3pin) : Power assist sensor wire
LCD8H Instrument Function: Up button, switch button, down button, power assist sensor mark, battery capacity indicator, operation sign, single trip time, total travel time, battery voltage, brake display, 6km h thrust assist, ride speed (metric), maximum speed, average speed, travel distance, total distance, backlight and headlight, ambient celsius, aAmbient fahrenheit.
Package List:
1 x Controller1 x Instrument1x Instrument Mounting Frame4 x Instrument Mounting Frame Gasket2 x Instrument Mounting Frame Screw1 x Accelerator Thumb Shifter 1 x Booster Sensor Gasket1 x Instrument Specification
1 x 1 To 2 Connecting Line1 x Controller Wiring Specification
Note:
The modification kit must be fully waterproof.
