High-concerned chemical : None
Model Number : Digital Inclinometer
Origin : Mainland China
Function : digital level box
Magnetic Digital Level Angle Finder LCD Backlight Level Meter Inclinometer 4*90° Magnet Protractor Level Box For Woodworking

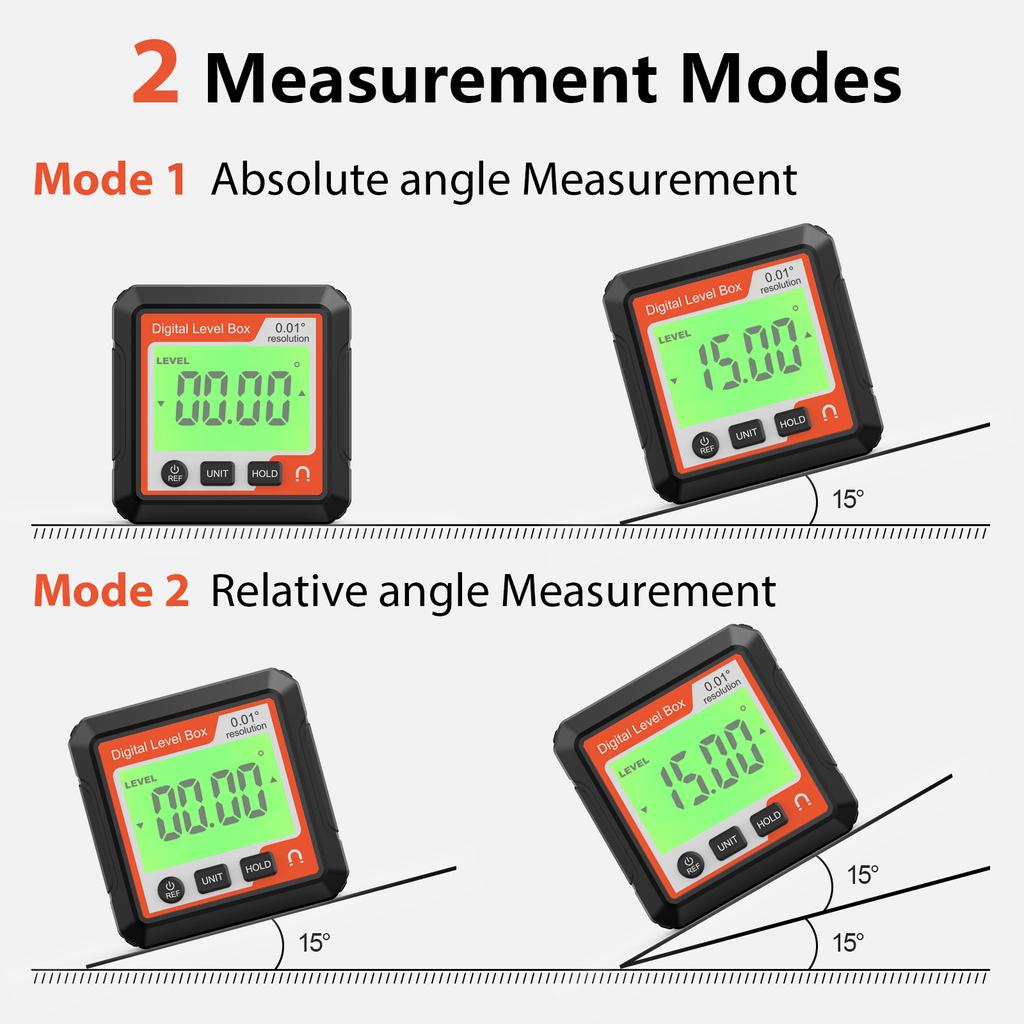

This versatile inclinometer has a large Large LCD display screen, and the large fonts and backlight make you can see the data more clearly even in dark spaces. The angle inclinometer supports absolute and relative measurement, the readout of the absolute measurement mode is the relative angle of the absolute level, and the readout of the relative measurement mode is the angle compared to the absolute level. Multi-purpose measuring tool, protractor, inclinometer, and level in one design, 4*90° measurement, with data, hold function to freeze the display for easier reading, angle and slope conversion function. It is widely used in the woodworking industry for the accurate cutting of wood angle; autorepair industry for the accurate control of tire angle; machining industry for the accurate position of tool working angle as well as the rotation angle of large vehicle arms, etc.
Features:
– Magnetically adsorbed on the measuring surface and can be attached to the workpiece to be measured
- Conversion of relative measurement to absolute measurement
- Angle and slope conversion
- Data locked for easy reading
-Portable size for easy use with other measuring tools to extend the measurement range
Specifications:
Name: Digital Inclinometer
Material: plastics
Color: black+white, red+white, red+red (optional)
Battery: 2 * AAA battery (not included)
Measurement ranges: 4 * 90°
Display: LCD backlight display
Display resolution: 0.05°(<100°), 0.1°(100°~180°)
Reading resolution: 0.1°
Measuring resolution: 0.2°
Working temperature: 0-40℃
Item size: 58 * 58 * 25mm / 2.28 * 2.28 * 0.98in
Item weight: 79g / 2.79ounce
Package size: 80 * 60 * 38mm / 3.15 * 2.36 * 1.50in
Package weight: 82g / 2.89ounce
