Function:
* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.
* Chip: HD Sony/OV2053HD
* Viewing Angle: 155 175 Degrees Visible Range .
* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)
* Signal Format: NTSC or PAL
* Image Resolution: 92W/200W pixels
* Video Output: AHD Video Signal or CVBS Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens: 14/16MM Fisheye 6 glass Lens .
* Waterproof: IP68 /IP69
* Working Power Supply: DC 12V 24V, 2A
* Working Temperature: -30 °C +70°C
* Maximum Power: 3W
Tips:
1. Because there may be slight differences between cars produced in different countries, please check the size before buying.
2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables. (The trajectory camera only supports AHD video signal)
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
Tip:
because there may be slight differences between cars produced in different countries, please check the size before buying.
Tips:
our cameras are Mechanical press plate, please check if your grip is electronic or mechanical, electronic press plate cannot buy this product. Thank you.
AHD1080P Camera
Analog High Definition Technologie
170° Wide Angle
Fisheye Lens - Real 170°
Top Starlight Night Vision
Starlight night vision function allows the camera to be used properly even at night.
Support Waterproof
The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions
Pure Copper 6m Video Cable
Compared to copper-clad aluminium cables, data is transmitted in pure copper cables with less signal loss.
Integrated Step-down Module
Support DC12V 24V,
Low power consumption, cable never hot, reduce fire risk.
Tips, About AHD Style: Adjustment to AHD signal via monitor settings is required before mounting the camera
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

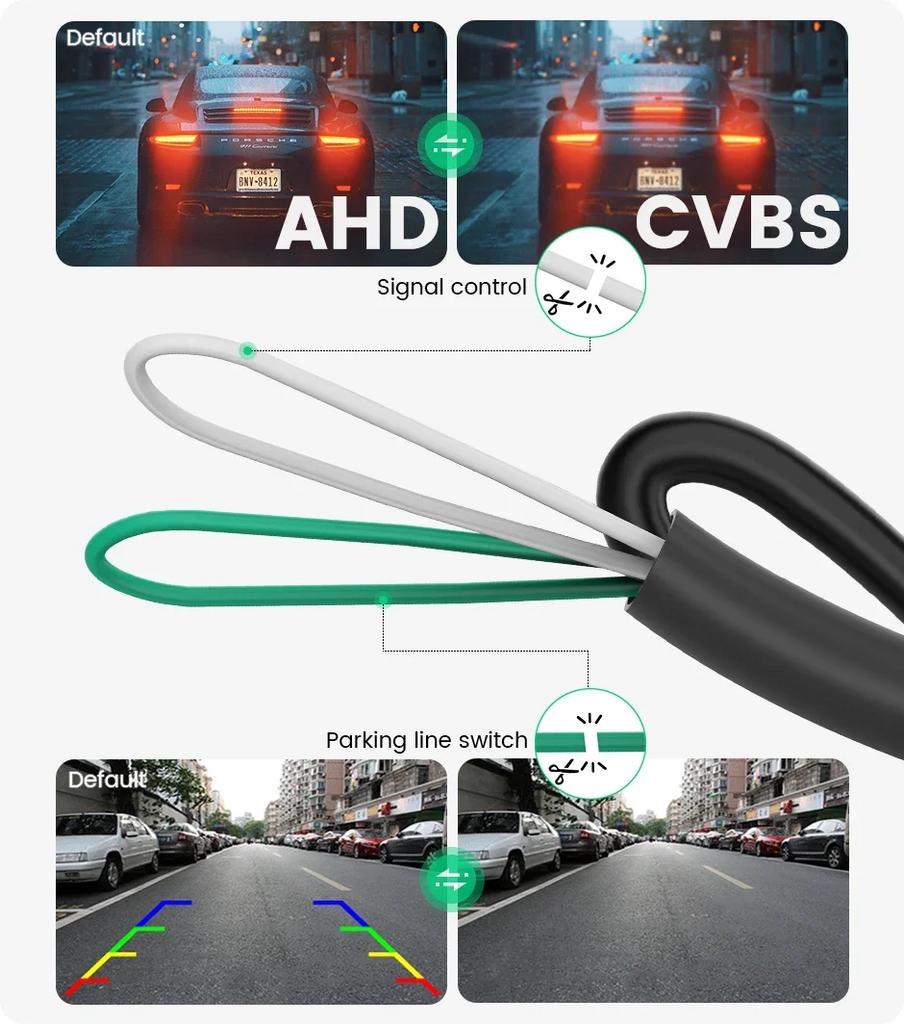

If your monitor don't support AHD signal, please cut the white wire and change to CVBS signal.
If you don't need camera parking line, please cut the green wire.
Tips: our cameras are Mechanical press plate, please check if your grip is electronic or mechanical, electronic press plate cannot buy this product. Thank you.
