【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
【Innovative and Cutting-Edge Technology Product】- URayTech Video Stream Decoder is highly suitable for decoding various kinds of IP video stream addresses, and supports decoding multiple brands of video encoders, set-top boxes, IP cameras, etc.
【Easy Setup】--Enter the video stream address into the URayTech video decoder's control panel, and the decoder will automatically decode and display the output video signal on your monitor.
[Multi-Channel Video Stream Decoding] - Decode multiple video stream addresses simultaneously, and output and display them simultaneously. Up to four video stream addresses can be decoded and output simultaneously.
【Supports Multiple Video Streaming Protocols】- Supports decoding streaming protocols such as HTTP(S), RTSP, RTMP, SRT, HLS(M3U8), UDP, RTP, Multicast, Unitcast, FLV, ONVIF, etc.
【4K Ultra HD Video Resolution】- Supports 4K Ultra HD resolution input and output. Output video resolution can be adjusted up to 3840x2160P.
【Lifetime Free Technical Support and Service】- All URayTech video encoders and decoders come with lifetime free technical support and warranty. We also provide various customization services, such as printing shell patterns, adding control panel logos, and developing firmware and hardware functions.
Product Features:
1. Web control interface, support WAN remote operation and system upgrade.
2. H.265, H.264, MJPEG video decoding.
3. AAC, AAC+, AAC++, AC3, MP3, MP2, G.711 audio decoding.
4. Supports decoding HTTPS, UDP, RTP, RTSP, RTMP, SRT, HLS (M3U8), FLV, ONVIF, MP4 and other video stream addresses.
5. Up to four video stream addresses can be decoded simultaneously and displayed on one display.
6. Supports decoding of various brands of video encoders, set-top boxes, IP cameras and other devices.
7. Supports input and output up to 3840x2160, and the output resolution can be adjusted.

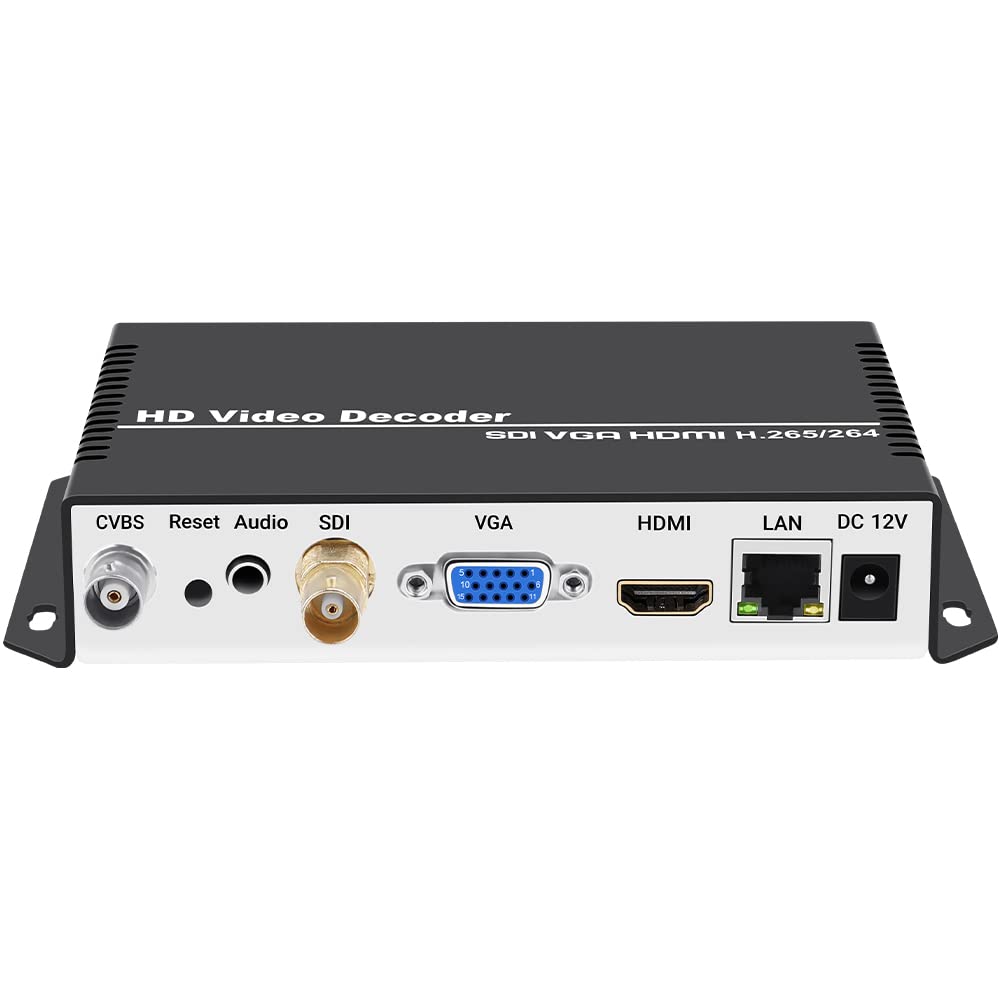

8. Supports simultaneous output of SDI, HDMI, CVBS, VGA video interfaces.
9. You can now select audio from Stream 1 to Stream 4 as output audio.
10. Support display video settings for color, brightness, contrast, saturation and hue.
11. You can add logo, text and scrolling text to the display video.
12. 6 display layouts switchable: 1P (single channel), 4P (2x2), 4P (3 left and 1 right), 4P (1 left and 3 right), 4P (3 top and 1 bottom), 4P (1 top and 3 bottom).
13. When there is no decoding signal, you can customize the display screen.
14. The device can be upgraded by uploading firmware through the web control backend.
15. High-performance chips ensure stability and efficiency, supporting 24/7 operation.
16. Free lifetime warranty and technical support. Product parameters:
1. Video.
Output: SDI x 1, HDMI x 1, CVBS x 1, VGA x 1
Video Resolution: Supports input and output up to 3840x2160
Video Frame Rate: For 4K, the maximum supported frame rate is 30 frames. For 2K and below, the maximum supported frame rate is 60 frames.
Video Decode: H.265, H.264, MJPEG
Display layout: 1P (single channel), 4P (2x2), 4P (3 left and 1 right), 4P (1 left and 3 right), 4P (3 top and 1 bottom), 4P (1 top and 3 bottom)2. Audio.
Output: SDI audio, HDMI audio, Line out audio (3.5mm jack)
Audio Decode: AAC, AAC+, AAC++, AC3, MP3, MP2, G.711
Audio Source: Selectable from Stream 1 to Stream 4 3. System.
Ethernet port: 1000Mbps
Streaming protocols: HTTPS, UDP, RTP, RTSP, RTMP, SRT, HLS (M3U8), FLV, ONVIF, MP4, etc.
Control Panel: Web control interface, supports WAN remote operation
Power supply: 12V 1A power supply
