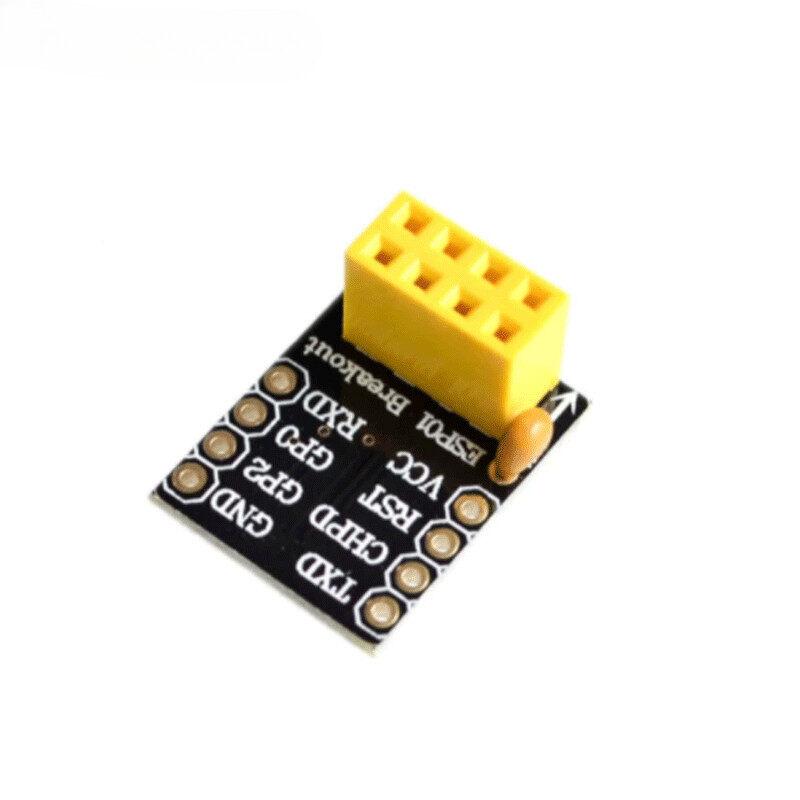

This is the breadboard adapter of the common ESP-01 model for the ESP8266 serial to WiFi transceiver module.

Because the ESP-01 pin arrangement is not breadboard friendly and has no labels, this makes it not convenient for fast prototyping.This breadboard adapter will help you do it

It is easier to use the ESP-01 module prototype.

This breakout conveniently provides a clear lead line on top for silkscreen printing and will fit nicely into your preferred breadboard.

Last but not least, we added a 0.1μF decoupling capacitor, so the ESP-01 will always run smoothly and without obstruction.

Connection:

URAT adapter

3.3 V to VCC

3.3 V CH - PD

TX RX

RX TX

Select NL CR 15200 baud rate

Board size: 18.9mm * 15.4mm

Package includes:

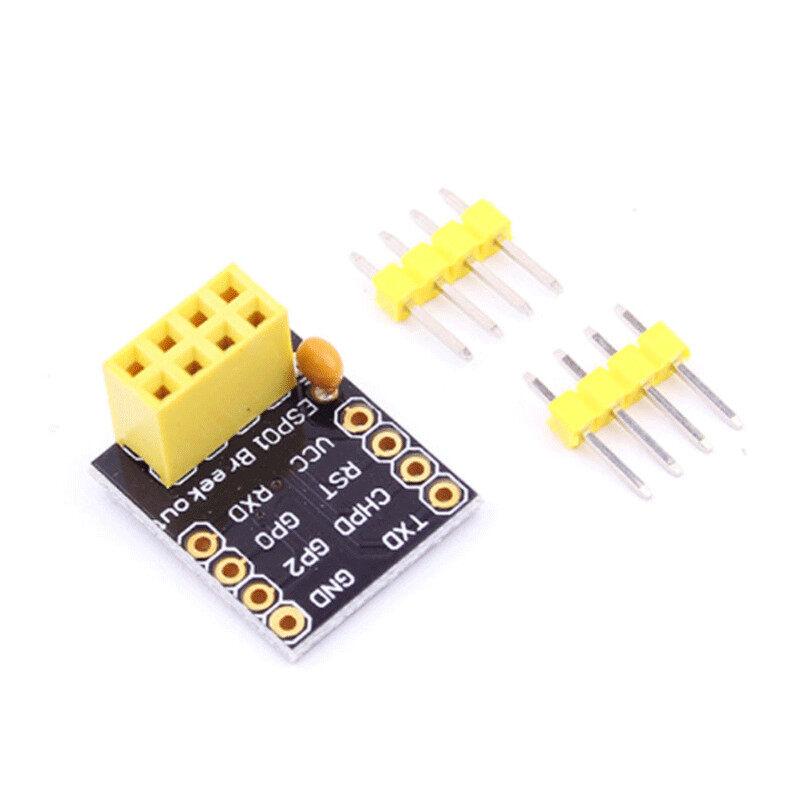

1 X ESP-01 Distribution Board Breadboard Adapter

2 X 4P male connector
