EITAI Electric Meter Earth Resistance Meter Manufacturer Direct Sales Insulation Resistance Meter Clamp Meter Earth Resistance Ground Voltage

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

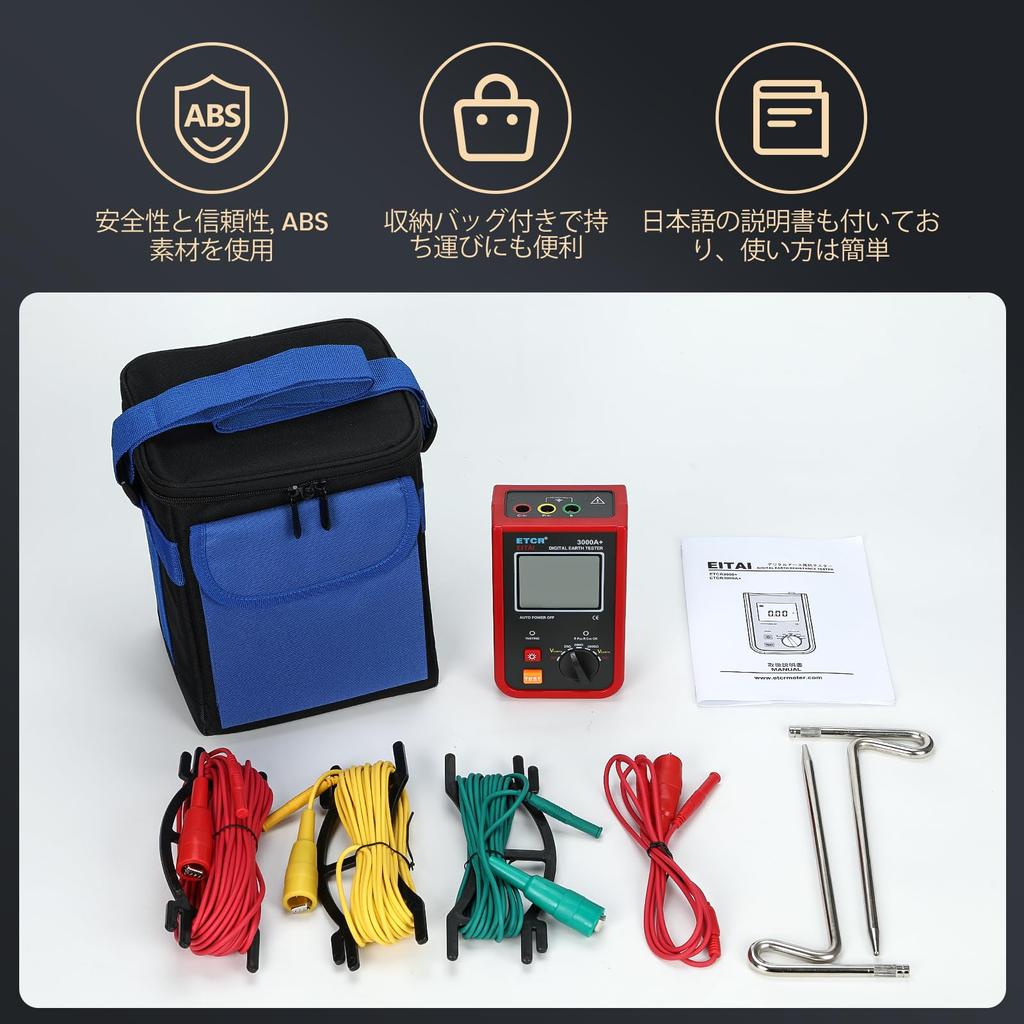

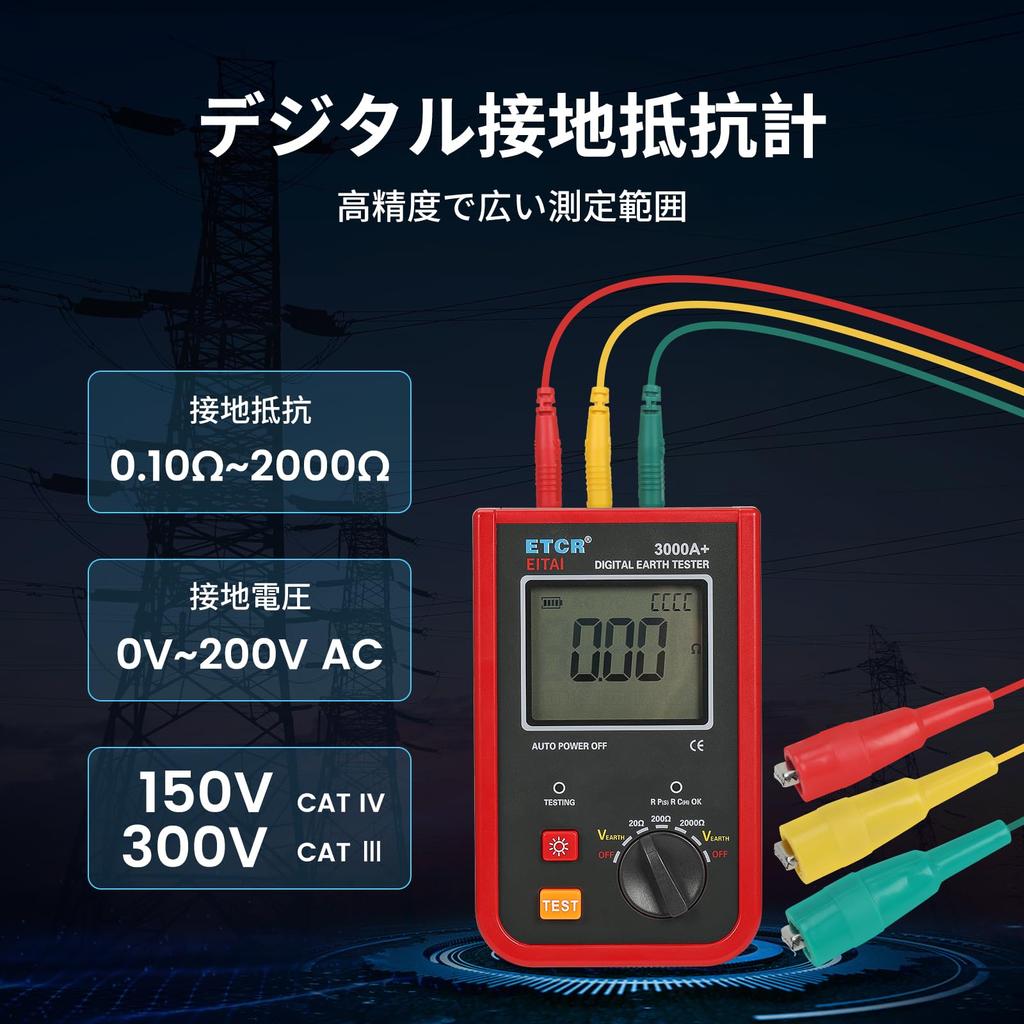

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Comes with Japanese customer technical support and a Japanese instruction manual for safe operation. [Ultra Precise Earth Resistance Measurement] ETCR3000A+ earth resistance meter can measure the range from 0.10Ω to 2000Ω with a resolution of 0.01Ω, making it ideal for critical systems with low resistance. It also accurately measures AC voltages up to 200V with 1V resolution. This equipment is equipped with excellent anti-interference design, ensuring stable performance even under difficult environments. [Automatic Wire Resistance Correction] Our new technology corrects errors caused by poor test lead contacts or extension cords, ensuring high accuracy in field measurements. [Auxiliary ground rod determination] The earth tester is equipped with an auxiliary earth rod determination function, which improves the accuracy of ground resistance measurements on site. [Lightweight and field applicable design] The earth resistance meter is only 470g, and the compact main unit is easy to carry. User-friendly and intuitive operation thanks to the top-mounted interface, vertical hand-held format, and easy rotation knob. 【Durable for Industrial Work】Made of ABS material, the ground resistance meter is durable and moisture-proof, and the device features a backlit LCD display that is easy to read under all light conditions, ensuring reliable performance even in difficult environments. specification: Model: ETCR3000A+ Earth resistance meter Earth resistance: Range: 0.10Ω to 20Ω, Resolution: 0.01Ω Range: 0.1Ω to 200Ω, Resolution: 0.1Ω Range: 1Ω to 2000Ω, Resolution: 1Ω Earth voltage: Range: AC0V to 200V, Resolution: 1V Seed: ±2%rdg±3dgt Power supply: DC9V (6 alkaline batteries LR6 1.5V) Backlight: Adjustable brightness for use in dimly lit areas Measurement mode: high precision 3-wire measurement, simple 2-wire measurement Measurement method: Earth resistance: rated current variable pole, measurement current 20mA Max; Voltage: RMS collection Test frequency: 128Hz Test current: ＞20mA (sine wave) Auxiliary pile determination: Avoid errors caused by excessive grounding resistance of auxiliary grounding electrodes. Circuit resistance calibration: Avoid errors caused by the test cable not being fully inserted into the equipment connection port, poor contact, or the user replacing the test cable extension, etc. Body size: 160mm x 100mm x 66mm Test line: 3 strips: 1 each of red 15m, yellow 10m, green 5m Simple test line: Red 1.5m Auxiliary grounding rod: 2 pieces: φ9mm x 230mm Measurement time: Voltage to ground: approx. 2 times/sec Ground resistance: about 15 seconds/times Number of measurements: 5000 times or more (20Ω gear measurement 10Ω, stop for 30 seconds after one measurement and measure again) Circuit voltage: Voltage to ground measurement: Measurement at AC200V or less Working current: Backlight: 56mA Max Standby: 20mA Max (backlight off) Measurement: 200mA Max (backlight off) Body weight: Body: Approx. 470g (including battery) Total weight: Approx. 2000g (including accessories) Working temperature and humidity: -10℃~40℃, 80%RH or less Storage temperature and humidity: -20°C to 60°C, 70% rh or less Overload protection: Earth resistance measurement: AC280V/3 seconds between E-P and E-C ports Insulation resistance: 10MΩ or more (500V between circuit and housing) Voltage resistance: AC 3700V/rms (between circuit and enclosure) Electromagnetic properties: IEC61010-4-3, radio frequency EMF ≤ 1V/m Product safety standards: IEC61010-1, IEC1010-2-31, IEC61557-1, pollution class 2, CAT III 300V accessories: 1*Earth resistance meter 1*Tool kit 1*Auxiliary ground rod 1*test cable 1*Simple test lead 1*Japanese instruction manual *Due to import regulations and customs reasons, this product does not include batteries, so please prepare them in advance Note: The color of the actual product may differ from the photo due to light. There may be slight deviations in product measurements.
