Feature:
1. Professional Design: The RC brushless motor ESC combination features a 4 pole 12 slot high torque motor design to provide you with higher performance.
2. High Quality: RC brushless motor adopts CNC machined 6061 T6 aluminum alloy motor housing, which ensures good heat dissipation of the motor.
3. Waterproof Function: The RC brushless motor with program card kit has excellent waterproof performance, suitable for all conditions of competition, to help you win the first place.
4. With Programming Card: RC brushless motor with ESC kit comes with RC programming card, you can DIY programming ESC to improve playability.
5. Wide Application: RC brushless motor ESC combo kit is universal for 18, 110 RC cars, with excellent stability and high efficiency, bringing you more convenience.
Specification:
Item Type: RC Brushless Motor ESC Combo
Motor Parameters
Color: Red
Material: Aluminum Alloy
Size: Approx. 36x50mm1.4x2.0in (excluding cables and shafts)
KV Value: 4300kv
Maximum Speed: 60000
Maximum Voltage: <8.4V
Maximum Ampere: 100A
Rotor Poles Quantity: 4
Power: 850W
Shaft Length: Approx. 15mm0.6in
Shaft Diameter: Approx. 3mm0.12in
Connector: 4mm Golden Banana Head
ESC Parameters
Continuous Current: 60A
Peak Current: 320A
Recommended Battery: 24S Lipo (NOT included)
BEC Output: 6.0V5A
Servo Parameters
Size: Approx. 40x20x40.5mm1.57x0.79x1.59in
Operating Voltage: 4.87.4 DC Volts
Dead Band: 3mus
Motor Type: DC Motor
Gear Type: Copper and Aluminum
Working Frequency: 50333Hz
Working Stroke: 180 Degrees (PWM 5002500mus) or 270deg (PWM 5002500mus)
Programming Card Parameters
Colour: Black
Material: Plastic
Low Voltage Cutoff: 3.7V3.6V3.5V3.4V3.3V3.2V3.1V3.0V2.9V2.8V2.7V2.6V
Start Mode: Medium Soft Strong
Maximum Braking Force: 50percent , 25percent , 75percent , 100percent (25A, 35A, 45A, 60A)
25percent , 50percent , 75percent , 100percent (80A, 120A)
Maximum Reverse Force: 25percent , 50percent , 75percent , 100percent
Neutral Range: 9percent , 6percent , 12percent working condition
Application: 18 110 remote control car universal.
Package List:

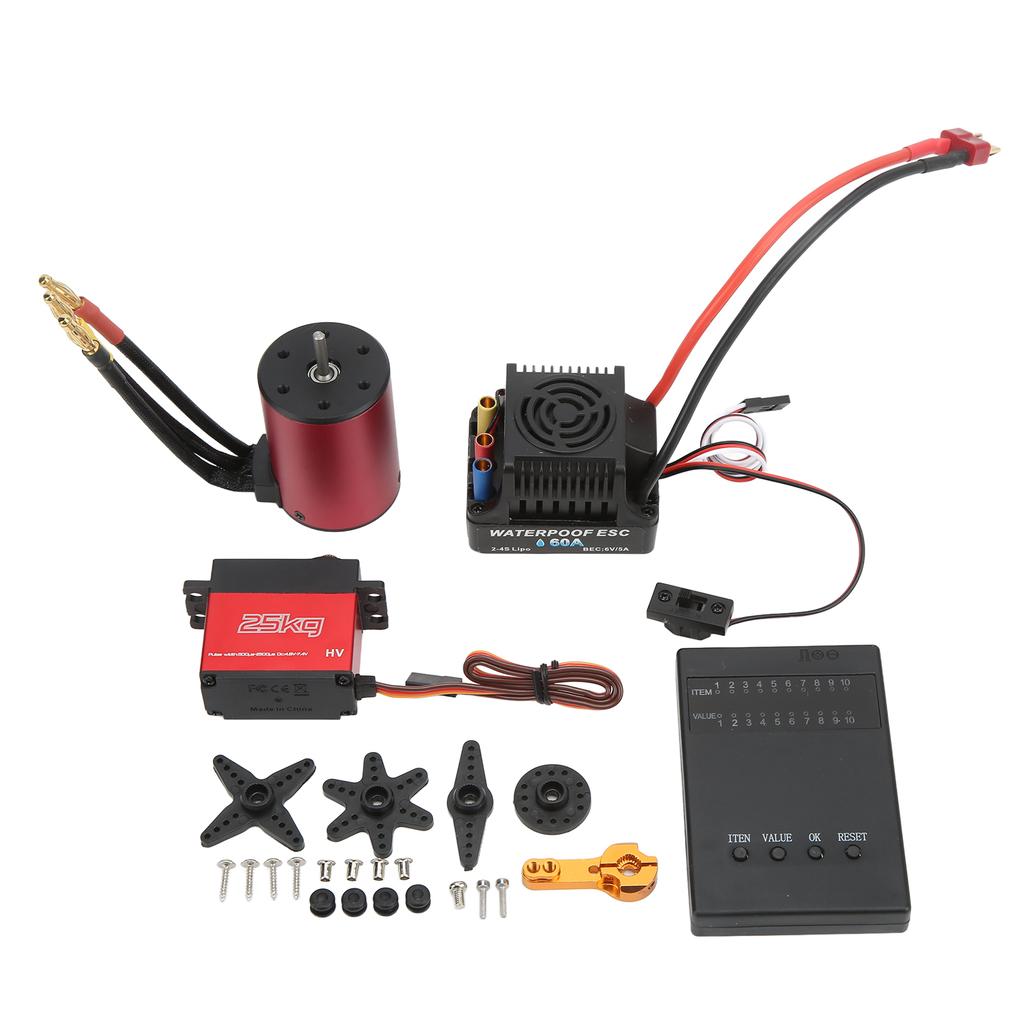

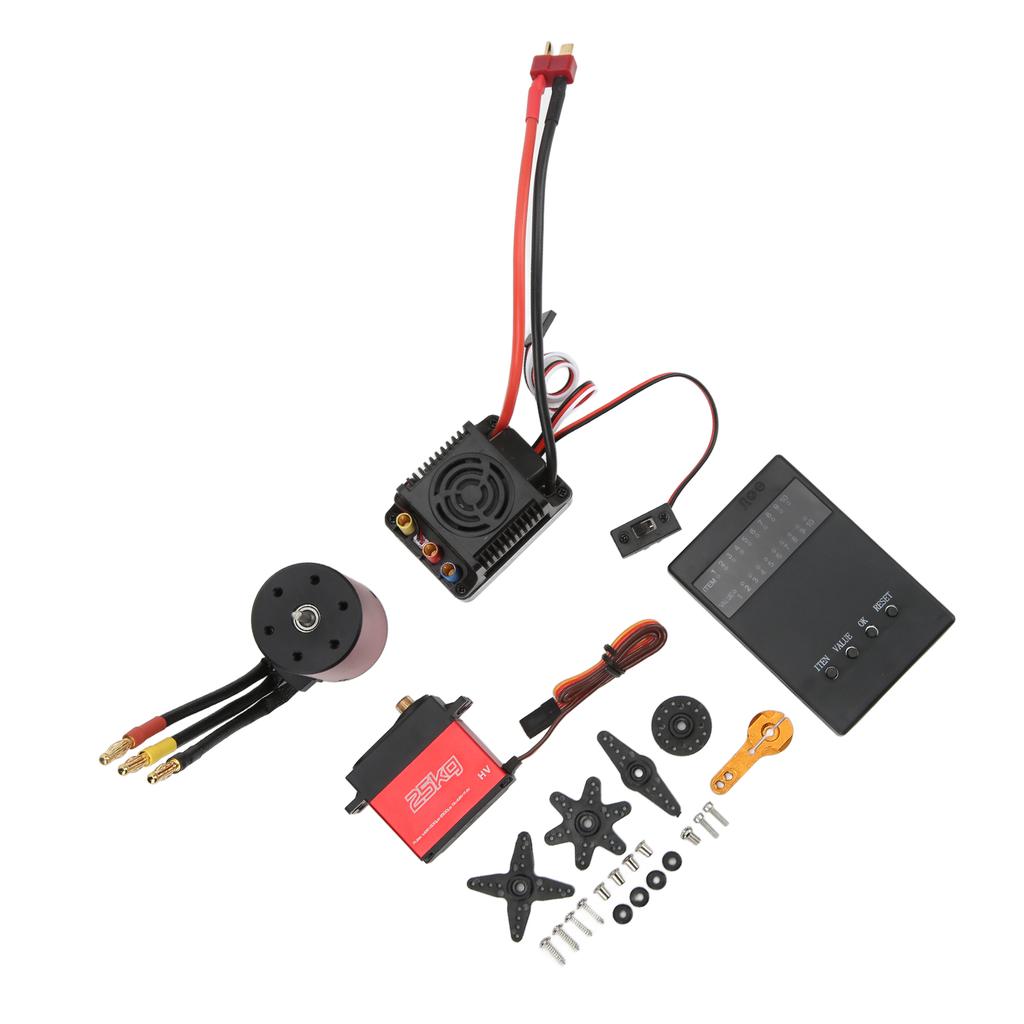

1 x Motor1 x ESC1 x Programming Card1 x Servo4 x Plastic Servo Arm1 x Metal Servo Arm7 x Screw4 x Rubber Shock Absorption4 x Screw Barrel1 x ManualProfessional Design: The RC brushless motor ESC combination features a 4 pole 12 slot high torque motor design to provide you with higher performance.
High Quality: RC brushless motor adopts CNC machined 6061 T6 aluminum alloy motor housing, which ensures good heat dissipation of the motor.
Waterproof Function: The RC brushless motor with program card kit has excellent waterproof performance, suitable for all conditions of competition, to help you win the first place.
With Programming Card: RC brushless motor with ESC kit comes with RC programming card, you can DIY programming ESC to improve playability.
Wide Application: RC brushless motor ESC combo kit is universal for 18, 110 RC cars, with excellent stability and high efficiency, bringing you more convenience.
