Features:
1.Product features are two main types of classification: the functions of temperature and humidity;
2.Function of temperature are as follows:
The automatic identification of work mode:
3.The system automatically according to the start/stop temperature, identify work mode;
Start temperature > stop temperature, cooling mode \"C\".
Start temperature < stop temperature, heating mode \"H\".
4.Cooling mode:
When the temperature≥Start temperature, relay conduction, red led on, refrigeration equipment begin to work;
When the temperature≤Stop temperature, relay disconnect, red led off, refrigeration equipment stop to work;
5.Heating mode:
When the temperature≤Start temperature,relay conduction, red led on,heating equipment begin to work;
When the temperature≥Stop temperature, relay disconnect, red led off, heating equipment stop to work;
6.Temperature correction function OFE (-10.0 ~ 10℃):
7.The system is working for a long time and may be biased, through this function correction, the actual temperature = measuring temperature + calibration value;
How to set up startup/Stop humidity:
1. In the running interface, long press\"RH+\"key3More than seconds, enter Starting humidity Set up the interface, the test can pass.RH+ RH-Key modifies parameters, waiting for parameters to be modified, waiting.6sAutomatically quit and save.
2. In the running interface, long press\"RH-\"key3More than seconds, enter Stop humidity Set up the interface, the test can pass.RH+ RH-Key modifies parameters, waiting for parameters to be modified, waiting.6sAutomatically quit and save.

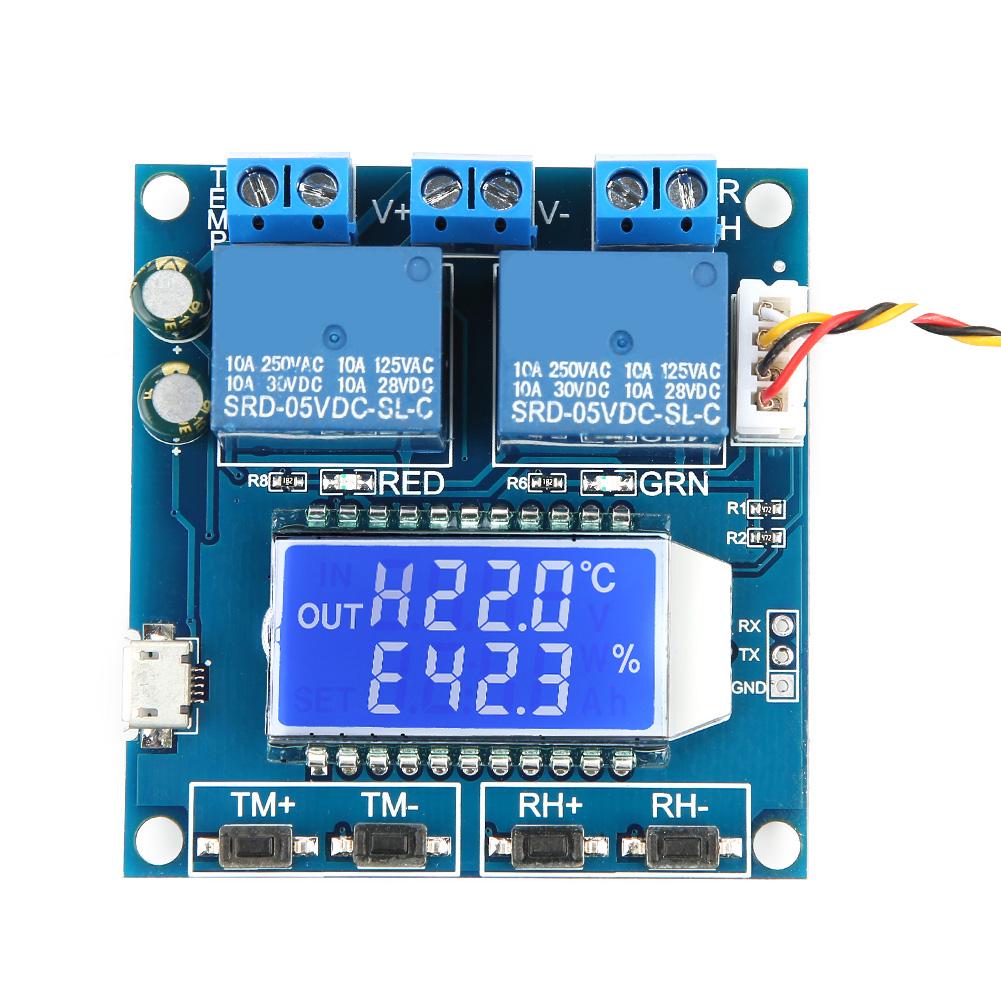

interface description:
The working mode shows that when the temperature is started/Humidity and stopping temperature/After the humidity and other parameters are set, the temperature is/The current mode will be displayed synchronously in front of humidity\"H/C\",\"E/d\");
Any relay is turned on, and the upper left corner of the interface is displayed\"OUT\"If the temperature relay is turned on, the temperature mode of the scintillation display is displayed.\"H/C\"As a reminder, if the humidity relay is turned on, the humidity mode will be displayed\"E/\"As a reminder.
Other functions:
1. Parameter remote reading/Set up:
Can pass through UART Set the starting temperature./Humidity and stopping temperature/Humidity and temperature/Humidity correction and other parameters.
2. temperature/Humidity real-time report:
If the temperature is turned on/Humidity reporting function. 1sThe interval will detect temperature./Humidity and relay status UART It is transmitted to the terminal for data collection.
3. Relay enable(Default opening):
If the relay is turned off, the relay remains in a state of disconnection.
How to modify temperature/Correction of humidity:
1. In the running interface,Double click\"TM+\"key Enter the correction value setting interface, downlink display correction value type, uplink display specific value;OFE Temperature correction value RH Humidity correction value)
2. By passing short Click\"TM\"Key, toggle the parameters to be modified, through RH+ RH-Key, modify specific value; support long press short press;
3. When the parameters are modified,Double click\"TM+\"The key is to exit the correction value and set up the interface and save the data.
How to open it/Turn off relay enable switch:
In the running interface, short press\"TM-\"Key, open or close temperature Relay enable(on: open up OFF: shut down)After returning to the operating interface, if the temperature relay is in a closed state, the temperature symbol & lsquo; & rsquo; flashes to indicate a warning.
In the running interface, short press\"RH-\"Key, open or close humidity Relay enable(on: open up OFF: shut down)After returning to the running interface, if the humidity relay is turned off, the humidity symbol\"%\"flicker, as a reminder.
Serial port control(single chip microcomputer)TTL Level communication)
Communication standard:9600bps Data bit :8
Stop position :1
Checkout bit :none
flow control :none
Temperature and humidity data upload format description:
Temperature format:Working mode(H/C),Temperature value, temperature relay state;
Humidity format:Working mode(E/D),Humidity value, humidity relay status;
H,20.5Centigrade,CL :Heating mode, current temperature20.5The temperature relay is disconnected.
D,50.4%,OP:Dehumidification mode, current humidity50.4%The humidity relay is in the state of suction.
Specification:

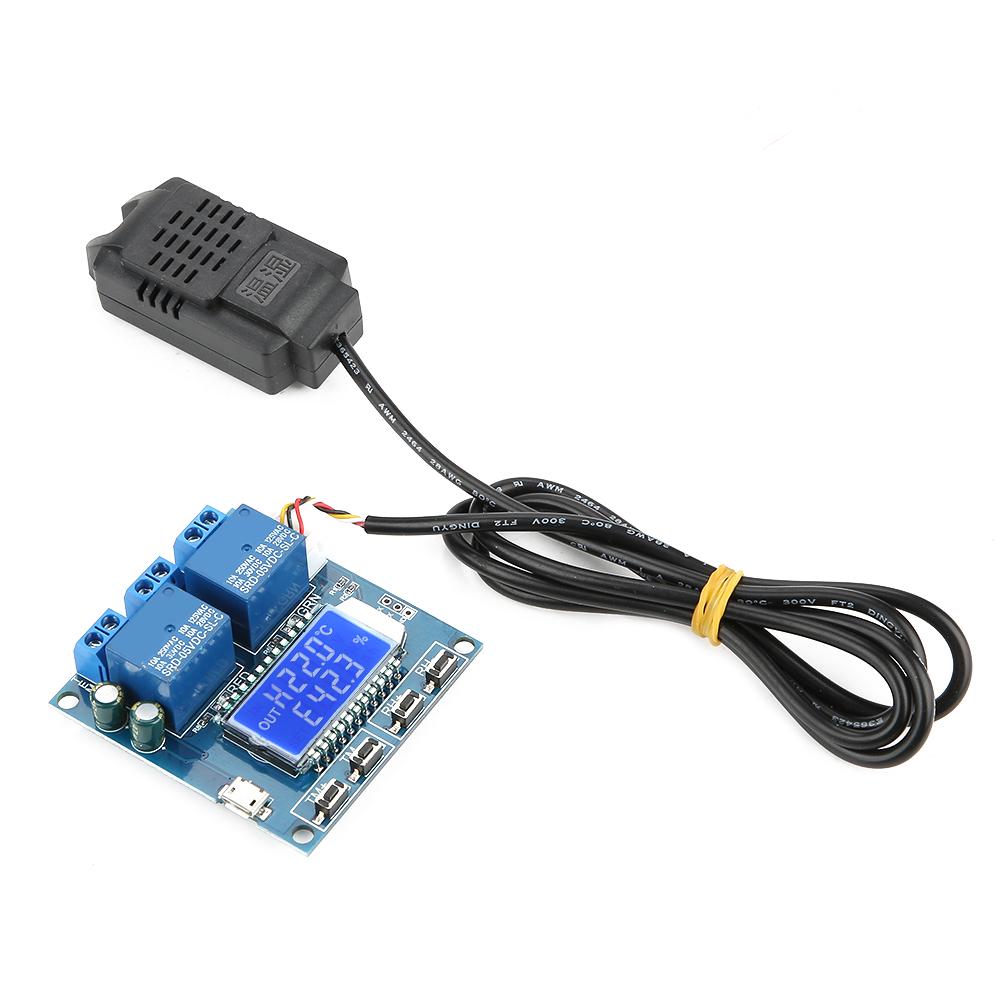

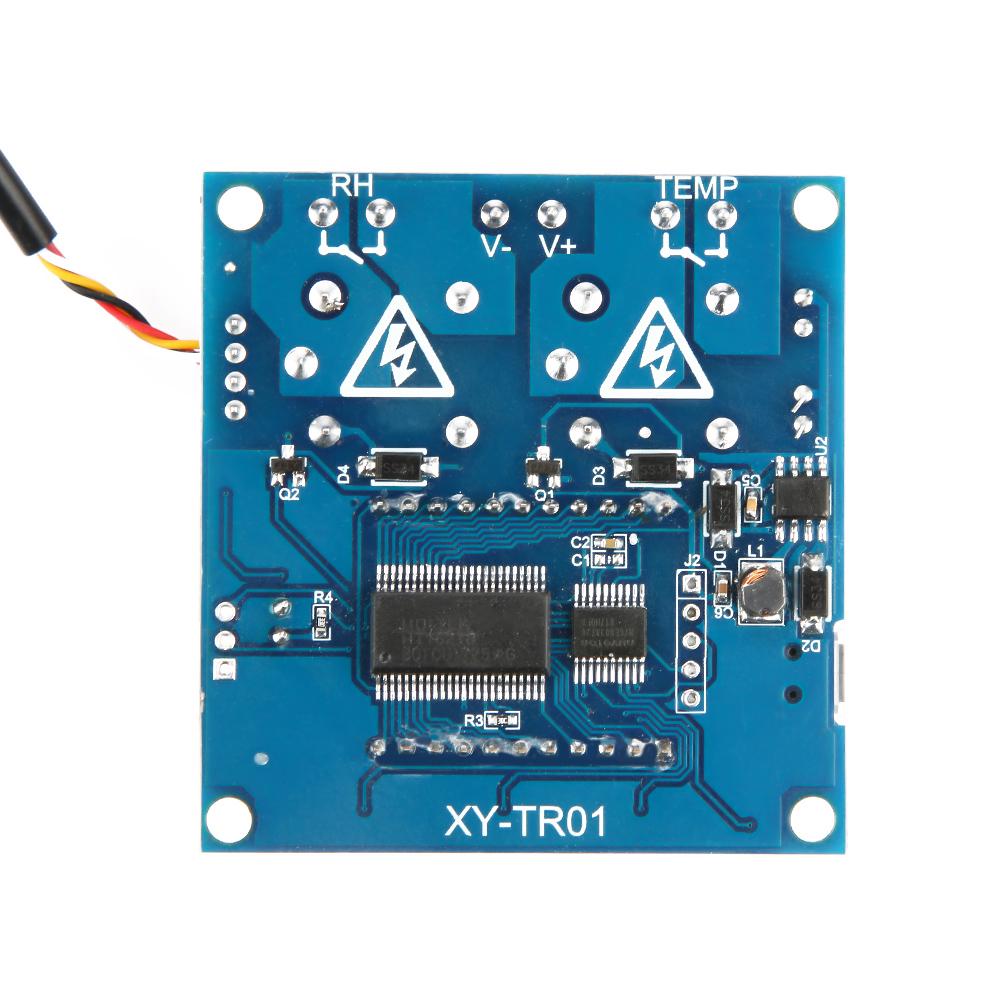

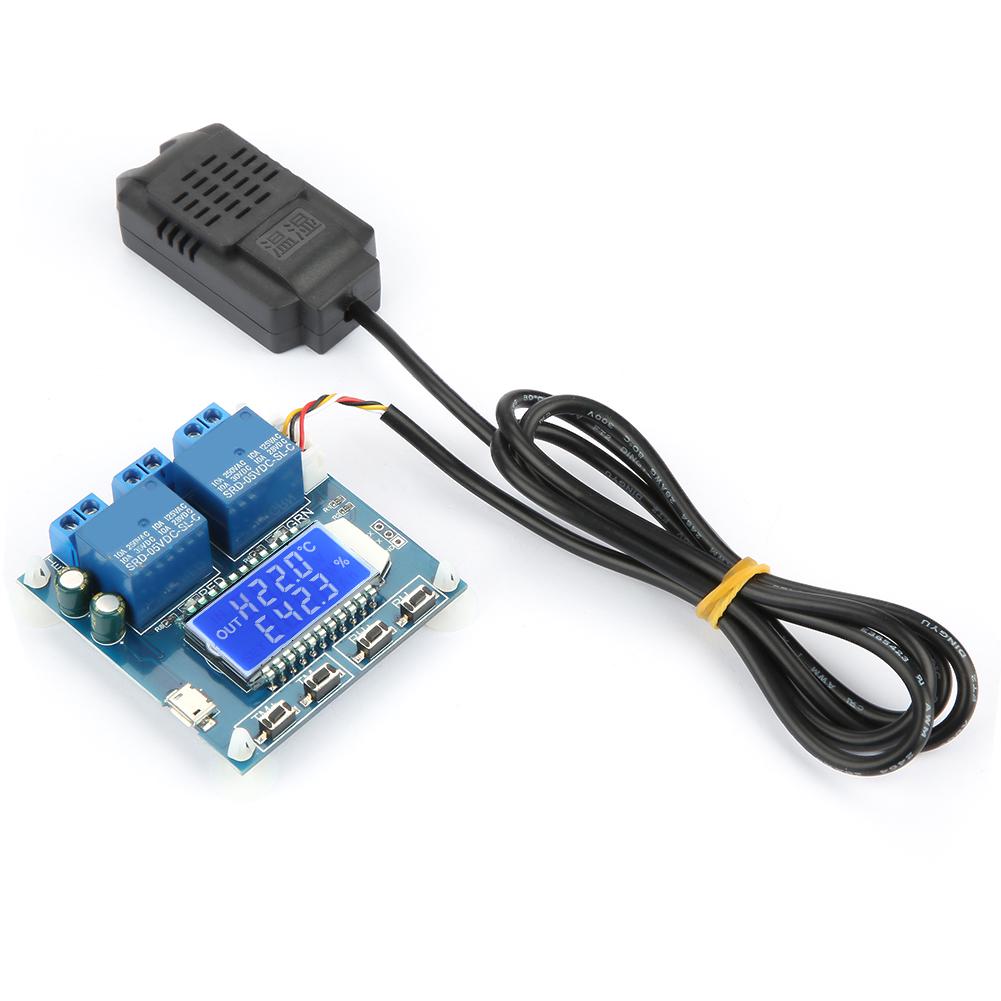

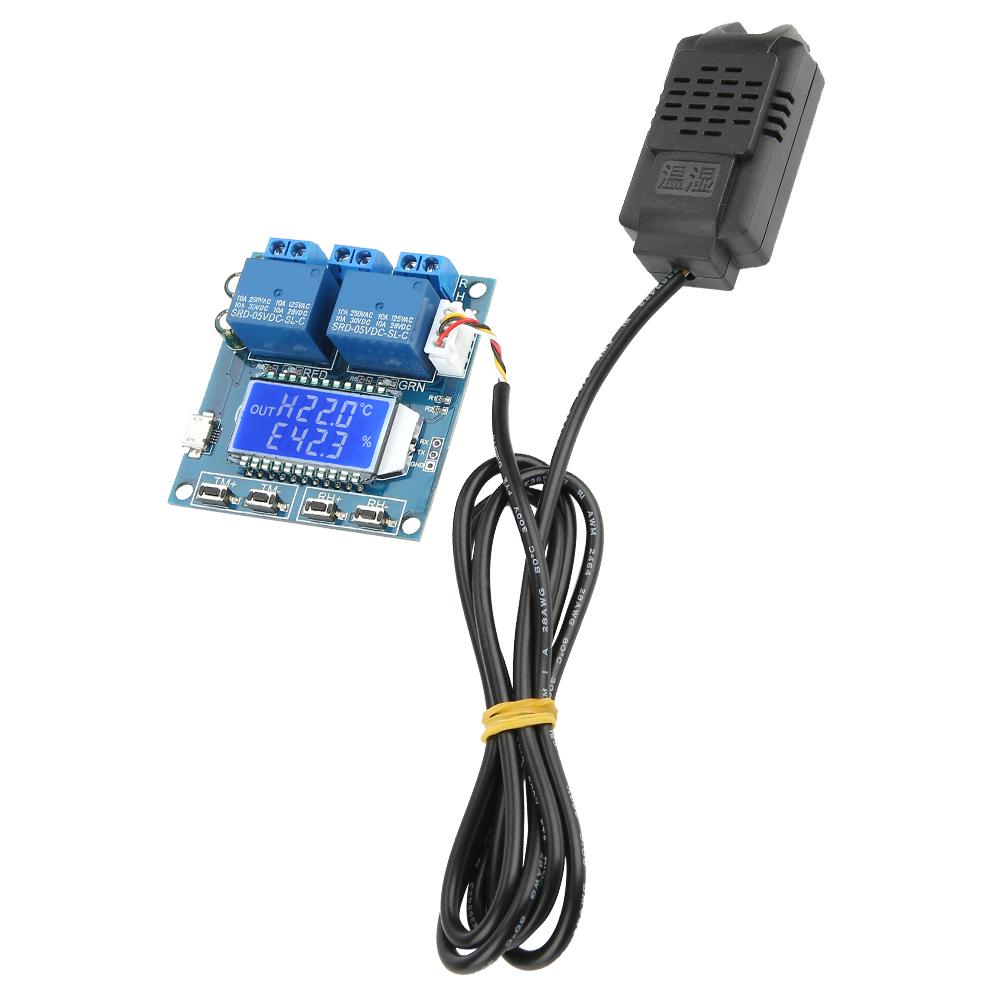

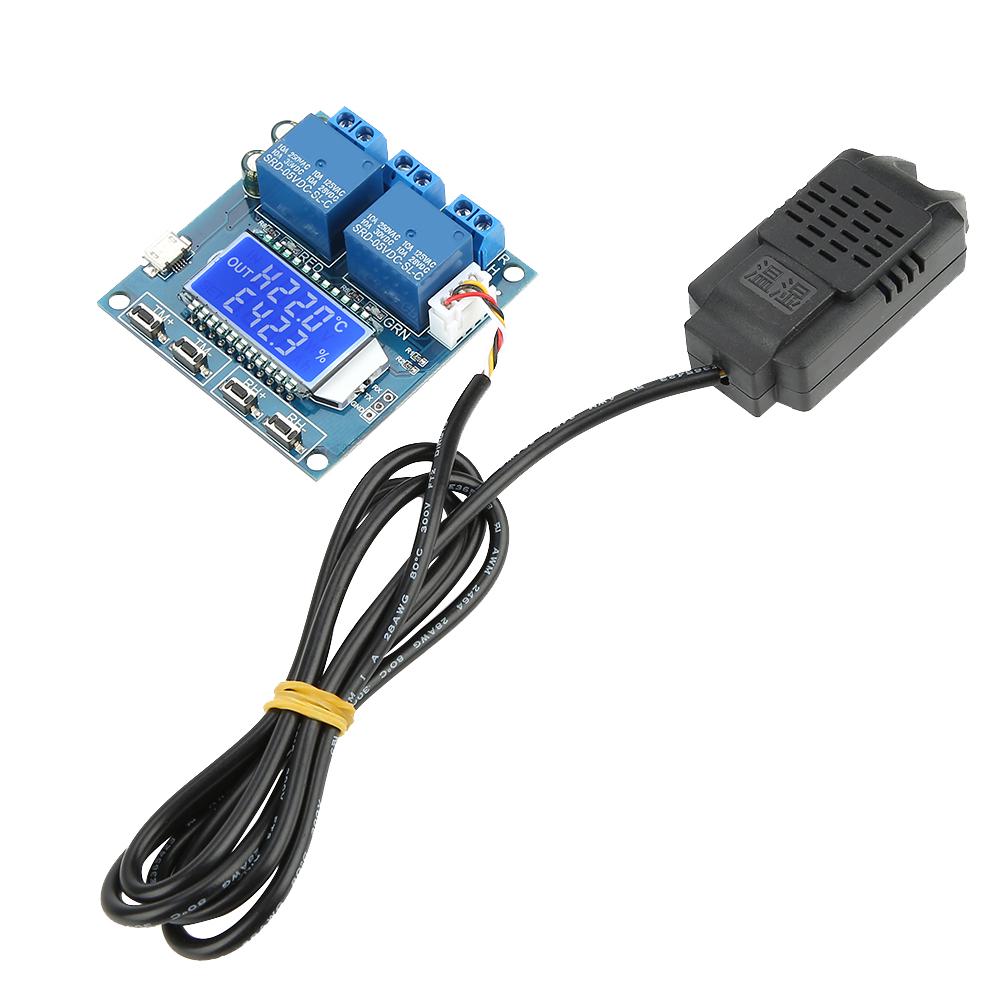

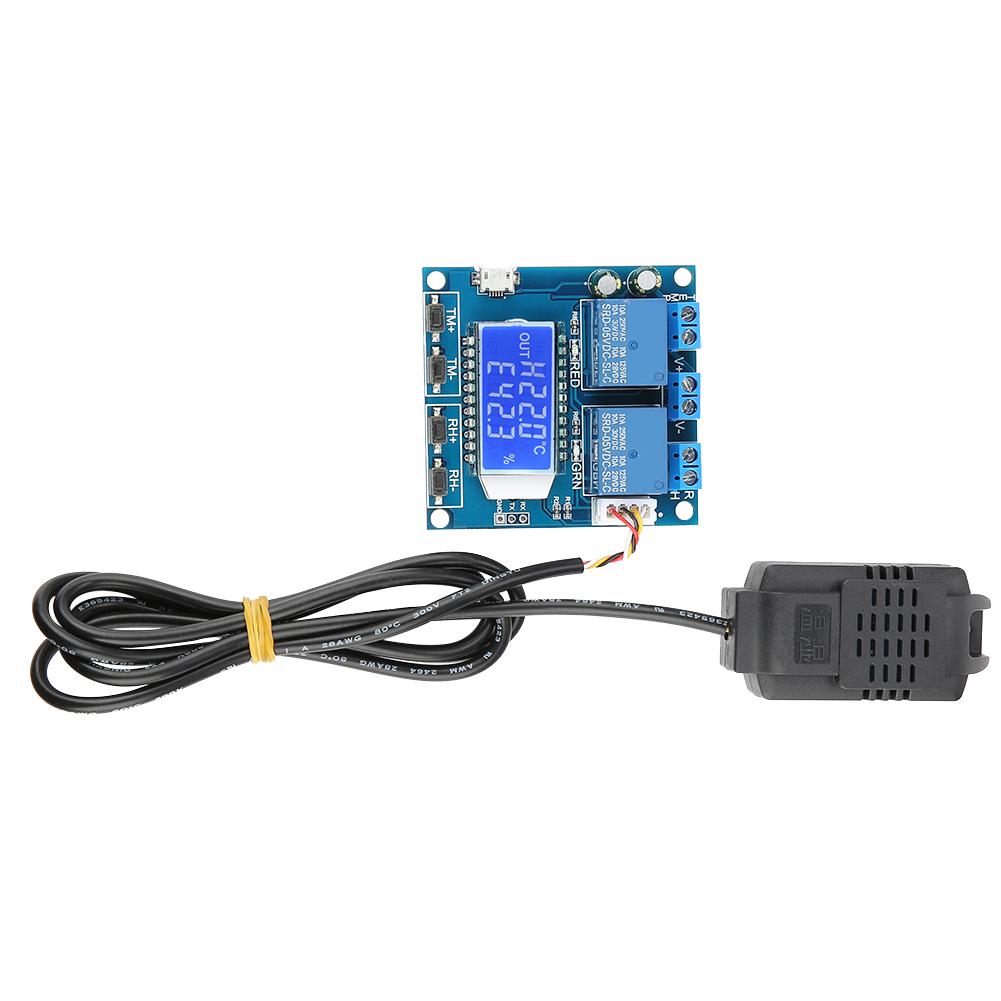

Model:XY-TR01
Temperature range: -20~60℃
Humidity range: 00%-100%

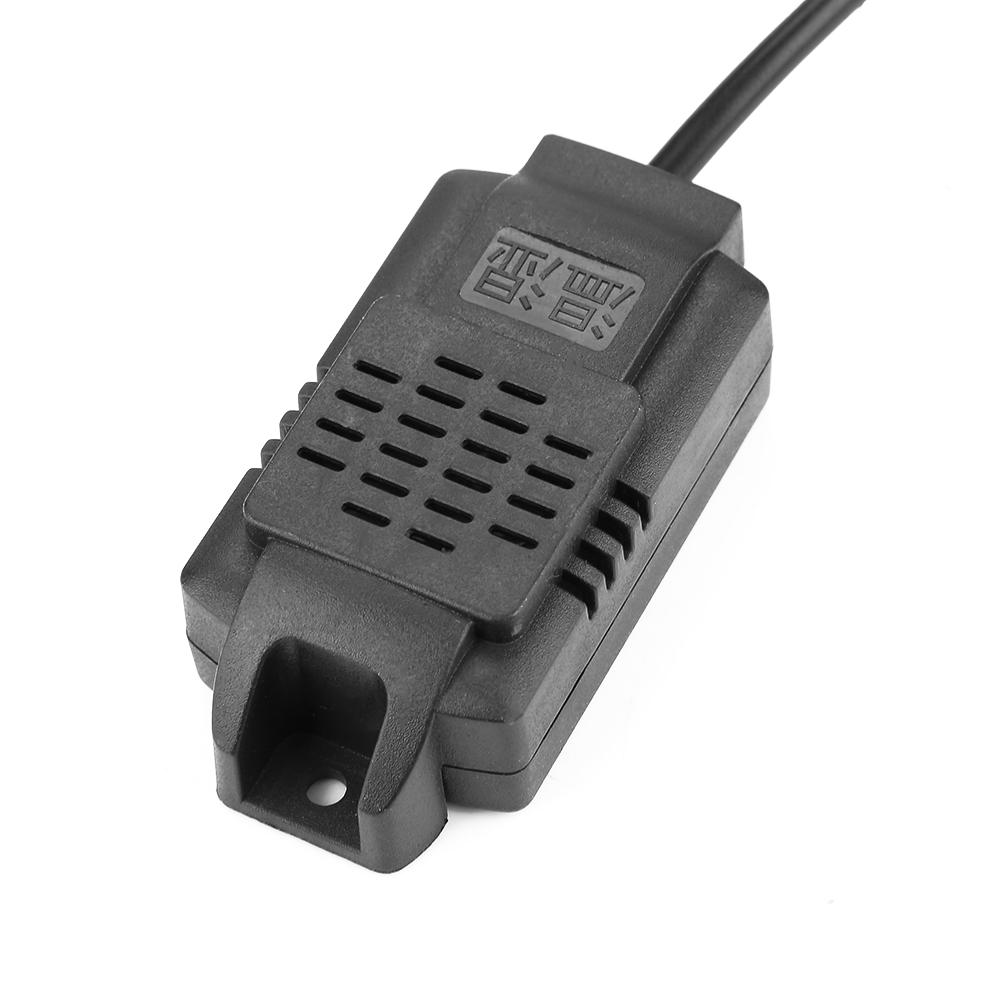

Control probe: integrated sensor
Output type: relay output
Size: 57*60*20mm/2.2*2.4*0.8in
Weight: Approx.77g/2.7oz
Package list:
1 x
Temperature and humidity Module
