The Best Way to Power Your LED Lighting System Voltage Regulator DC 12V/24V to DC 5V 5A 25W Step Down Power Converter

Feature *Output anti-reverse connection protection: The positive and negative poles of the output are connected incorrectly, and the power module is not damaged. To prevent the wrong connection of positive and negative output, reduce the damage rate of the power supply. *Short-circuit protection: Under normal use, the converter output is short-circuited to the ground instantaneously, which will not cause damage to the power converter. *Overvoltage protection: The power supply is damaged, and the output is automatically disconnected. When the power supply is damaged, it can prevent the high-voltage direct breakdown of the electrical appliance and reduce the damage rate of the electrical appliance. *Overcurrent protection: The output current is greater than the set value, and the output voltage gradually decreases until the converter shuts down and has no output. *Over temperature protection: The working environment temperature of the converter can be -40-85℃, when the case temperature exceeds 85℃, the converter will automatically protect.

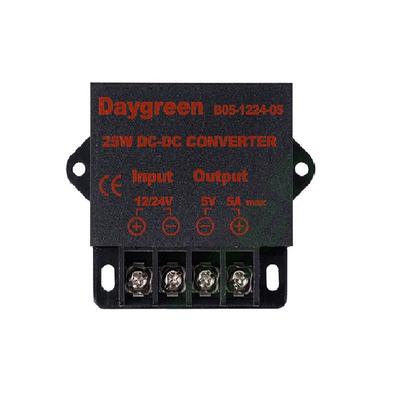

Specification Model: B05-1224-05 Efficiency: 95% Ripple: 50mVp Input voltage: 11-35VDC| Output power: 25W Output voltage: 5VDC Rated output current: 5A| No load current: 0.01A Work efficiency: 96 (%) Output Ripple Noise: 50 Voltage accuracy: ±1.5% Load regulation rate: ±0.2% Linear adjustment rate: ±0.2% Waterproof grade: IP68 Working temperature: -40~85℃ Product size: 63*53*20mm Product weight: 0.07kg

Packing list: 1*DC converter
