Power Filter Module Low Pass Filter Voltage Regulator Module Power Converter High Current Voltage 0‑

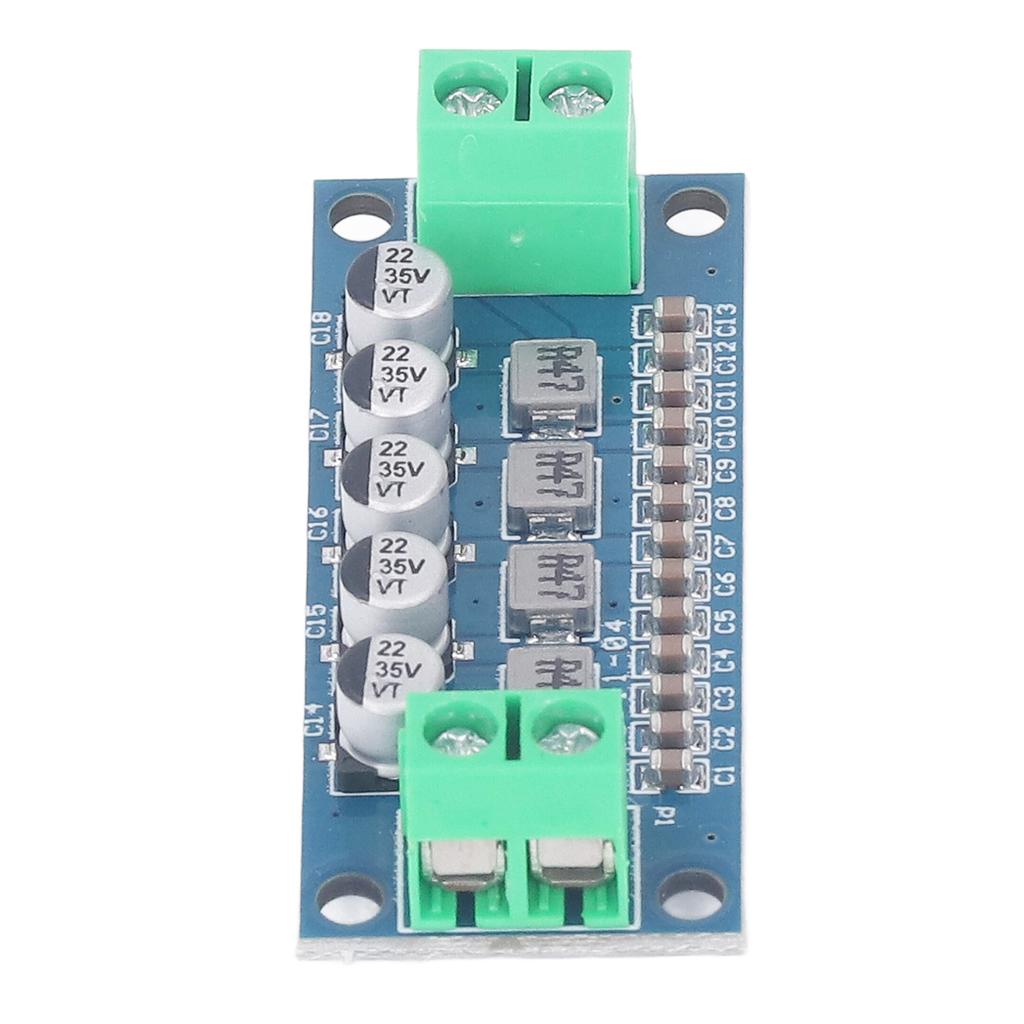

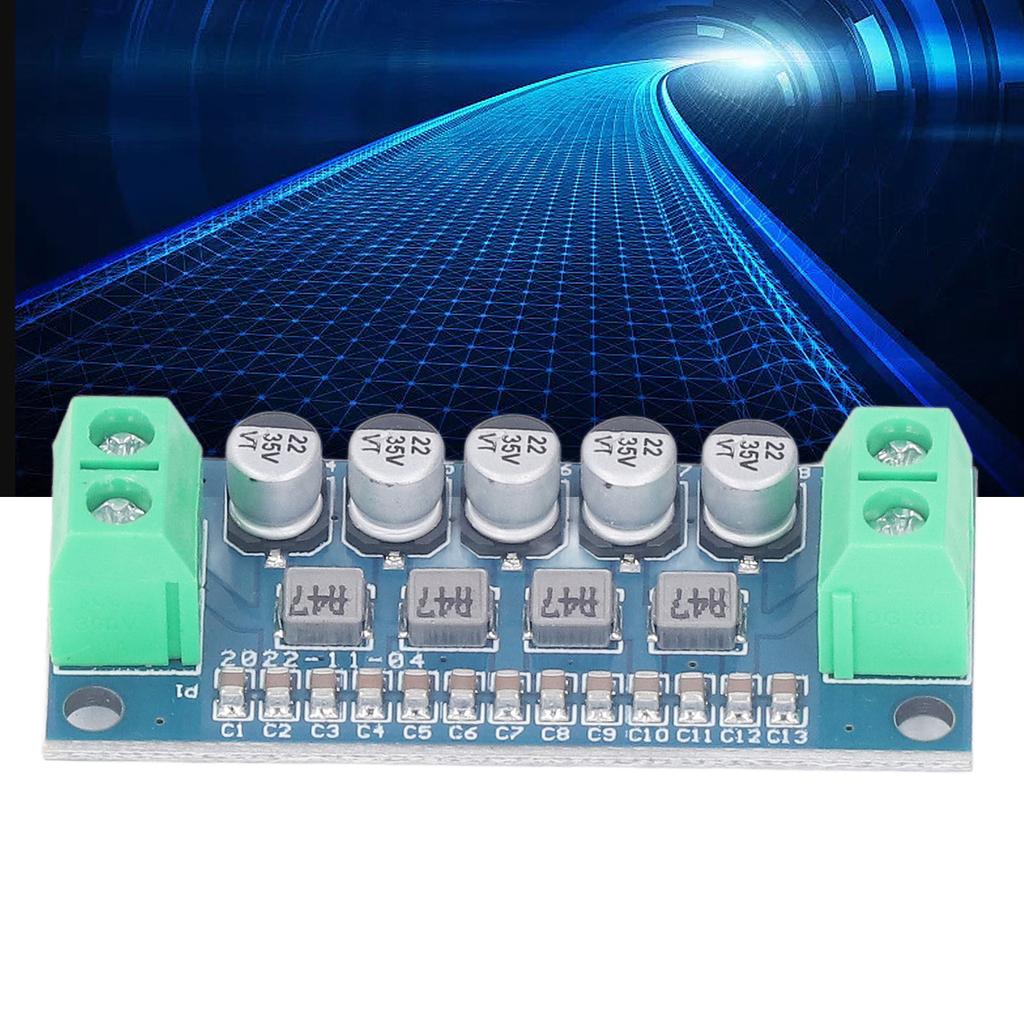

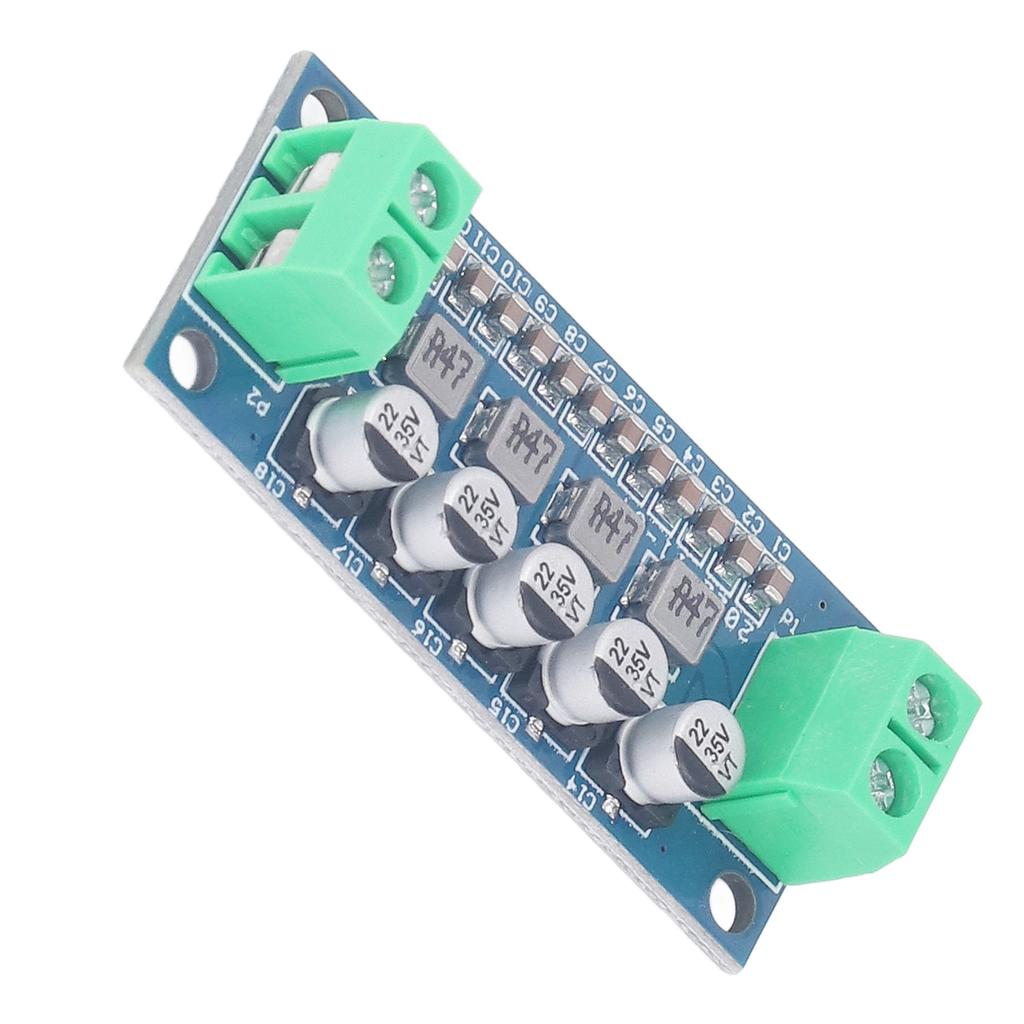

Feature: 1. Module Composition: This DC power filter module is a low pass filter module designed by combining inductors and capacitors. 2. Excellent Filtering Effect: The DC power filter module has an input and output current of up to 5A and a maximum withstand voltage of 35V, with excellent filtering effect in a compact size. 3. One Piece Power Inductor: This DC power filter module is a one piece power inductor with low dcr, high current, reliable SMD aluminium electrolytic capacitors and low ESR. 4. Reducing Power Supply Ripple: This DC power supply filter module is suitable for use in power supplies with large ripple, and can effectively reduce power supply ripple. 5. High Stability: This DC power filter module is made of PCB for robustness, high stability and long life. Specification: Item Type: Power Filter Module Material: PCB Input Voltage: DC0 to 35V Output Current: 0 to 5A Filtered Spurious Frequency Range: 100Hz to 100MHz Voltage Drop: <0.1V/A Spurious Wave Rejection: >60dB Operating Temperature: -20℃ to +50℃ Package List: 1 x Power Filter Module Note: Note the input and output directions of the wiring. The electrolytic capacitor is on top, the left side is the input side of the power supply and the right side is the output side. Placing the module on the output side of the power supply reduces ripple.
